MSI Z370 GAMING PRO CARBON User Manual

84
Software Description
MYSTICLIGHT
MYSTICLIGHT is an application allows you to control LED lights of MSI products.
Main Screen

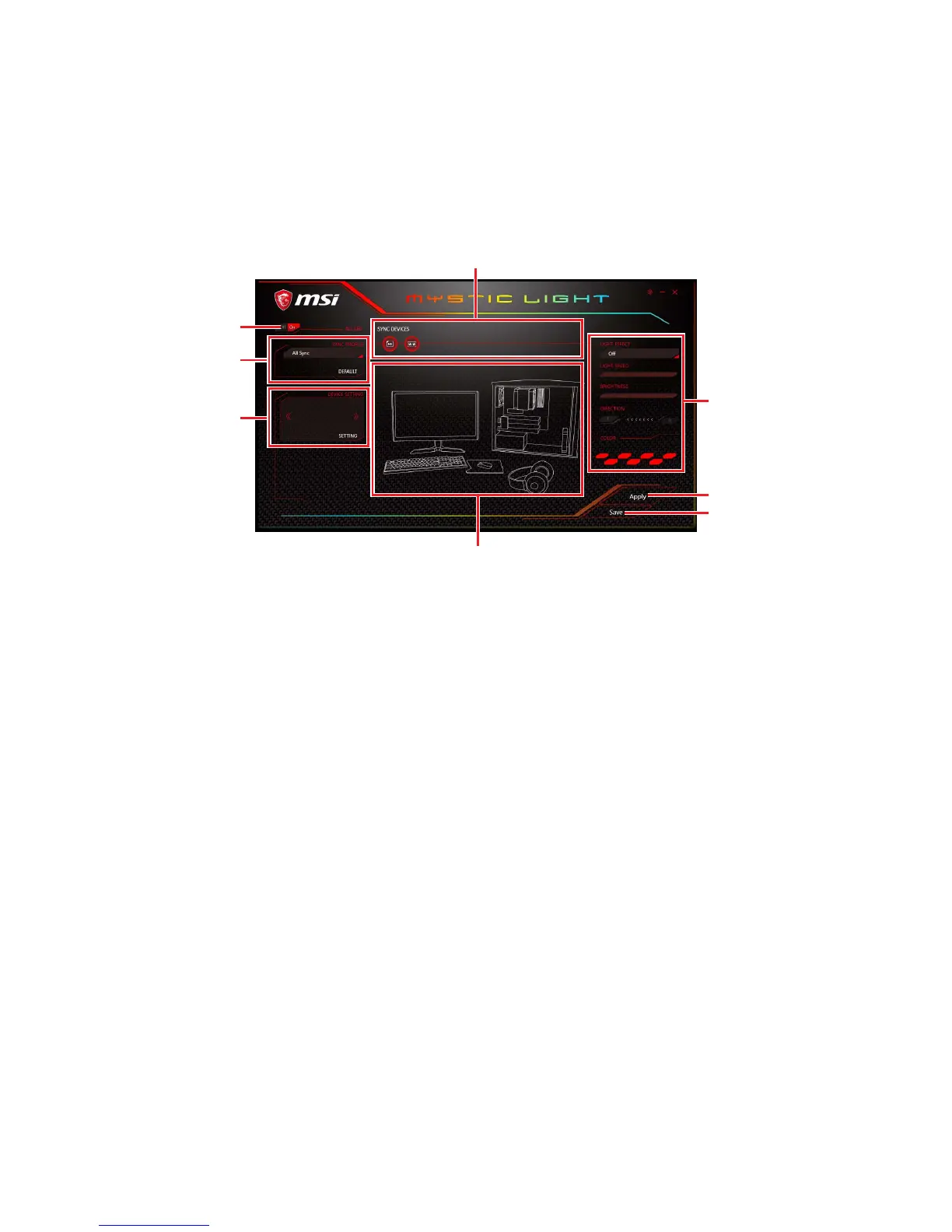

The Main screen is used to configure what devices need to be synchronized and LED
light effect options.
Light Effect
Options
ON/ OFF All LED
Sync Profile
Device Setting
Sync Devices
Live Preview
Apply Button
Save Button
y ON/OFF All LED - allows you to turn ON/ OFF all LED lights of sync devices.
y Sync Devices - allows you to select devices to sync by clicking the device's icon on
the Sync Device bar. The lighting effect of the sync devices will be controlled by the
main screen.
y Live Preview - gives you the full experience of your configuration’s look, feel while
you are editing it.
y Light Effect Options - allow you to customize lighting effect of the sync devices.
y Apply Button - applies lighting effect settings.
y Sync Profile - manages sets of sync device lighting effect settings.
 All Sync - all devices are synchronized to the main lighting effect settings.
 Individual - all devices lighting effects are applied to their respective settings.
 Profile01~03 - selected sync devices lighting effects are synchronized to the main
lighting effect settings.
y Save Button - saves sync device settings and lighting effect settings to the current
Sync Profile.
y Device Setting - switches to the other supported products.

MSI Z370 GAMING PRO CARBON Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 4000 MHz
Audio chip	Realtek ALC1220
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z370
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3
BIOS type	UEFI
Cables included	SATA
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	- mm
Width	243 mm
Height	304 mm
