MSI Z370 GAMING PRO CARBON User Manual

41
Overview of Components

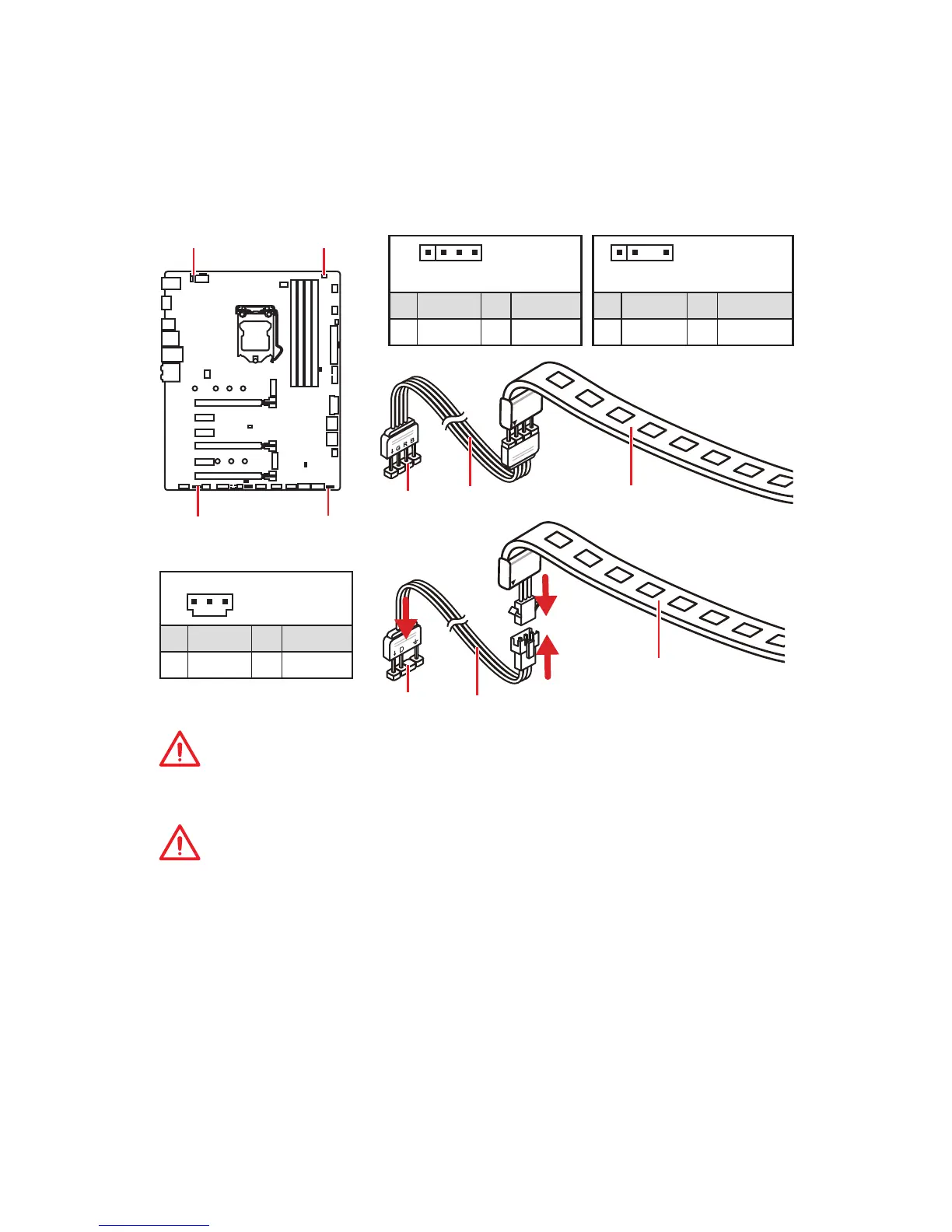

JRGB1, JRGB2, JRAINBOW1, JCORSAIR1: RGB LED connectors
The JRGB1/JRGB2 connector allows you to connect the 5050 RGB LED strips 12V. The
JRAINBOW1 connector allows you to connect the WS2812B Individually Addressable
RGB LED strips 5V. The JCORSAIR1 connector can be used to connect the CORSAIR
Individually Addressable RGB LED strips 5V or CORSAIR RGB LED fans, and control the
RGB effects with MSI’s software.
CAUTION
Do not connect the wrong type of LED strips. The JRGB1/JRGB2 connector and the
JRAINBOW1 connector provide different voltages, and connecting the 5V LED strip to
the JRGB1/JRGB2 connector will result in damage to the LED strip.
Important
y The JRGB1/JRGB2 connector supports 5050 RGB LED strips (12V/G/R/B) with the
maximum power rating of 3A (12V).
y The JRAINBOW1 connector supports WS2812B Individually Addressable RGB LED
strips (5V/Data/Ground) with the maximum power rating of 3A (5V).
y Please keeping the LED strip shorter than 2 meters to prevent dimming.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MSI’s software to control the extended LED strip.
1
1
JRGB1/
JRGB2
JRAINBOW1
JRGB1 JRAINBOW1
JRGB2 JCORSAIR1
Extension cable
Rainbow RGB LED
extension cable
5050 RGB LED strips 12V
WS2812B Individually
Addressable RGB LED strips 5V
1
JRGB1
JRGB2
1 +12V 2 G
3 R 4 B
1
JCORSAIR1
1 +5V 2 Data
3 Ground
1
JRAINBOW1
1 +5V 2 Data
3 No Pin 4 Ground

MSI Z370 GAMING PRO CARBON Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 4000 MHz
Audio chip	Realtek ALC1220
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z370
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3
BIOS type	UEFI
Cables included	SATA
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Number of SATA connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	- mm
Width	243 mm
Height	304 mm
