NEUTRAL ADJUSTMENT
1. Place the transmission in neutral. (The unit will
move freely when pushed forward and backward
with the parking brake released).
2. Loosen the bolt which secures the shift lever
assembly to the shift lever link. See figure 13.
3. Place the shift lever in the neutral slot. See figure
13.
4. Tighten the bolt to 13 foot pounds.
WHEEL ADJUSTMENT
The caster (forward slant of the king pin) and the
camber (tilt of the wheels out at the top) require no ad¬
justment. Automotive steering principles have been us¬
ed to determine the caster and camber on the tractor.
The front wheels should toe-in 1/8 inch.
To adjust the toe-in, follow these steps.
1. Remove the hex nut and lock washer, and drop
the tie rod end from the wheel bracket. See figure
14.
.2. Loosen the hex jam nut on tie rod.
3. Adjust the tie rod assembly for correct toe-in.

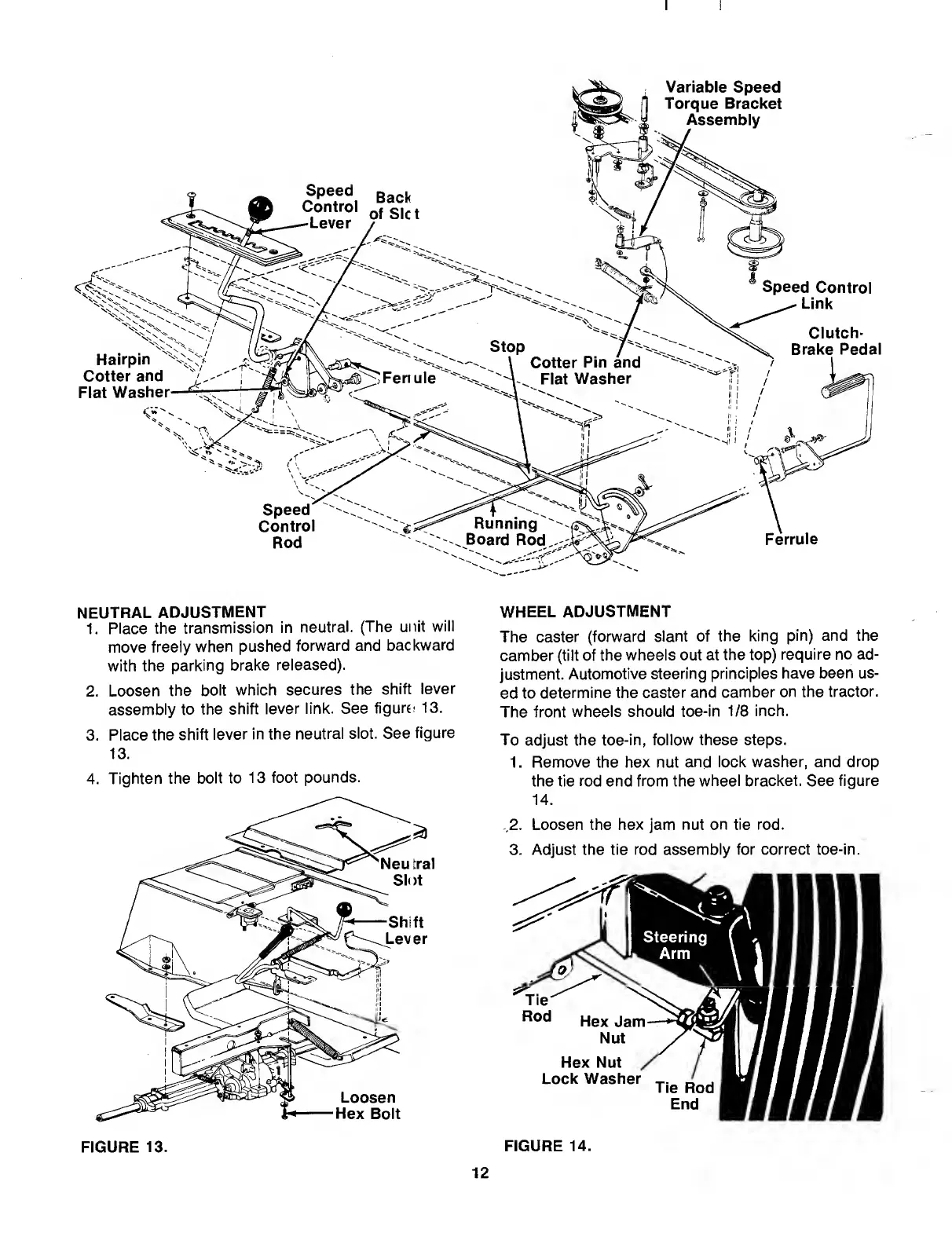

FIGURE 14.
FIGURE 13.
