FUEL SYSTEM AND GOVERNOR
43
To remove/replace the air vane:
1. Unplug the spark plug.
2. Drain the fuel out of the fuel tank into an approved
container.
3. Disconnect the fuel line from the tank.
4. Remove the recoil starter by following the procedures
described in Chapter 6: Starters
5. Lift the blower housing off of the engine.

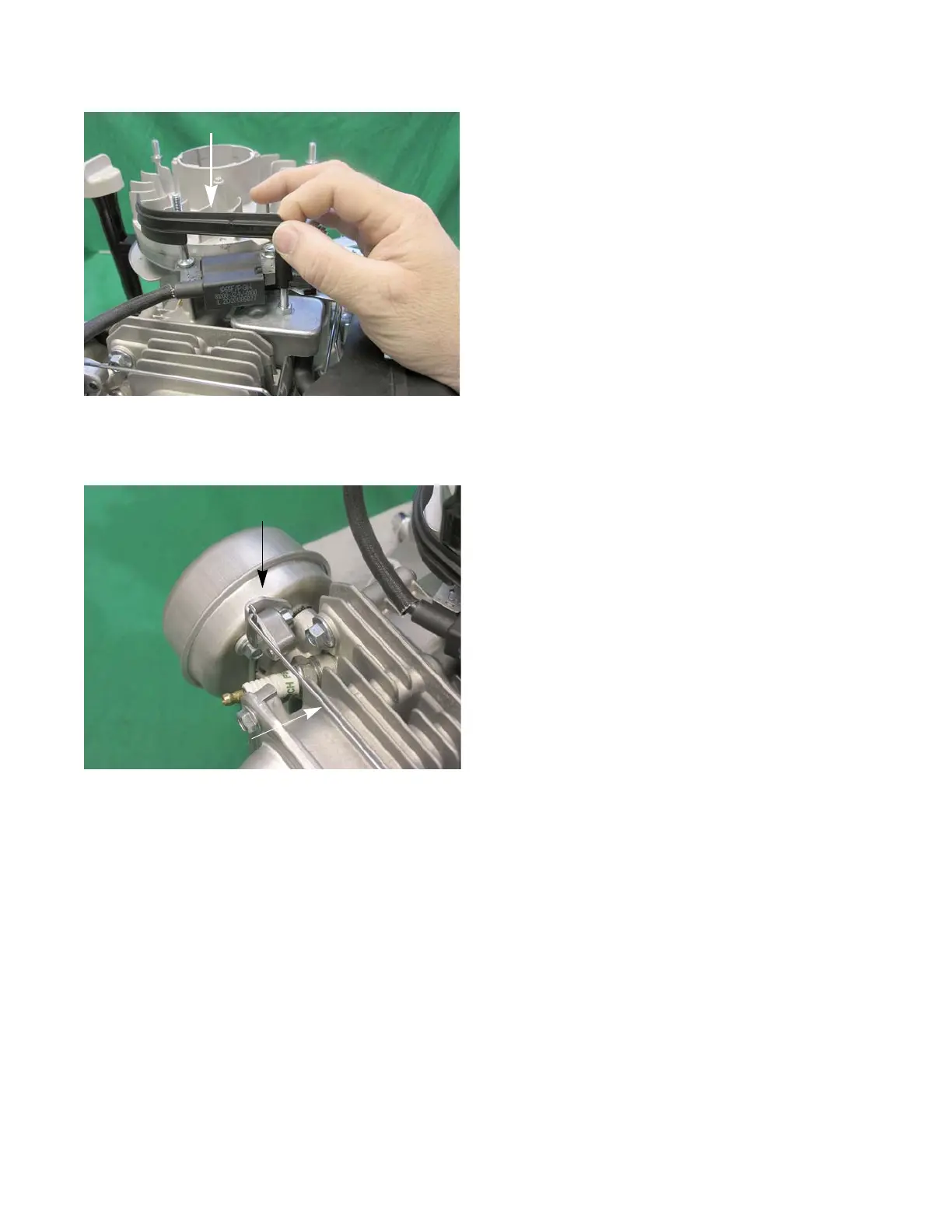

6. Lift the air vane off of the bracket. See Figure 4.13.
7. Unhook the choke linkage.
8. Install by following the above steps in reverse order.
Temperature compensator
To remove/replace the temperature compensator:
1. Remove the muffler cover by following the procedures
described in Chapter 8: Exhaust.
2. Remove the two screws that hold the compensator to
the muffler using a 10 mm wrench. See Figure 4.14.
3. Unhook the compensator from the choke rod.
4. Install the compensator by following the previous
steps in reverse order.
Figure 4.14
Temperature Compensator
Choke rod
