MTD T65 Series User Manual

T65 Series Vertical Shaft Engines
52

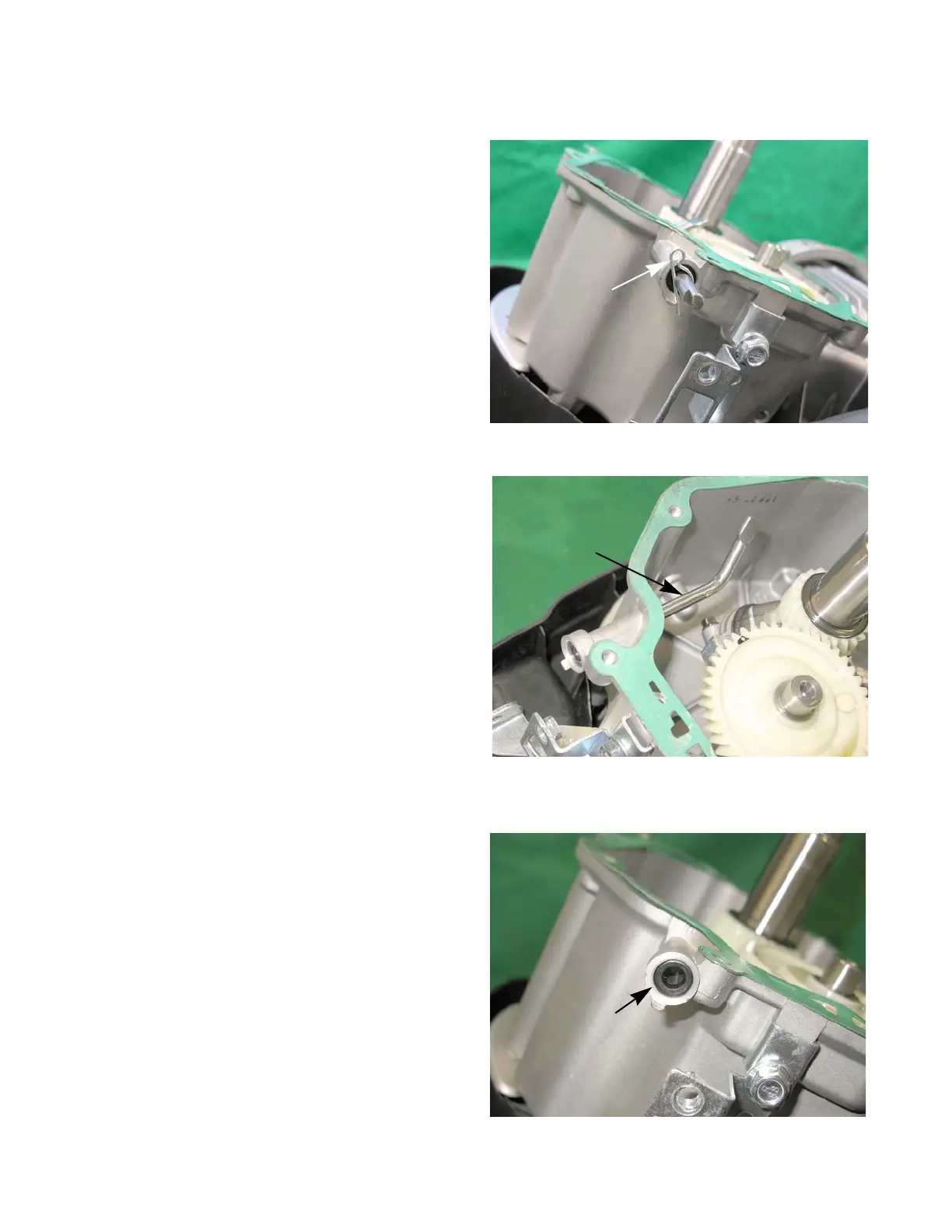

Governor shaft
To remove or replace the governor shaft:
1. Remove the engine from the unit.
2. Remove the governor arm by following the previ-
ously described steps.
3. Remove the sump by following the steps described
in Chapter 10: Disassembly.
4. Remove the hair pin clip from the governor shaft.
See Figure 4.35.
5. Slide the governor arm out of the engine block from
the inside of the engine. See Figure 4.36.
6. Remove the governor shaft seal. See Figure 4.37.
Figure 4.35
Hair pin clip
Figure 4.36
Remove the
governor
shaft
Figure 4.37
Governor shaft
seal
