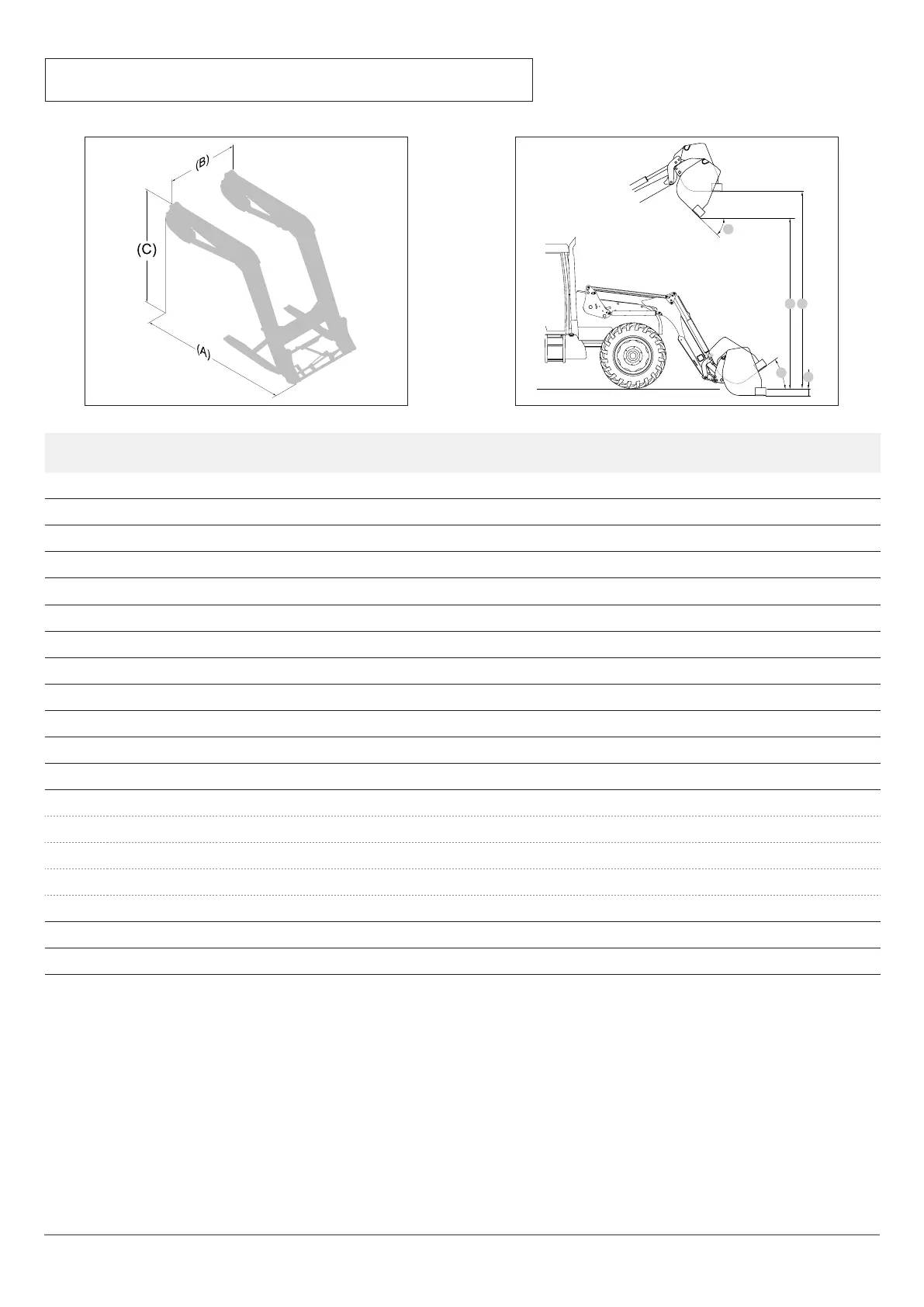

17. TECHNICAL CHARACTERISTICS
A104 A106 A110
Length (A) 2.35 m 2.60 m 2.85 m
Width (B) 1.17 m 1.17 m 1.17 m
Height (C) 1.75 m 1.80 m 2.05 m
Max. weight 450 Kg 460 Kg 520 Kg
Max. height at implement pivot * 3.50 m 3.80 m 4.00 m
Max. height under horizontal bucket (1) # 3.15 m 3.45 m 3.65 m
Max. height under dumped bucket (2) # 2.50 m 2.80 m 3.00 m
Digging depth (3) # 0.15 m 0.15 m 0.15 m
Dumping angle at full height (4) # 55° 55° 55°
Crowding angle (5) # 47° 47° 47°
Lifting force at implement pivot * 1900 Kg 2150 Kg 2300 Kg
Lift capacity at implement pivot over the entire lifting range * 1500 Kg 2000 Kg 2150 Kg
Payload on pallet at 0.60 m out on forks
On the ground 1380 Kg 1600 Kg 1800 Kg
At 2 m above ground 1400 Kg 1650 Kg 1850 Kg
At 3 m above ground 1350 Kg 1600 Kg 1800 Kg
At max. height 1300 Kg 1500 Kg 1700 Kg
Lifting time 3.7 sec 4.3 sec 5 sec
Dumping time 1.8 sec 2 sec 2.1 sec
Specications determined at 190 bar pressure and 60 litres/min ow rate.
Data may vary depending on the type of tractor being equipped.
# Figures provided for multipurpose bucket.
* Only payloads are counted. The gures at ground level and at the implement pivot axis are not to be used.
