Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.3 Compressor Disassembly Preparation
5-13

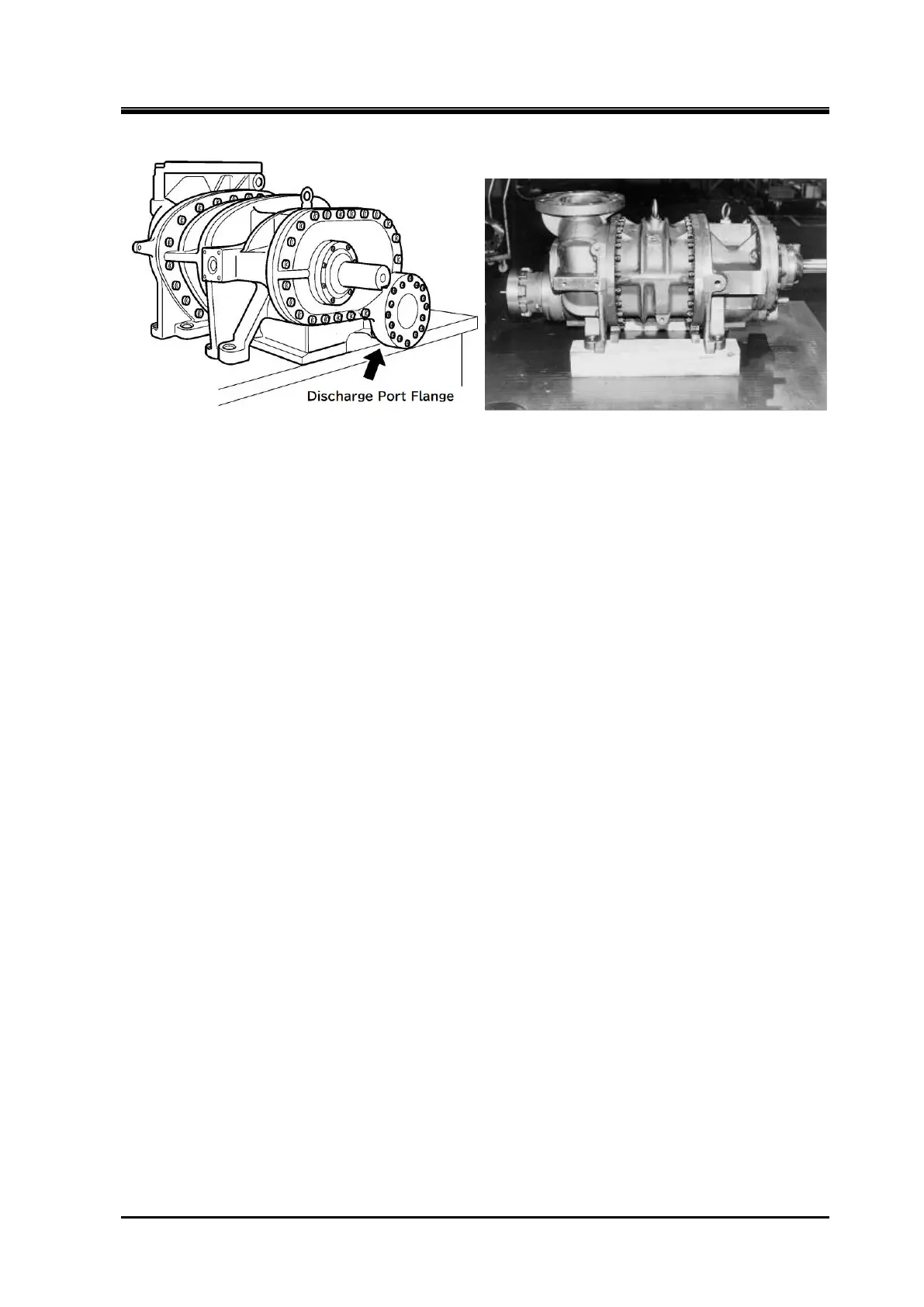

Figure 5-2
5.3.6 Compressor Disassembly Order
The disassembly order of the UD/G-series compressor is general as described below.
Generally UD/G-series compressors are disassembled in the order described below. But this order is
just an example and the actual order may differ according to individual situations.
Depending on the situation, please complete the work in a safe and appropriate procedure.
a) Unloader indicator block
(n some cases, the unloader indicator assembly may be removed without removing the wiring.)
b) Mechanical seal block
c) Unloader cover block
d) Unloader cylinder and Balance piston cover
e) Balance piston block
f) Bearing cover
g) Suction cover and Side bearings
h) Thrust bearing block
i) Rotor and Main rotor casing
j) Unloader Slide Valve
k) Bearing head and Main bearing
