mycom 280J User Manual

2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-45

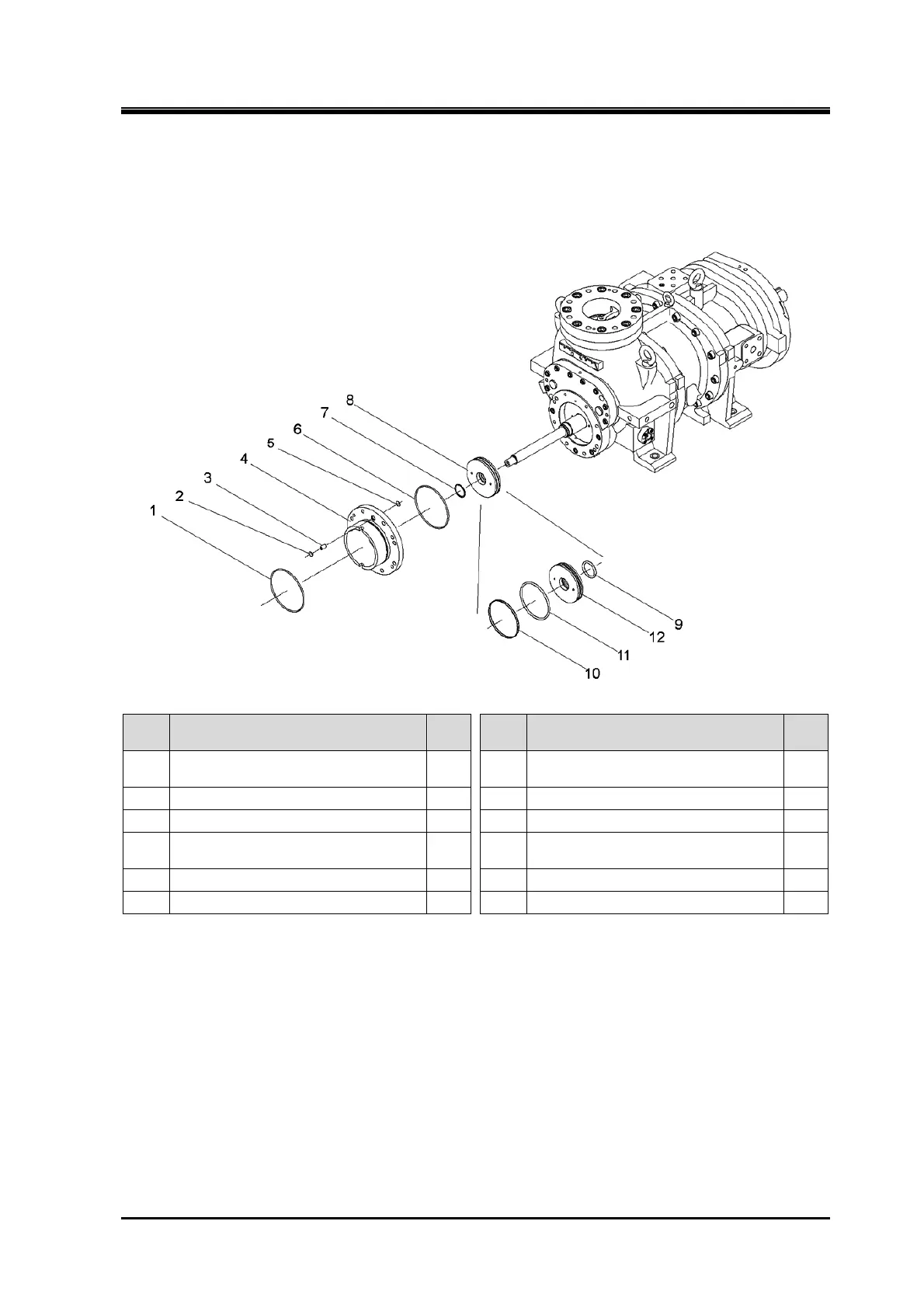

5.4.13 Vi Cylinder
 170J/220J
Order Description
Part
No.
Order Description
Part
No.
1 O-ring (WG36/G200) 63-1 7
Spiral retaining ring
(FRSN-45/FRSN-56)
293
2 O-ring (P14) 63-2 8 Vi piston assembly —
3 Bush, P14 type O-ring 537 9 O-ring (P52/P65) 295
4 Cylinder, Vi 296 10
Teflon cap seal
(SUNR-BE-130/SUNR-BE-170)
66
5 O-ring (P14) 63-2 11 O-ring (P130/P170) 65
6 O-ring (WG36/G200) 63-1 12 Piston, Vi 294
1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
