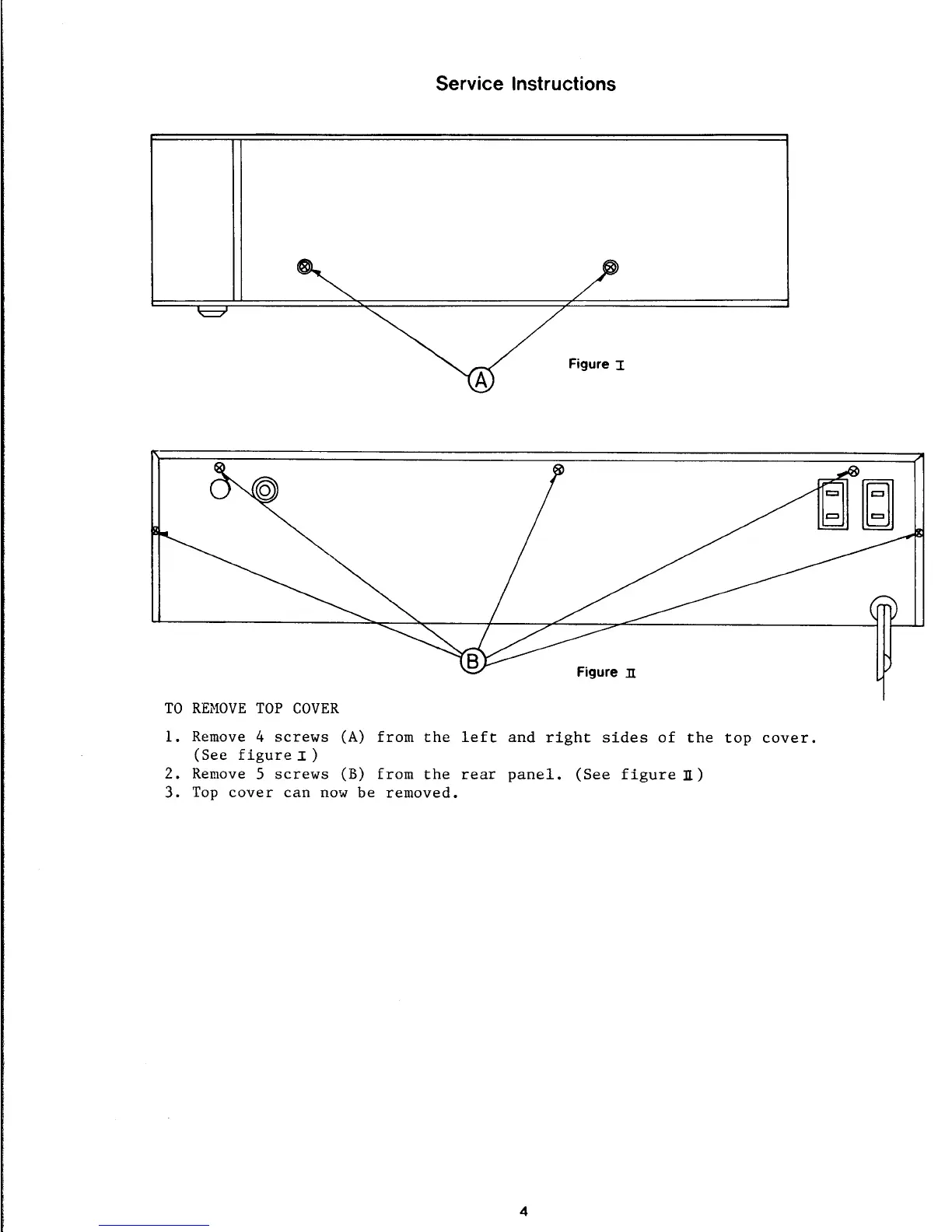

TO
REMOVE
TOP
COVER
Service
Instructions
1
.
Remove
4
screws
(A)
from
the
left
and
right
sides
of
the
top
cover
.
(See
figure
:[)
2
.
Remove
S
screws
(B)
from
the
rear
panel
.
(See
figure
II)
3
.
Top
cover
can
now
be
removed
.
