NAD 705 Service Manual

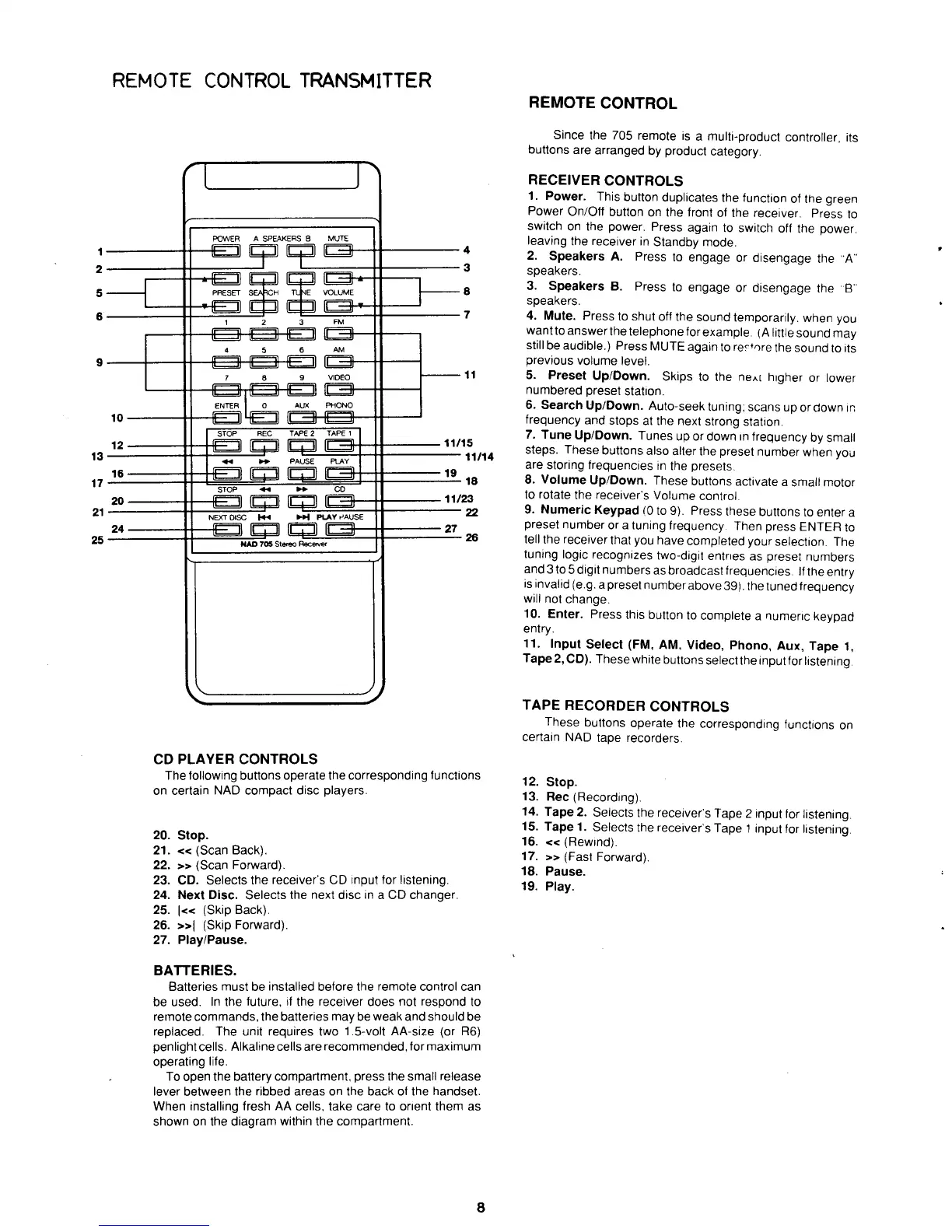

REMOTE
CONTROL
TRANSMITTER
20 . Stop .
21 . << (Scan Back) .
22 . >> (Scan Forward) .
23 . CD
.
Selects
the receiver's CD input for listening .
24 . Next Disc . Selects the next disc in a CD changer .
25 . 1« (Skip
Back)
.
26 . >>I (Skip Forward) .
27 . Play/Pause .
CD PLAYER CONTROLS
The following buttons operate the corresponding functions
on certain NAD compact disc players .
BATTERIES .
Batteries must be installed before the remote control can
be used . In the future,
if
the receiver does not respond to
remote commands, the batteries may be weak and should be
replaced . The unit requires two 1 .5-volt AA-size (or R6)
penlight
cells .
Alkaline cells are recommended, for maximum
operating life .
To open the battery compartment, press the
small
release
lever between the ribbed areas on the back of the handset .
When installing fresh AA cells, take care to orient them as
shown
on the
diagram within the compartment .
REMOTECONTROL
Since the 705 remote is a multi-product
controller, its
buttons are arranged
by product category .
RECEIVER
CONTROLS
1 . Power .

This button
duplicates the function
of the green
Power
On/Off button on the front
of the receiver . Press
to
switch on the power .
Press again to switch off
the power .
leaving
the receiver in Standby
mode .
2 . Speakers A
. Press to engage or
disengage the A"
speakers .
3 .
Speakers B . Press to engage
or disengage the B
speakers .
4 .
Mute . Press to shut off the
sound temporarily . when
you
want to answer
the telephone for example . (A
little sound may
still be audible .) Press
MUTE again to rec'nre the
sound to its
previous
volume level .
5 . Preset Up/Down .
Skips to the ne~[ higher
or lower
numbered preset station .
6 . Search Up/Down
. Auto-seek tuning ; scans up
or down in
frequency and stops at the
next strong station .
7 . Tune Up/Down
. Tunes up or down in
frequency by small
steps . These buttons
also alter the preset number when
you
are storing
frequencies in the presets
.
8 . Volume Up/Down .
These buttons activate a small
motor
to rotate the receiver's Volume
control .
9 . Numeric
Keypad (0 to 9) . Press these
buttons to enter a
preset number or a tuning
frequency Then press ENTER
to
tell the
receiver that you have completed
your selection . The
tuning logic recognizes
two-digit entries as preset
numbers
and
3 to 5 digit numbers as
broadcast frequencies . If the entry
is invalid (e .g . a
preset number above 39) . the
tuned frequency
will
not change .
10 . Enter .
Press this button to complete
a numeric keypad
entry .
11 . Input
Select (FM, AM,
Video, Phono, Aux, Tape 1,
Tape2,CD) . These white
buttons select the input for
listening
TAPE
RECORDERCONTROLS
These buttons
operate the corresponding functions
on
certain NAD
tape recorders .
12 . Stop .
13 . Rec (Recording) .
14 .
Tape 2 . Selects the receiver's
Tape 2 input for listening .
15 . Tape 1 . Selects
the receiver's Tape 1 input for
listening .
16 .
<<
(Rewind) .
17 . >> (Fast
Forward) .
18 . Pause .
19 .
Play .
