NAD 705 Service Manual

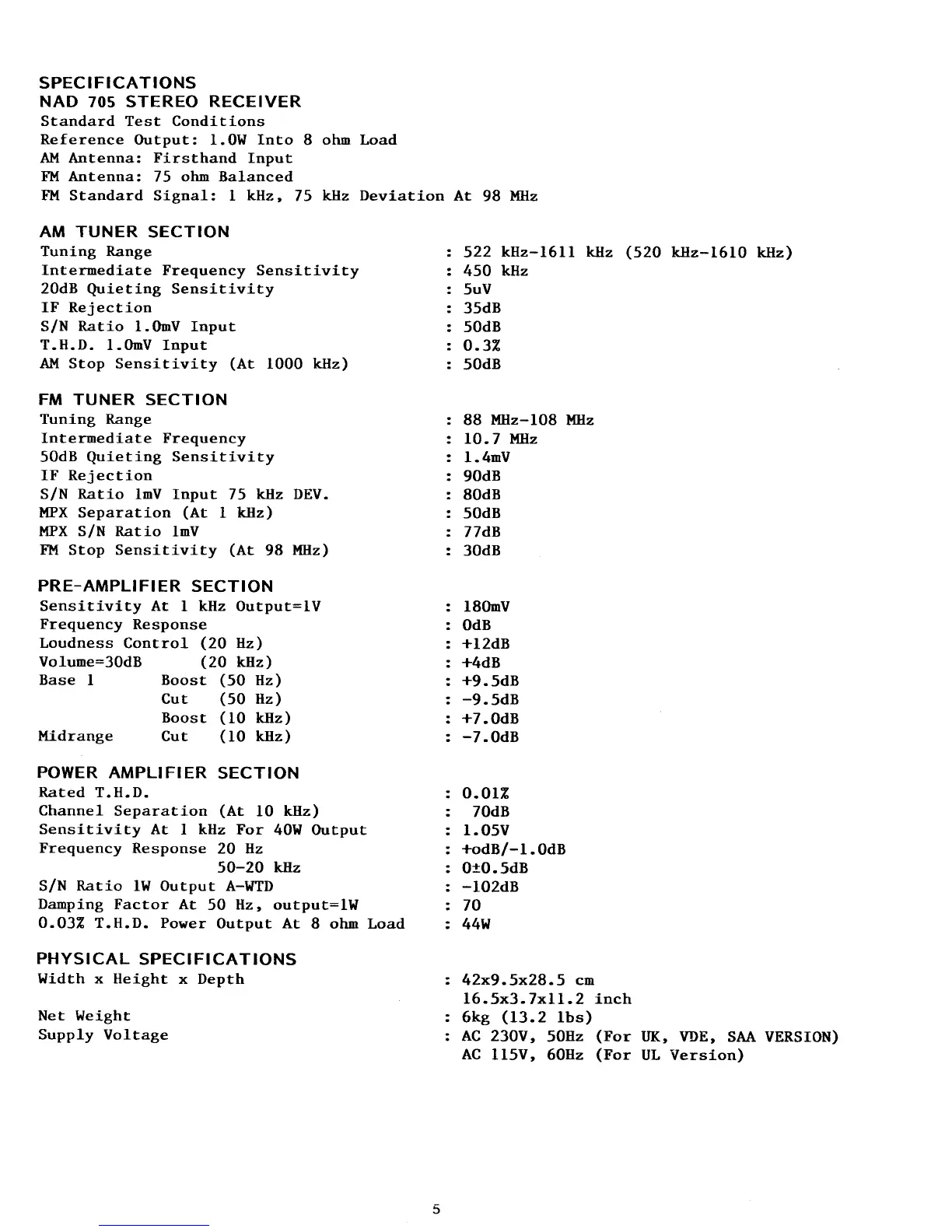

SPECIFICATIONS
NAD 705 STEREO RECEIVER
Standard Test Conditions
Reference Output : 1 .OW Into 8 ohmLoad
AM Antenna : Firsthand Input
FM Antenna : 75 ohm Balanced
FM Standard Signal : 1 kHz, 75 kHz Deviation At
98
MHz
AM TUNER SECTION
Tuning Range 522 kHz-1611 kHz
(520 kHz-1610 kHz)
Intermediate Frequency Sensitivity
450
kHz
20dB Quieting Sensitivity
.
5uV
IF Rejection
35dB
S/N Ratio 1 .OmV Input
50dB
T .H.D . 1 .OmV Input
0 .3Z
AM Stop Sensitivity (At 1000 kHz)
50dB
FM TUNER
SECTION
TuningRange 88 MHz-108MHz
Intermediate Frequency
10 .7
MHz
50dB Quieting Sensitivity . 1 .4mV
IF Rejection
90dB
S/N Ratio 1mV Input 75 kHz DEV . 80dB
MPX Separation (At 1 kHz) 50dB
MPX S/N Ratio 1mV 77dB
FM Stop Sensitivity (At 98 MHz) 30dB
PRE-AMPLIFIER SECTION
Sensitivity At 1 kHz Output=lV 180mV
Frequency
Response OdB
Loudness
Control (20 Hz) +12dB
Volume=30dB (20 kHz) +4dB
Base 1 Boost
(50
Hz)
+9 .5dB
Cut
(50
Hz)
. -9.5dB
Boost (10 kHz) +7 .OdB
Midrange Cut
(10
kHz)
. -7.OdB
POWER AMPLIFIER SECTION
RatedT .H.D .
O .O1Z
Channel Separation (At
10 kHz) 70dB
Sensitivity At 1 kHz For
40WOutput 1 .05V
Frequency Response
20 Hz +odB/-1 .OdB
50-20 kHz 0±0 .5dB
S/N
Ratio
1W Output A-WTD . -102dB
Damping Factor
At 50 Hz, output=lW 70
0
.032
T .H.D .
PowerOutputAt 8 ohmLoad 44W
PHYSICAL SPECIFICATIONS
Width x Height x Depth
42x9 .5x28 .5 cm
16 .5x3 .7xll .2 inch
Net Weight
6kg (13 .2 lbs)
Supply Voltage
AC 230V, 50Hz (For UK, VDE,
SAA VERSION)
AC 115V, 60Hz (For UL Version)

NAD 705 Specifications

General

Brand	NAD
Model	705
Category	Receiver
Language	English
