DIGITAL AUDIO
To take advantage of the T 758’s high performance surround and digital
audio circuitry, it is advisable that its Digital Audio inputs are selected.
There are three types of Digital Audio input for the T 758. These are HDMI,
Optical and Coaxial digital inputs. A fourth option is “O” whereby no
incoming digital audio signal is selected by the particular Source.
The desired digital audio input for a particular Source can be selected by scrolling
to “Digital Audio”, press [ S ] and then [ D/F ] to step through the desired digital
input source. After nalizing the desired type of Digital Audio input, press [ S ]
and then [ D/F ] again to select the specic Digital Audio input.
The following are the sets of assignable Digital Audio input:
HDMI $ HDMI 1, HDMI 2, HDMI 3, HDMI 4
Optical $ Optical 1, Optical 2, Optical 3, Optical Front
Coaxial $ Coaxial 1, Coaxial 2, Coaxial 3
NOTE
An incoming digital signal present at the assigned digital input will always
take precedence over the assigned analog audio input, even if both are
present. To maintain the analog audio input for the particular Source, select
“O” at the “Digital Audio” setting of the same “Source” menu.
VIDEO
There are ve types of video input a particular Source could be assigned. These
are HDMI, Component, S-Video, Video and Previous inputs. A sixth option is “O”
wherein the particular Source is prompted not to select any Video input.
Navigate through the Video input selections by pressing [ S ] and then [ D/F ] to
step through the selections. The following are the sets of assignable Video input:
HDMI $ HDMI 1, HDMI 2, HDMI 3, HDMI 4
Component Video $ Component 1, Component 2, Component 3
S-Video $ S-Video 1
Video $ Video 1, Video 2, Video Front
Previous $ Display or retain preceding video.
IMPORTANT NOTE ABOUT THE VIDEO PERFORMANCE OF T 758
The T 758 utilizes an NAD-engineered eld-programmable gate array
(FPGA) that is capable of enabling the conversion of analog video to
digital video. This allows a single cable connection to your TV for all
sources while maintaining the source’s native resolution. Interlaced
video is converted to progressive scan over HDMI allowing complete
compatibility with latest HD TVs.
The T 758 also supports HDMI features that include compatibility with a
broad range of 3D and HD digital video sources and displays.
A/V PRESET
A particular Source can be assigned a stored Preset. The parameters set up
in the selected Preset number will be adopted into the particular Source it
is assigned (Please refer to the separate section on “A/V Presets” for further
understanding of Preset settings).
Scrolling to “A/V Preset” and by pressing [ S ] and then [ D/F ], a Source
could be assigned a Preset number ranging from Preset 1 to 5.
If it is desired not to assign the particular Source a Preset setting, select “O”.
TRIGGER OUT
The Trigger Out for a particular Source is dependent upon the
congurations done in a separate menu on Trigger Setup (See “Trigger
Setup” below).
For “Trigger Out” to become enabled and assignable at “Source Setup
(Normal View)” menu, make sure to carry out or note the following
beforehand
• In the separate “Trigger Setup” menu, assign “Trigger 1 Out” to “Source
Setup”.
• “Trigger Out” will not appear as an option at the Source Setup (Normal
View) menu if at the separate “Trigger Setup” menu, “Trigger 1 Out” is
assigned to “Main” or “Zone 2”.
Set “Trigger Out” to “On” to enable “Trigger Out” or “O’ to disable it as per
assigned Source.

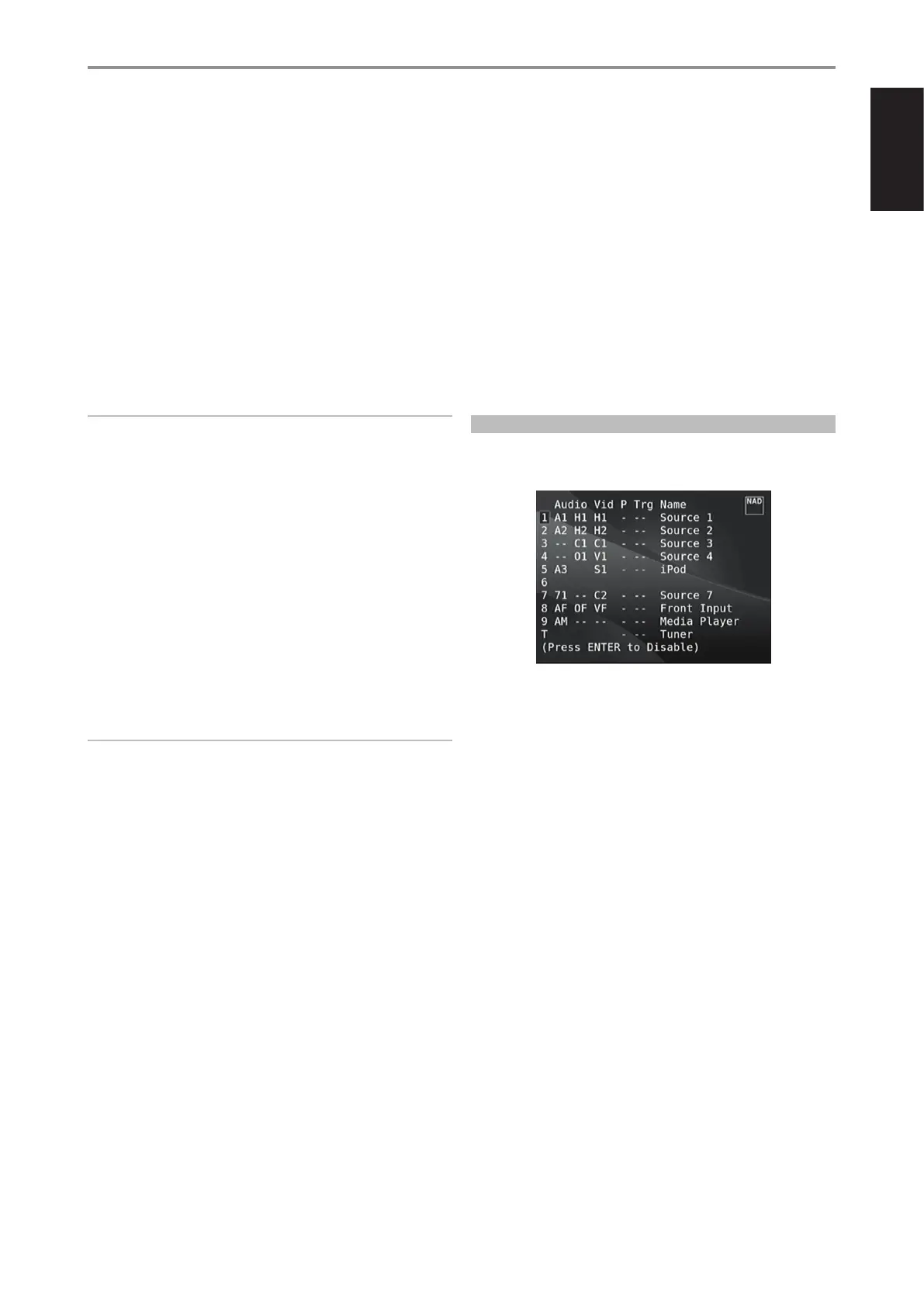

SOURCE SETUP (TABLE VIEW)
The Source Setup (Table View) reects the settings made in the Source
Setup (Normal View) menu. All the Source settings are summarized and
displayed in tabulated form in the Source Setup (Table View).
Navigating through the Source Setup (Table View) via a combination of
[ A/S ] and then [ D/F ] buttons, one will have the benet of directly
changing the settings for “Audio”, “Video”, “Preset”, “Trigger” and “Source
Name” without going back to the Source Setup (Normal View) menu.
Highlight a particular Source number and then, toggle [ENTER] button to
enable or disable said Source number.
OPERATION
USING THE T 758 SETUP MENU
21
