W415-1226 / 06.27.13
19
EN
!
WARNING
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.

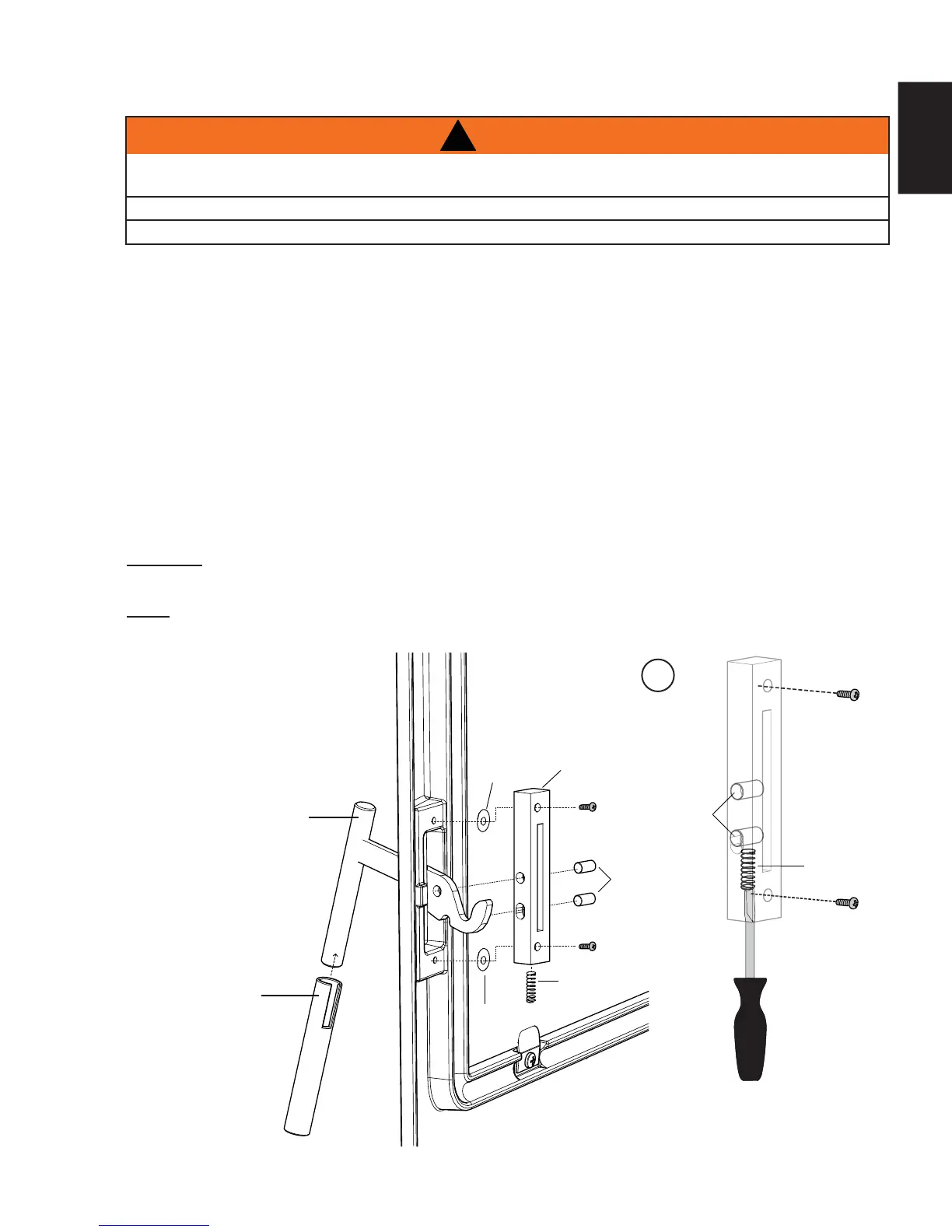

A. Remove the two screws securing the latch block to the door.
B. Pull the handle support towards the inside of the door and remove the latch block components, then
remove the latch block and handle support. Replace any damaged or worn components.
C. To reinstall the door handle take the latch block and door handle support, align the top and bottom
screw holes to the door, as illustrated.
D. Install the washers behind the latch block prior to installing the screws, as illustrated.
E. Loosely tighten the top screw and install the two pins, as illustrated.
F. Installing the spring, slip it into the bottom of the latch block and then install the screw. Apply a small
amount of high temperature grease to the spring, prior to installation. HINT: compress the spring
using a fl at head screw driver, this allows for easy installation of the screw, as shown below.
G. To ensure a proper installation, the handle support should have the ability to remain in an upwards
position. Additionally, the handle support should engage smoothly with the fi rebox.
WARNING: THIS APPLIANCE IS HOT WHILE IN OPERATION, USE THE HANDLE PROVIDED IN THE ASH
DRAWER, FOR PROTECTION FROM THE WARMTH OF THE HANDLE SUPPORT.
NOTE: The handle can be found in the slot in the ash drawer, refer to the “ASH DRAWER
ADJUSTMENT” section for details.
5.2 DOOR AND HANDLE INSTALLATION AND SERVICE
E
Slide the handle onto
the handle support
from the bottom.
SPRING
PINS
SPRING
PINS
LATCH BLOCK
WASHER
WASHER
HANDLE
SUPPORT
HANDLE
