Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review
your installation plans and/or installation.
Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require-
ments listed in this manual.
You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing
member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,
doors), 48” (1219.2mm) of the front of the appliance.
67.1B
DO NOT INSTALL INTO ANY AREA HAVING A HEIGHT LESS THAN 7 FEET (2.1m)
(CEILING OF ENCLOSURE TO APPLIANCE BOTTOM, EXCLUDING HEARTH HEIGHT).
!
WARNING
BACK WALL
B
SIDE WALL
A
BACK WALL
C
SIDE WALL
F
D
E
E

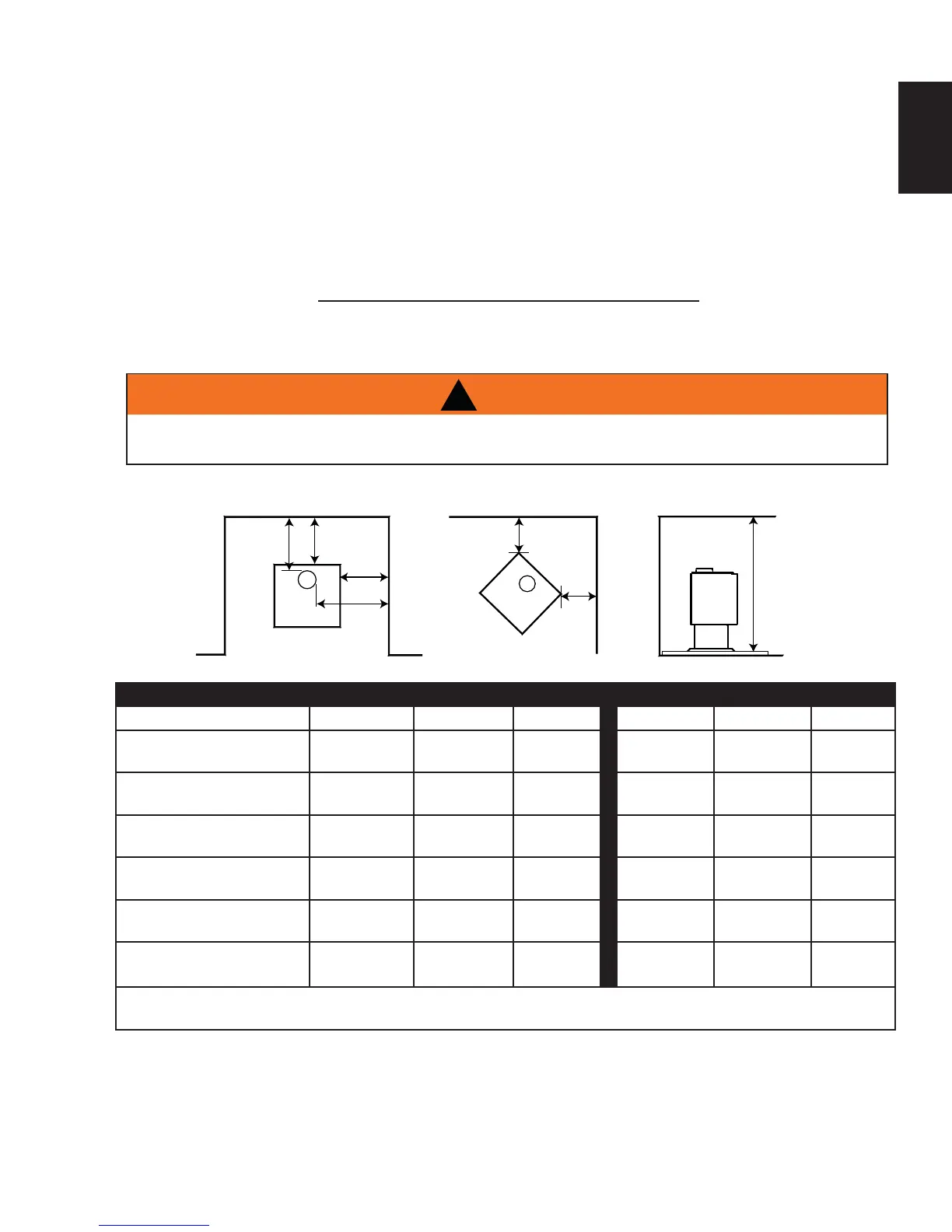

3.0 PRE-INSTALLATION PREPARATION
3.1 APPLIANCE PLACEMENT
3.2 CLEARANCE TO COMBUSTIBLES
PARALLEL & CORNER SINGLE WALL CONNECTOR DOUBLE WALL CONNECTOR
S1 S4 S9 S1 S4 S9
SIDEWALL (A) 16”
(406mm)
16”
(406mm)
22”
(559mm)
16”
(406mm)
16”
(406mm)
22”
(559mm)
SIDEWALL TO FLUE (B) 21”
(533mm)
21”
(533mm)
21”
(533mm)
19”
(483mm)
19”
(483mm)
19”
(483mm)
BACKWALL (C) 10”
(254mm)
12”
(305mm)
12”
(305mm)
6”
(152mm)
6”
(152mm)
12”
(305mm)
BACKWALL TO FLUE (D) 13”
(330mm)
16.5”
(419mm)
16.5”
(419mm)
9”
(229mm)
9”
(229mm)
16.5”
(419mm)
CORNER (E) 6”
(152mm)
6”
(152mm)
8”
(203mm)
2”
(51mm)
4”
(102mm)
8”
(203mm)
CEILING (F) 84”
(2134mm)
84”
(2134mm)
84”
(2134mm)
84”
(2134mm)
84”
(2134mm)
84”
(2134mm)
Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply
with NFPA 211 or CAN/CSA-B365.
