W415-1226 / 06.27.13
30
EN
!
WARNING
DO NOT USE SUBSTITUTE MATERIALS.
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR
DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE
APPLIANCE BEFORE OPERATION.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
56.2
8.5 GLASS REPLACEMENT
8.4 CHIMNEY CLEANING
86.1
Both the chimney and the appliance must be inspected and cleaned if necessary at least once a year.
For serious wood burners, chimney cleaning must be done as needed to avoid chimney fi res; the venting
systems for controlled combustion appliances may need cleaning as often as once a month. These rates,
however, depend on the burning habits of the individual operating the appliance. For example, it is possible to
clog a solid fuel appliance chimney in a few days if slow, smoldering fi res are burned and the chimney is cold.
NOTE: Appliances burned consistently without hot fi res may result in signifi cant creosote
accumulations in the chimney.
Certain items and considerations are important in chimney cleaning:
• Proper tools should be used, including a brush specifi cally designed for chimney cleaning.
• The chimney connector and dampers as well as the chimney should be cleaned.
• The appliance’s fi rebox and baffl e system should be cleaned if needed.
• The chimney should be inspected and repairs made if needed, preferably by a qualifi ed chimney
sweep or mason.

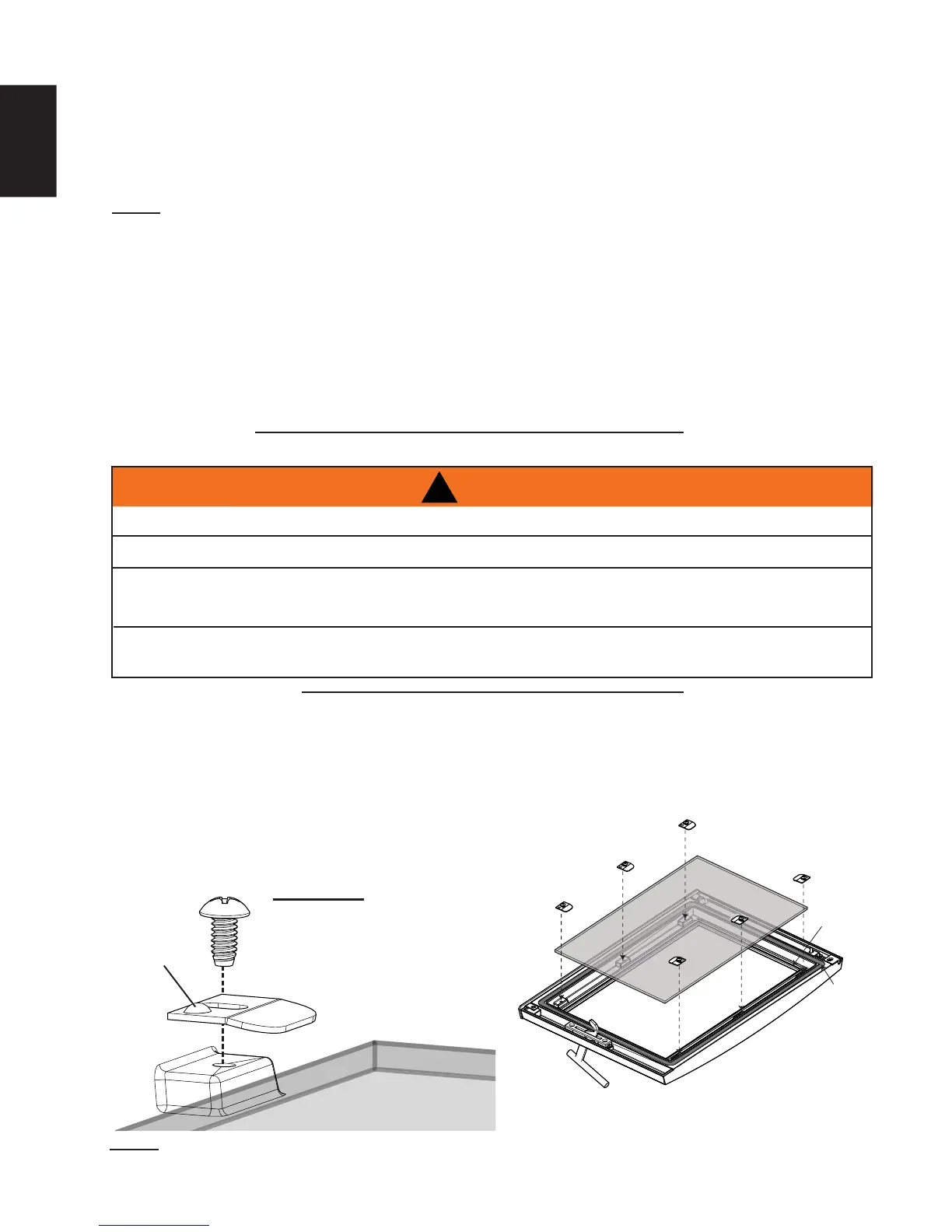

A. When the appliance is cool, remove the door from the appliance, refer to the “DOOR REMOVAL/
INSTALLATION” section. Place the door face down careful not to scratch the paint.
B. Remove the 6 screws (W570-0085) and the 6 glass retainers (W500-0692). Remove the glass from
the appliance.
C. Replace door and/or glass gaskets, if necessary. Secure into position using red silicone.
D. Place the glass in position and re secure the 6 glass retainers, do not
overtighten. Refer to “DOOR REMOVAL/INSTALLATION” section
for proper door installation instructions.
NOTE: For replacement glass see “REPLACEMENTS” section.
GLASS
GASKET
DOOR
GASKET
DIMPLE
IMPORTANT: ENSURE THE
RETAINER HAS THE DIMPLE
FACING UPWARDS, AS SHOWN.
