1-8 | ni.com
Chapter 1 Getting Started with the cDAQ Chassis
Caution Your installation must meet the following requirements:
• Allows 25.4 mm (1 in.) of clearance above and below the cDAQ chassis for air
circulation.
• Allows at least 50.8 mm (2 in.) of clearance in front of the modules for common
connector cabling such as the 10-terminal detachable screw terminal connector
and, as needed, up to 88.9 mm (3.5 in.) of clearance in front of the modules for
other types of cabling.
For more information about cabling clearances for C Series modules, refer to
ni.com/info
and enter the Info Code cseriesconn.
Using the cDAQ Chassis on a Desktop
You can use the cDAQ chassis on a desktop. cDAQ-9174/9178 users can install an optional
desktop mounting kit.
Caution Do not stack the cDAQ chassis.
NI 9901 Desktop Kit for cDAQ-9174/9178 Chassis
The NI 9901 desktop mounting kit includes two metal feet you can install on the sides of the
cDAQ-9174/9178 chassis for desktop use. With this kit, you can tilt the cDAQ chassis for
convenient access to the module connectors. When you install the two metal feet, the two
existing screws on the back side and I/O end of the chassis must be removed, as shown in
Figure 1-5. After removing the screws, replace them with the two M3 × 14 screws included in
the NI 9901 desktop mounting kit.

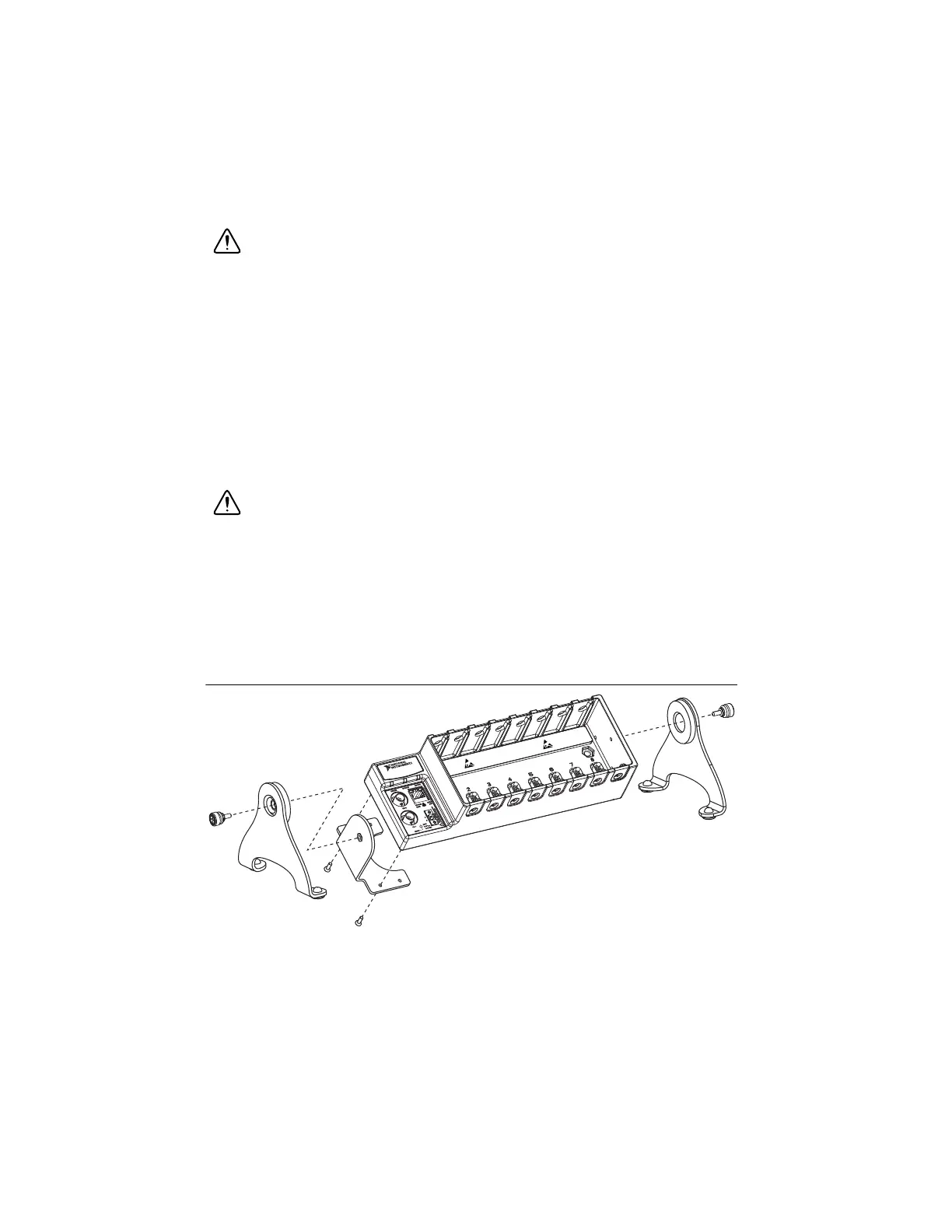

Figure 1-5. NI 9901 Desktop Mounting Kit
You must mount the chassis before installing the C Series modules.
