Kit Contents
• PXIe-8522 or PXIe-8523 module
• 26 AWG x 8 mm insulated ferrules, x 20
• Screw driver for use with connector spring terminal push buttons
• PXIe-8522 Safety, Environmental, and Regulatory Information or PXIe-8523 Safety,
Environmental, and Regulatory Information
Note This device ships with a plug connector pre-installed on each port.
Getting Started
Installing the Module
Notice To prevent damage to the module caused by ESD or contamination, handle
the module using the edges or the metal bracket.
1. Ensure the AC power source is connected to the chassis before installing the module.
The AC power cord grounds the chassis and protects it from electrical damage while you
install the module.
2. Power off the chassis.
3. Inspect the slot pins on the chassis backplane for any bends or damage prior to
installation. Do not install a module if the backplane is damaged.
4. Remove the black plastic covers from all the captive screws on the module front panel.
5. Identify a supported slot in the chassis. The following figure shows the symbols that
indicate the slot types.

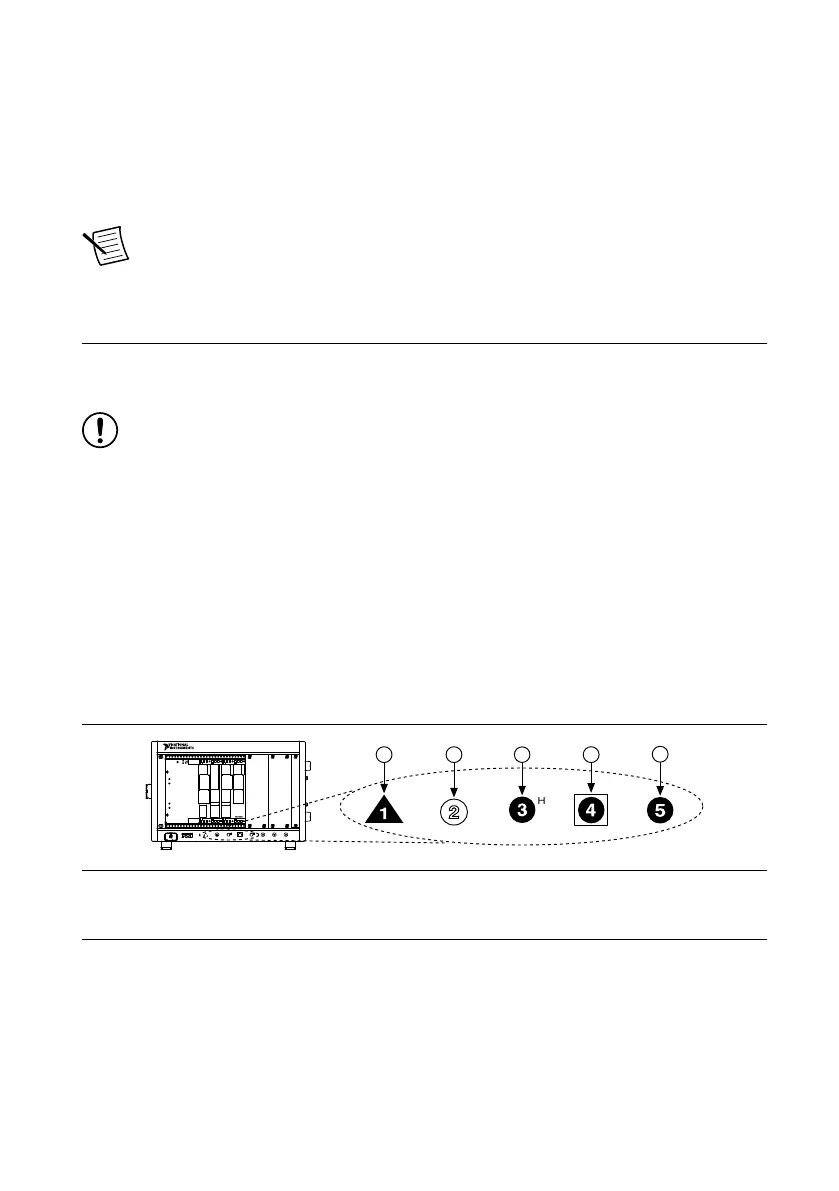

Figure 1. Chassis Compatibility Symbols
1. PXI Express System Controller Slot
2. PXI Peripheral Slot
3. PXI Express Hybrid Peripheral Slot
4. PXI Express System Timing Slot
5. PXI Express Peripheral Slot
These modules can be placed in PXI Express peripheral slots, PXI Express hybrid
peripheral slots, or PXI Express system timing slots.
6. Touch any metal part of the chassis to discharge static electricity.
7. Ensure that the ejector handle is in the downward (unlatched) position.
8. Place the module edges into the module guides at the top and bottom of the chassis. Slide
the module into the slot until it is fully inserted.
2 | ni.com | PXIe-8522/8523 User Manual
