Navico B&G V100-B User Manual

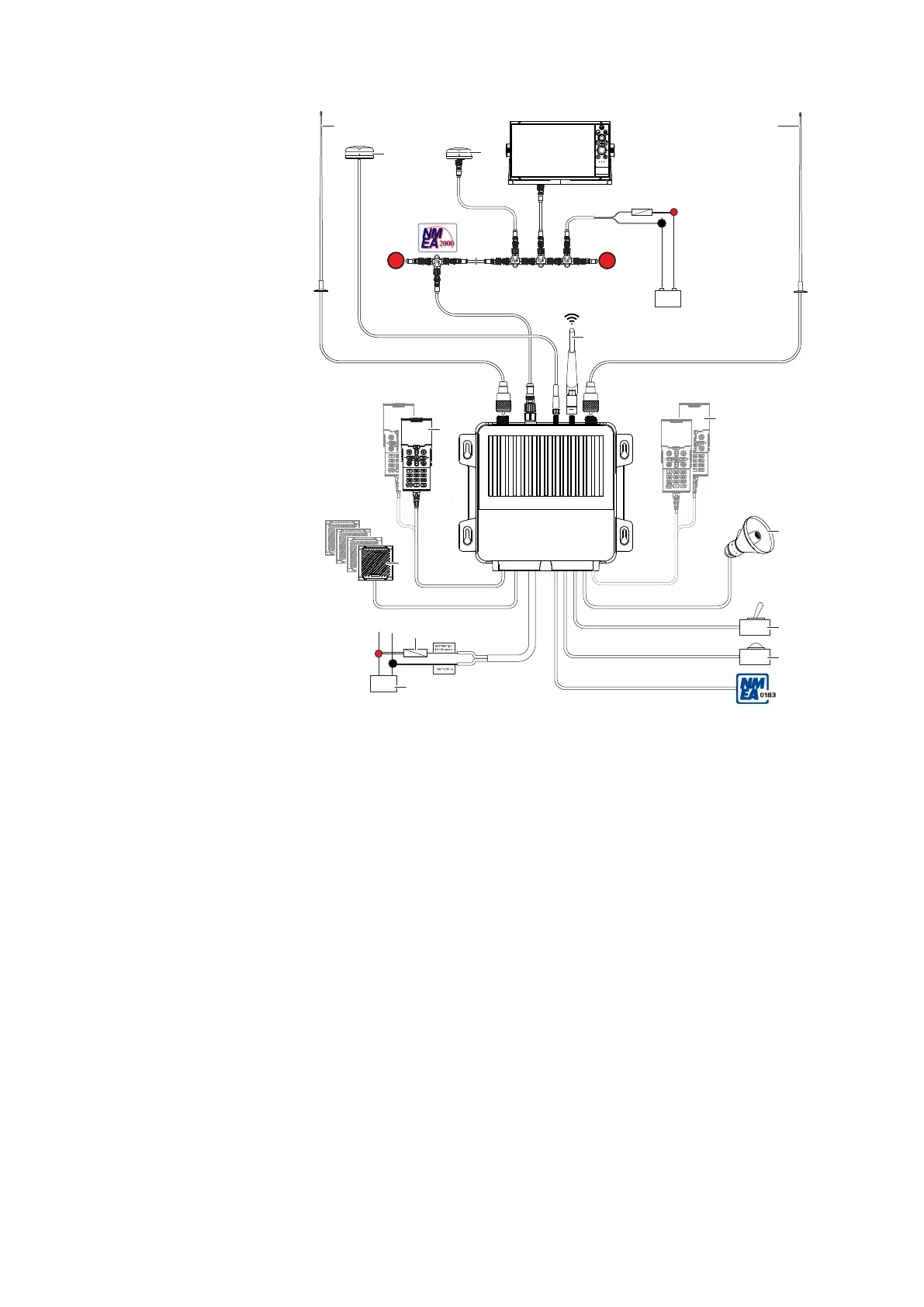

Wiring diagram
+
_
+
_
T
T
A
B
F
G
L
M
N
H
I
J
K
C
D
E
G
A AIS Antenna (NRS-2 only)
B GPS-500 (NRS-1 optional; NRS-2 mandatory)
C NMEA 2000 GPS Source (Optional on NRS-1 only)
D Navico MFD
E VHF Antenna
F Wireless Dipole Antenna (Optional 6 meter extension cable available)
G Fixed Handsets (HS1 mandatory, HS2, HS3, HS4 optional)
H Wired Speakers (Optional - 4 max)
I Breaker/Power Switch
J 12V DC Power Supply
K NRS-1 / NRS-2 Blackbox
L HAILER/HORN Speaker
M Silent Switch (NRS-2 only) - (Normally open, toggle)
N HORN button - (Normally open, momentary)
60 |
Installation | RS100 / RS100-B / V100 / V100-B User Manual
