46 Connecting Electrical Supplies

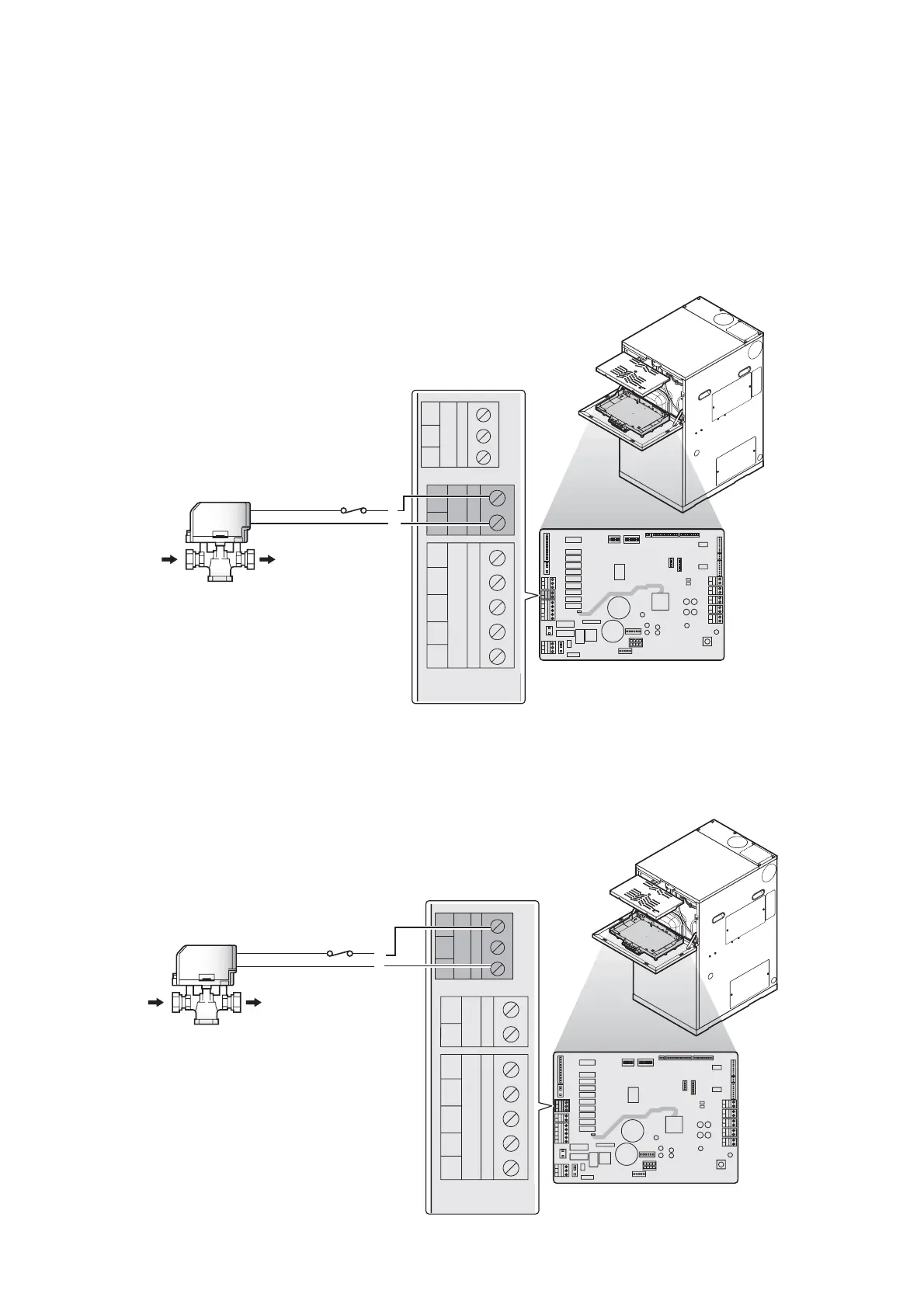

9.5 Connecting Applications to the AC Application Part
9.5.1 Connecting the 2 Port Diverter Valve (CH)
The boiler is designed to be connected to a 2 port diverter valve (CH). The valve cables are connected to the terminals 1 (L) and 2 (N) of
the CONM3 in the AC application part. It only operates when there is an operating signal from the CH thermostat.
Brown
1
/
Blue
$0/.
$0/.
/
1
$0/.@
AC
Application
Part
'+:
&+
1
9.5.2 Connecting the 2 Port Diverter Valve (DHW)
The boiler is designed to be connected to a 2 port diverter valve (DHW). The valve cables are connected to the terminals 1 (L) and 3 (N) of the
CONM2_2 in the AC application part. It only operates when there is an operating signal from the cylinder stat.
%URZQ
1
/
%OXH
$0/.
$0/.
/
1
$0/.@
&+
1
AC
Application
Part
'+:
&+
1
