Flexible Arm Installation

This LCD monitor is designed for use with a ﬂ exible arm.

To prepare the monitor for alternate mounting purposes:

• Follow the instructions provided by the manufacturer of the display mount.

• To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and be UL-certiﬁ ed.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place a hand on each side of the monitor and lift up to the highest position.

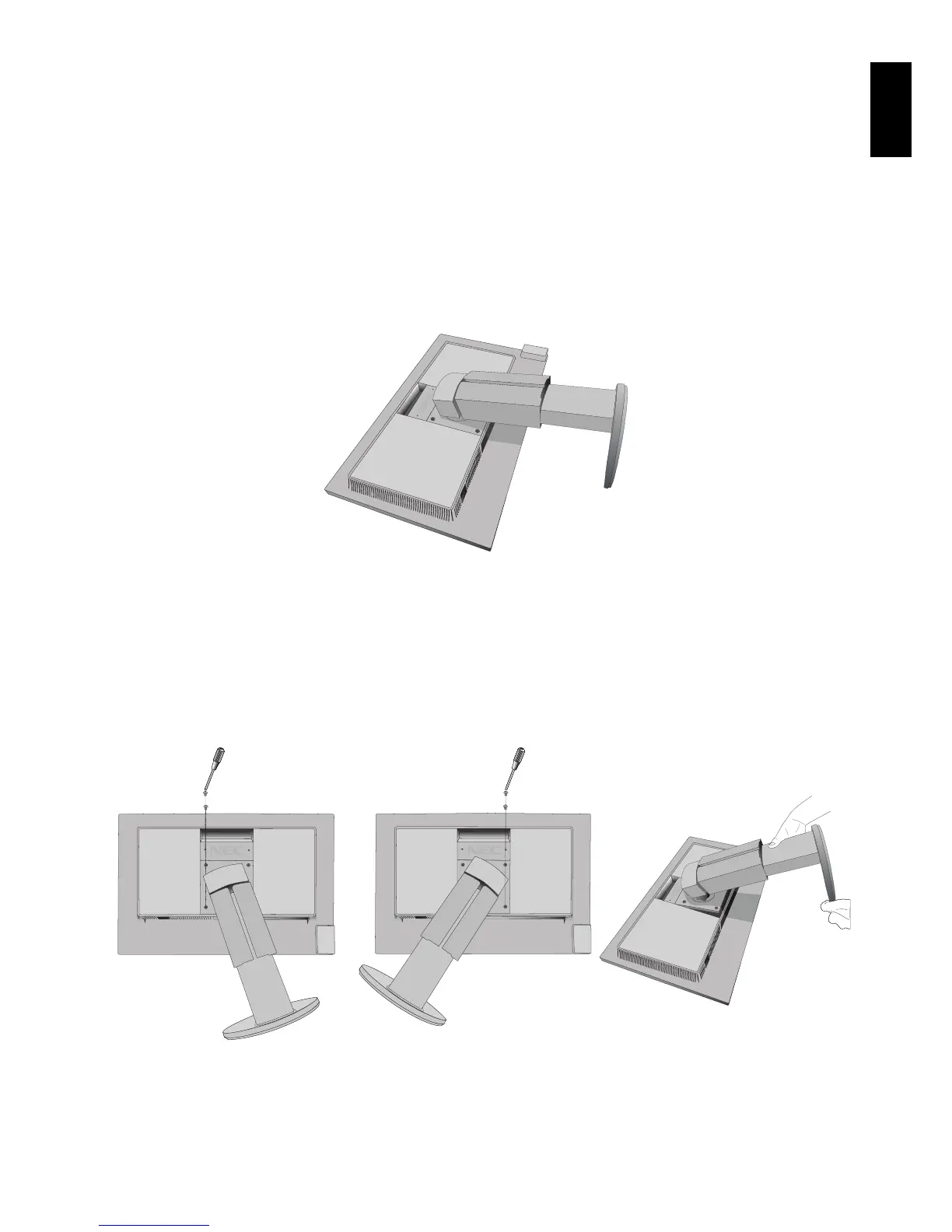

3. Place monitor face down on a non-abrasive surface (Figure S.1).

NOTE: Handle with care when the monitor is facing down.

Figure S.1

4. Remove 2 bottom screws ﬁ rst: Move stand left and right to remove bottom 2 screws (Figure S.2, S.3).

5. Remove 2 top screws.

NOTE: In order to avoid stand drop, when removing screws, please support stand with your hand.

6. Remove the stand (Figure S.4).

7. The monitor is now ready for mounting in an alternate manner.

8. Connect the cables to the back of the monitor.

NOTE: Handle with care when removing monitor stand.

Figure S.2 Figure S.3 Figure S.4

9. Reverse this process to re-attach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Handle with care when removing stand.

NOTE: Match “TOP SIDE” mark on stand to top side of the monitor head when re-attaching stand.

Questions and Answers:

Need help?

Do you have a question about the NEC MultiSync EA223WM and is the answer not in the manual?

NEC MultiSync EA223WM Specifications

General

3D	No
HD type	WSXGA+
Panel type	TN
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Screen shape	Flat
Backlight type	W-LED
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LED
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 82.3 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
On/off switch	Yes
Power consumption (economy mode)	12 W
USB hub version	2.0
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Certification	CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
RMS rated power	2 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (max)	25 W
Annual energy consumption	18 kWh
Power consumption (standby)	- W
Power consumption (PowerSave)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, USB
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions
