NEC MultiSync EA223WM User Manual

English-11
English

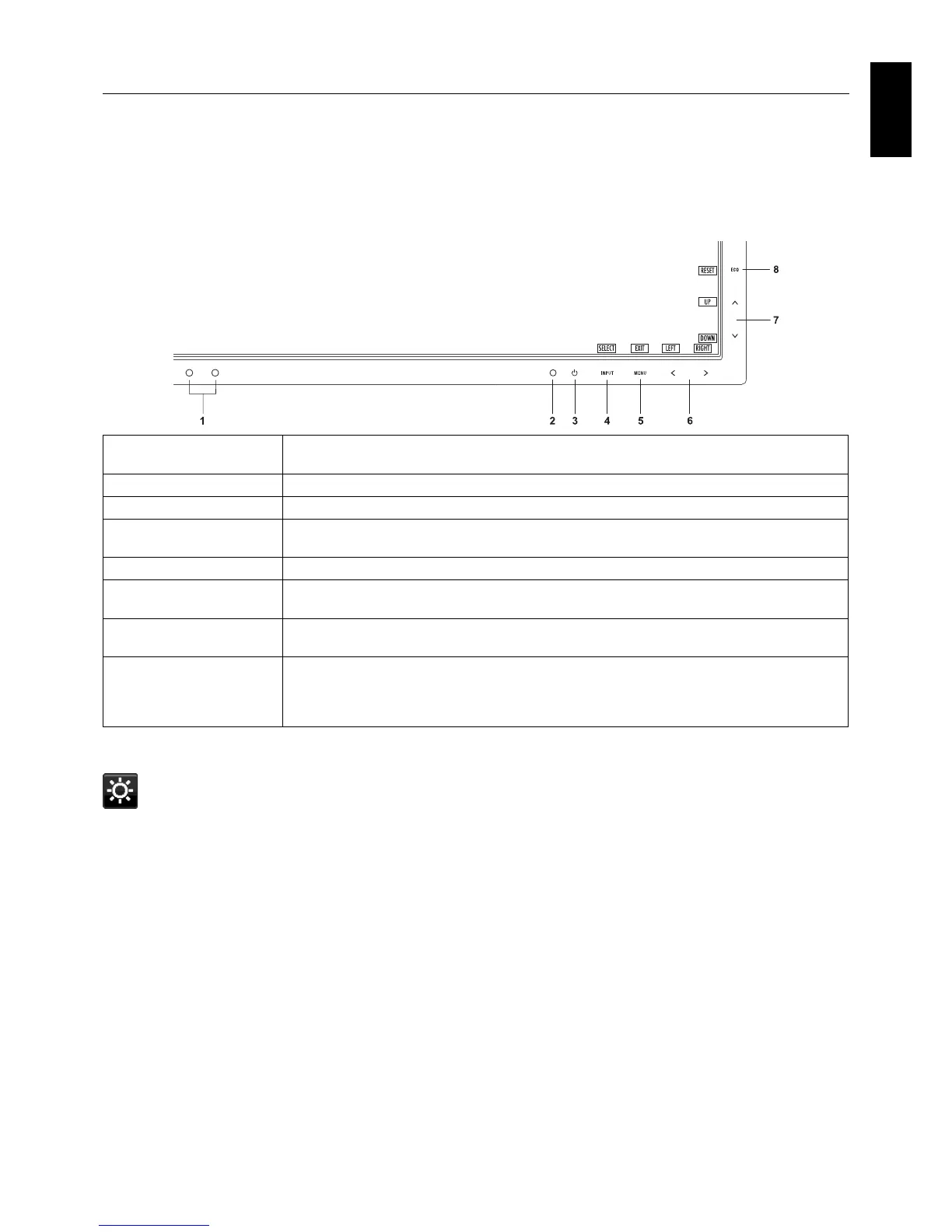

Controls
OSD (On-Screen Display) control keys on the front of the monitor function
are as follows:
To access OSD menu, touch any of the control keys.
To change signal input, touch the SELECT key.
NOTE: Exit OSD in order to change signal input.
1 Ambibright Sensor
Human Sensor
Detects the level of ambient lighting, allowing the monitor to make adjustments to various
settings resulting in a more comfortable viewing experience. Do not cover this sensor.
2 LED Indicates that the power is on or off.
3 Power Turns the monitor on and off.
4 INPUT/SELECT Enters the OSD Control menu. Enters OSD sub menus.
Changes the input source when not in the OSD Control menu.
5 MENU/EXIT Accesses OSD menu. Exits the OSD sub menu. Exits OSD Control menu.
6 LEFT/RIGHT Navigates to the left or right through the OSD Control menu.
You can adjust the BRIGHTNESS directly while the OSD menu is off*.
7 UP/DOWN Navigates up or down through the OSD Control menu.
You can adjust the VOLUME directly when not in the OSD Control menu*.
8 RESET/ECO Resets the OSD back to factory settings in the OSD control menu.
Switches among ECO MODE settings.
Activates Auto Adjust function if helded for 3 seconds while the OSD menu is off (Analog input
only)*.
* When Hot Key function is OFF, this function is disabled.
ECO TOOLS
BRIGHTNESS
Adjusts the overall image and background screen brightness.
If ECO MODE is set to 1 or 2, a bar for CARBON FOOTPRINT will appear.
CONTRAST
Adjusts the overall image and background screen brightness by input signal level.
ECO MODE
Decreases the amount of power consumption by reducing the brightness level.
OFF: No function.
1 (ENERGY STAR SETTING): Sets brightness variable range from 0% to 80%.
This setting can adjust brightness to a range in which power is reduced to meet Energy Star measurement conditions.
2 (40% POWER SAVINGS): Sets brightness variable range from 0% to 40%.
This setting can adjust brightness to a range in which power is reduced by 40% compared to the maximum brightness
setting.
When this function is set to ON, a CARBON FOOTPRINT bar will appear alongside the brightness adjustment bar.
NOTE: This function is disabled when DV mode is set for Dynamic.

NEC MultiSync EA223WM Specifications

General

3D	No
HD type	WSXGA+
Panel type	TN
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Screen shape	Flat
Backlight type	W-LED
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LED
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 82.3 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
On/off switch	Yes
Power consumption (economy mode)	12 W
USB hub version	2.0
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Certification	CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
RMS rated power	2 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (max)	25 W
Annual energy consumption	18 kWh
Power consumption (standby)	- W
Power consumption (PowerSave)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, USB
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	218 mm
Height (with stand)	384 mm
Weight (with stand)	5600 g
Depth (without stand)	- mm
Width (without stand)	503.5 mm
Weight (without stand)	- g
