NEC MultiSync EA223WM User Manual

English-10

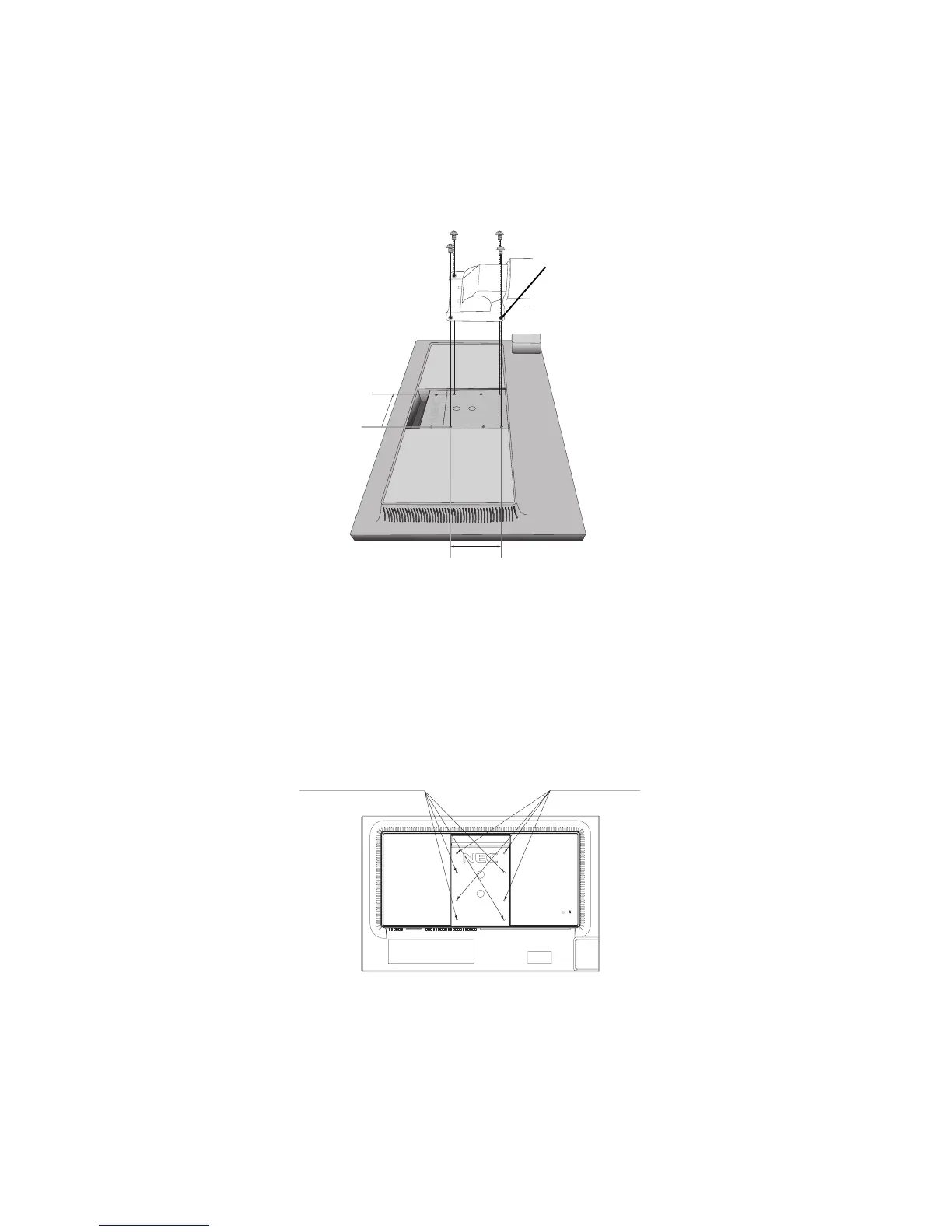

Mount Flexible Arm
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Use the 4 screws removed from the stand to attach the arm to the monitor (Figure F.1).
Caution: Use ONLY the screws (4 pcs) that were removed from the stand to avoid damage to the monitor or stand. To meet
the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm
(e.g. GS mark).
Figure F.1
Weight of LCD assembly: 3.3 kg
100 mm
100 mm
Thickness of Bracket (Arm)
2.0~3.2 mm
Additional VESA Holes for Lower Monitor Head Position
Additional 4 VESA holes are provided for those users needing a lower monitor head position than that is available from the
monitor stand in shipping confi guration. The monitor stand can be re-attached by using the 4 screws to the lower position VESA
holes.
NOTE: 1. The monitor head tilt function may experience impaired operation when attached to the lower position VESA holes.
2. The monitor head pivot function should not be used when attached to the lower position VESA holes.
4 Screws (M4)
(Max Depth: 8.5 mm)
Additional 4 VESA

NEC MultiSync EA223WM Specifications

General

3D	No
HD type	WSXGA+
Panel type	TN
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Screen shape	Flat
Backlight type	W-LED
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LED
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 82.3 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
On/off switch	Yes
Power consumption (economy mode)	12 W
USB hub version	2.0
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Certification	CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
RMS rated power	2 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (max)	25 W
Annual energy consumption	18 kWh
Power consumption (standby)	- W
Power consumption (PowerSave)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, USB
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	218 mm
Height (with stand)	384 mm
Weight (with stand)	5600 g
Depth (without stand)	- mm
Width (without stand)	503.5 mm
Weight (without stand)	- g
