Quick Install Guide – UNIVERGE ST500 Mobile Client v1.0 9

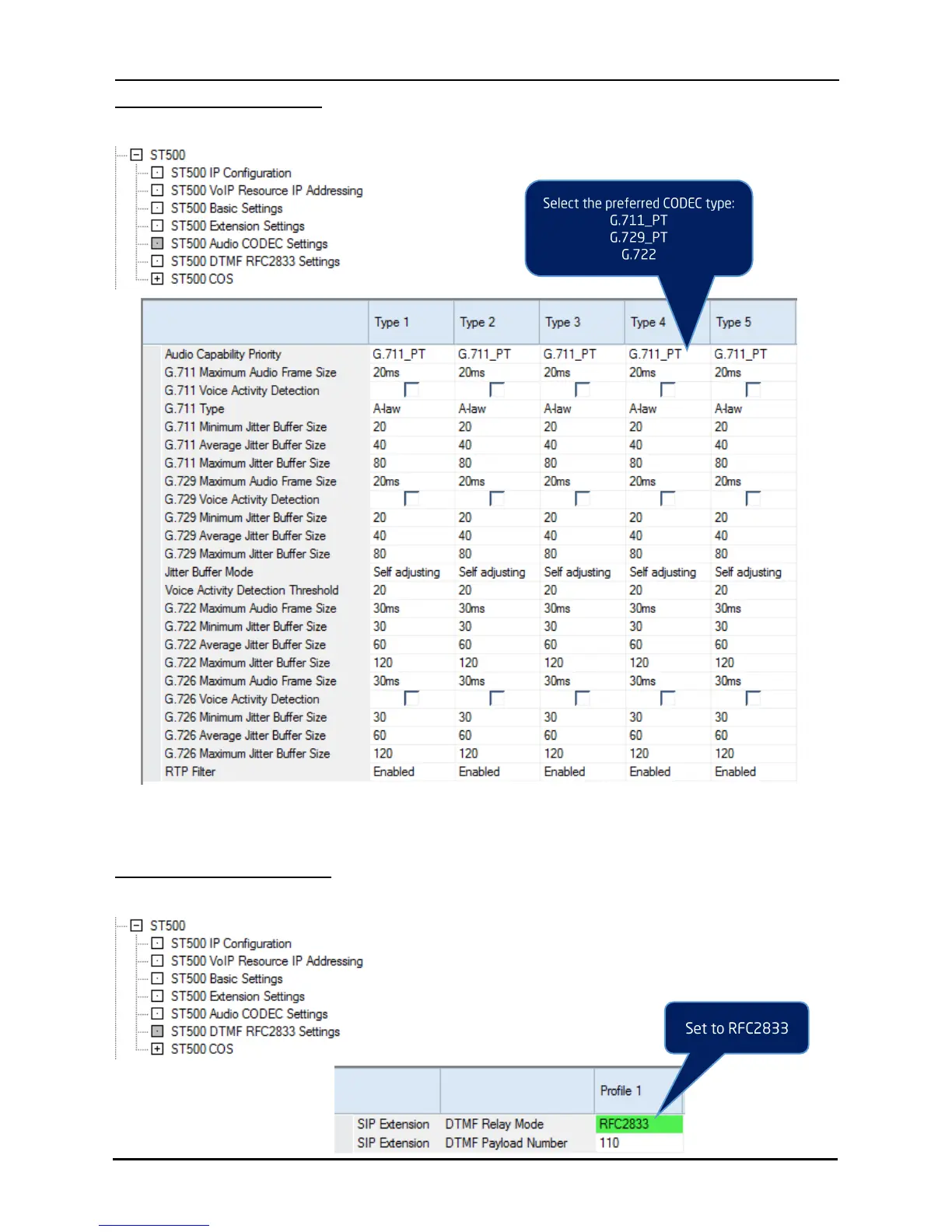

ST500 Audio CODEC Settings
Depending on the Codec Type selected for your UNIVERGE ST500 extensions on the ST500 Extension Settings
screen. Configure the correct codec profile on this screen.
NOTE: The Maximum Audio Frame Size supported by the UNIVERGE ST500 Mobile Client is either 20ms or 40ms, so depending on the
above Audio Capability Priority selection, the correct codecs Maximum Audio Frame Size should also be either 20ms or 40ms (Default is
normally 20ms)
ST500 DTMF RFC2833 Settings
Use Profile 1 to assign the operation of DTMF digit sending for UNIVERGE ST500 calls.
