AB 4071-6 / AB 4071-12
Overview
Product description
The Basis Wireless 868 MHz is an intel-
ligent connection unit for single room
control for both surface heating and
surface cooling systems. The Wireless
System 868 MHz is comprised of the
Thermostat Wireless AR 4070 SF / KF /
KF2E and the Actuator A 4004. The 24 V
transformer supplies operating voltage
to the Basis Wireless and the connected
Actuators. The actuators are, then, con-
trolled through the Basis Wireless by
the cable-free connection of the wire-
less thermostats. The integrated inter-
face of the Basis Wireless allows for ad-
ditional functionality through extension
modules at any time.
The Wireless System 868 MHz provides
comfortable and simple single room
control for multiple heating zones. The
Wireless System 868 MHz is appropriate
for new construction or for retrofit-
ting privately owned homes with ex-
isting installations. The installation of
a wireless system is simplified through
the cable-free installation of the Wire-
less Thermostats. The specially coded
wireless data transmission ensures the
clear transmission of data in almost all
areas of application. The user-friendly
plug/clamp connections minimise the
required installation time of actuators.
The modular structure of the Basis unit
allows for extension of the system at
any time.

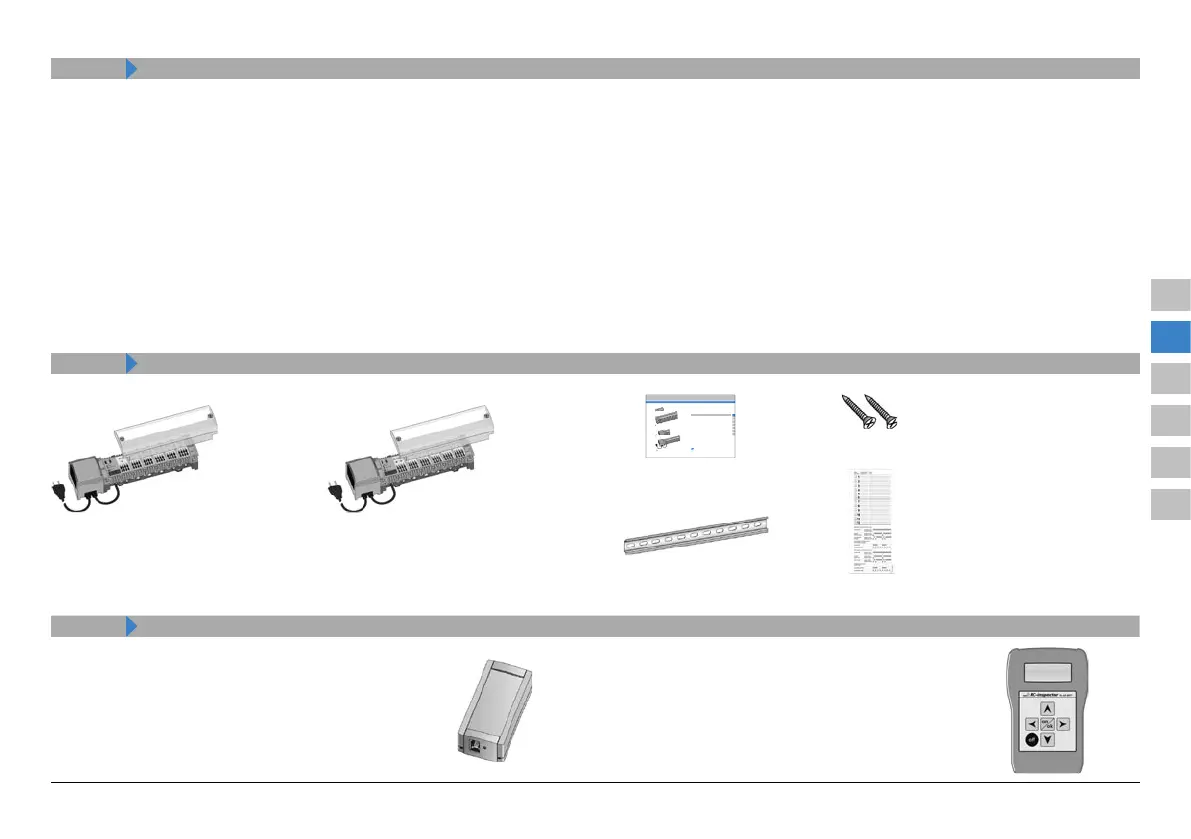

Scope of supply
2 x screws
1 x Basis Wireless
868 MHz, 6 rooms,
AB 4071-6
1 x Basis Wireless
868 MHz, 12 rooms,
AB 4071-12
1 x user manual
1 x room schematic
1 x mounting bracket
Basis AB 4001-1
Basis AB 4001-6
INHALT
Vorwort .......................................2
Übersicht .....................................2
Produktbeschreibung ..............2
Heizen/Kühlen-Funktion .........2
Infosymbole .............................2
Das System 24 V .......................3
Systembeschreibung ...............3
Sicherheitshinweis ...................3
Das System 230 V .....................3
Sicherheit ....................................4
Sicherheitshinweise .................4
Lieferumfang 230 V ................4
Lieferumfang 24 V ..................4
Montageanleitung .....................5
Wandmontage .........................5
Montage auf Tragschiene .......5
Netzanschluss 230 V ................6
Anschluss 24 V .........................6
Regleranschluss .......................6
Installation der Regler ............7
Anschluss der Antriebe ...........7
Betriebsanleitung .......................8
Funktionsanzeigen ..................8
Heizprogramme ......................8
Austauschen der Sicherung ....8
Technische Daten .......................9
Technische Daten .....................9
Störbeseitigung .....................10
Systemübersicht .....................11
Anhang .....................................12
Urheberrecht .........................12
Basis AB 2000-1
Basis AB 2000-6
24 V
230 V
Die 230 V / 24 V Systeme sind in Bezug auf Ausstattung und Funktion
weitgehend identisch. Unterschiedliche Eigenschaften sind im gesam-
ten Handbuch durch Symbole eindeutig gekennzeichnet!
HANDBUCH
NL
ESP
IT
FR
GB
DE
RUS
OR
Optional accessories
External Receiver
For increasing the transmission quality by increas-
ing transmission range; overcoming ceiling shields;
or improving reception inside the heating circuit
distributor closet. Includes mounting bracket and
5 m line. Line lengths of up to 20 m are avail-
able; additional voltage supply is not necessary.
Dimensions (mm): H 30, W 54, L 102
Wireless Inspector
(for the Wireless System 868 MHz)
Insures a good radio connection right from the
start. Displays system data in plain text, includ-
ing the radio signal field intensity of the Wireless
Thermostats, actual value, target value, etc.
Voltage supply: 4 x 1.5 V AAA batteries
Dimensions (mm): H 47, W 70, L 125
(not included)
