NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies

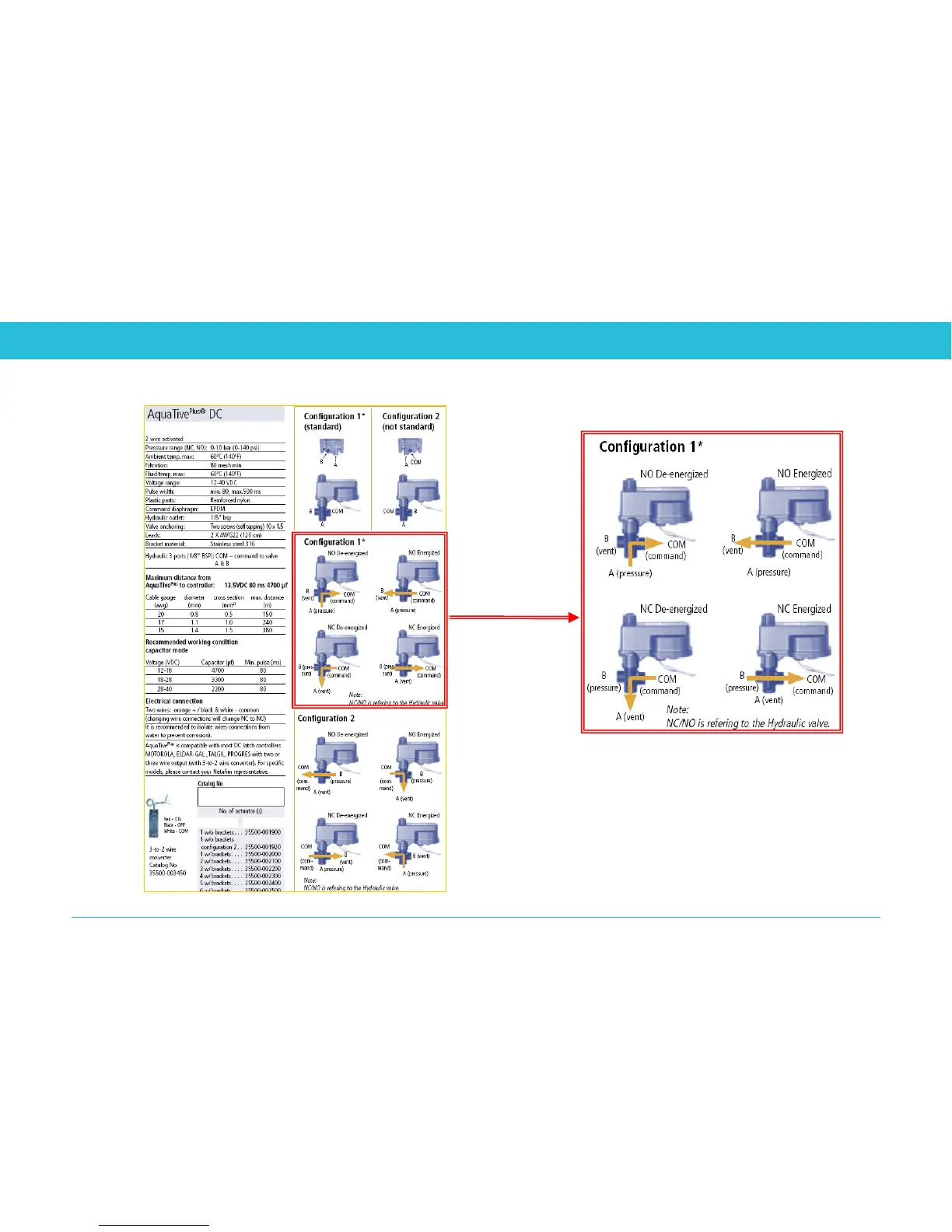

6.4.2 12V DC Latch Hydraulic Connection (Normally Open/Closed)
Electrical connections:
Red wires to top terminal (+)
Black wires to middle terminal (-)
If there is a third white wire, connect to lower terminal (com)
To change from Normally Open to Normally Closed:
-Reverse vent and pressure inputs as described in the picture above.
