Netafim NMC-DC User Manual

NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies
1 2
3

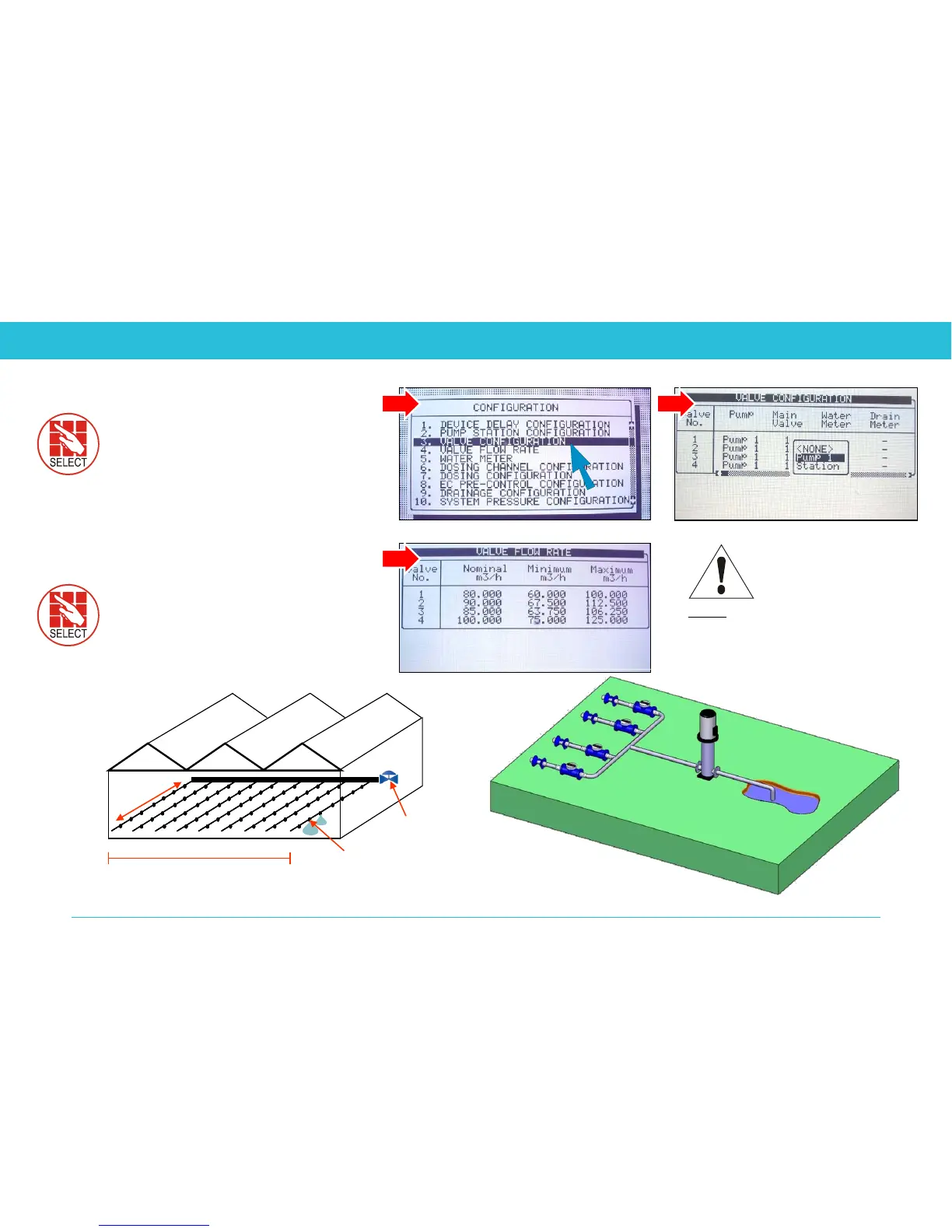

 “3. Valve Configuration”
 Allocate pump, main valve and water meter
(Note: If there is more than 1 pump, refer to
NMC-DC User Manual)
“4. Valve Flow Rate”
 Define exact flow consumption of every valve:
Technician must calculate formula:
[Drippers/lateral x dripper capacity (liters/hr) x # of
laterals/valve] ÷ 1000 = nominal flow of valve (m³/hr)
 Set Min./Max. flow rate limits per valve for alarm
(already defined as 25% by default)
Number of
laterals
Drippers /
Lateral
Dripper
capacity
Irrigation
valve
NOTE: In case of use of multiple water
meters or drain meter, please refer to
Advanced Settings on page 62/64.
9.3 Valve Configuration
9.4 Valve Flow Rate
46
