NETGEAR GS716T Hardware Installation Guide

8
GS716T, GS724T and GS748T Gigabit Smart Switch
GS716T/GS724T Front Panel Configuration
The GS716T/GS724T has 16/24 10/100/1000 Mbps copper port and two dedicated 1000
Mbps SFP fiber ports. Every RJ-45 port is capable of sensing the line speed and negotiating
the operation duplex mode with the link partner automatically

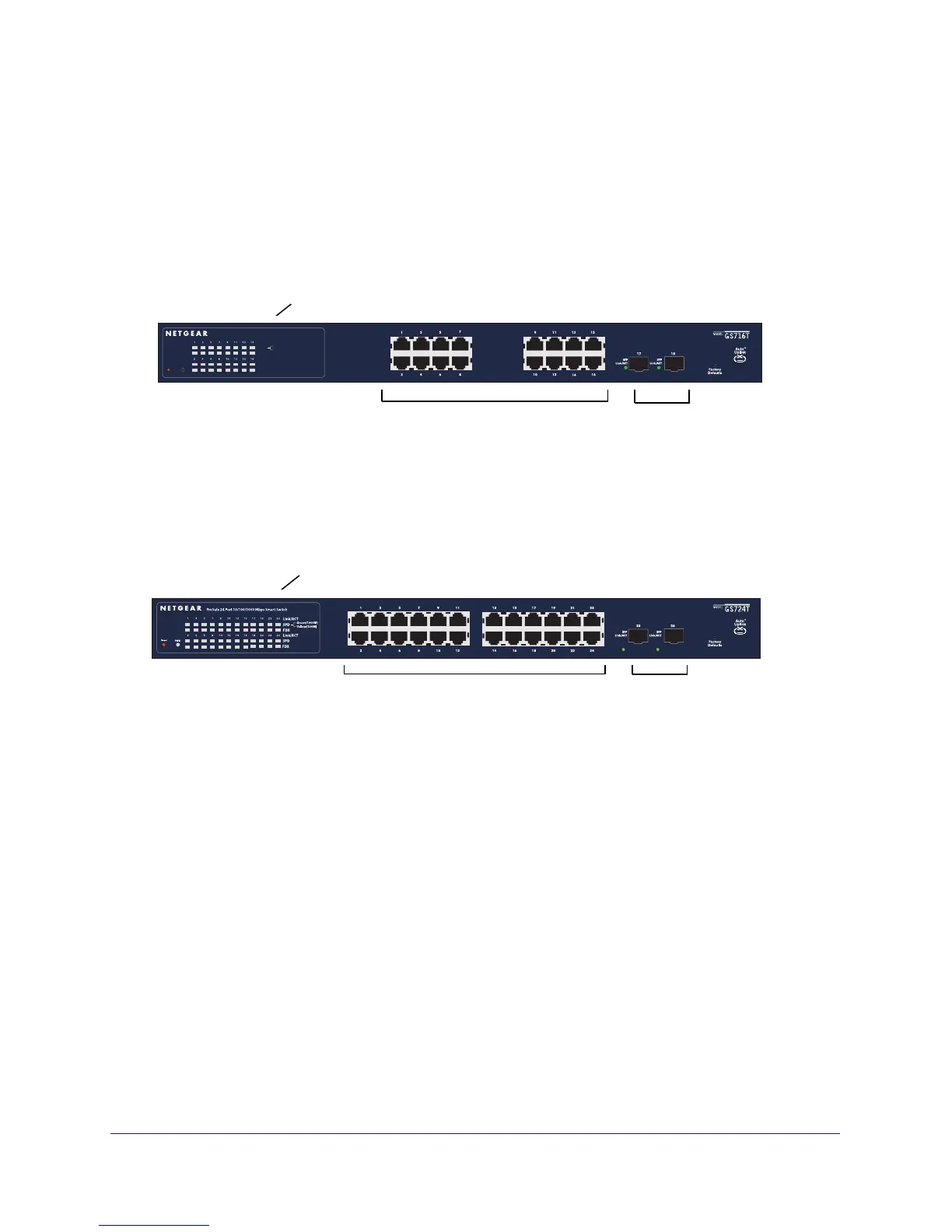

Figure 2 illustrates the NETGEAR GS716T Smart Switch front panel:
System LEDs
SFP Ports
10/100/1000 Mbps Ethernet Ports
Reset
PWR
ProSafe 16 Port 10/100/1000Mbps Smart Switch
Link/ACT
SPD
Green(1000M)
Yellow(100M)
FDX
SPD
Link/ACT
FDX
Figure 2. GS716T Front Panel
Figure 3 illustrates the NETGEAR GS724T Smart Switch front panel:
System LEDs
SFP Ports
10/100/1000 Mbps Ethernet Ports
Figure 3. GS724T Front Panel
The front panel contains the following:
• 1
6/24 RJ-45 connectors for 10/100/1000 Mbps auto sensing Gigabit Ethernet switching
ports.
• T
wo SFP slots for SFP modules supporting 1000 (1000BASE-SX/LX) Mbps SFP.
• Reset bu
tton to restart the device.
• Recessed d
efault reset button to restore the device back to the factory defaults.
• Port LEDs
• System LEDs

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
