NETGEAR WGR614 v5 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v5
7-10 Advanced Configuration of the Router
July 2004 202-10036-01
Using the LAN IP Setup Options
The second feature category under the Advanced heading is LAN IP Setup. This menu allows
configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser
interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

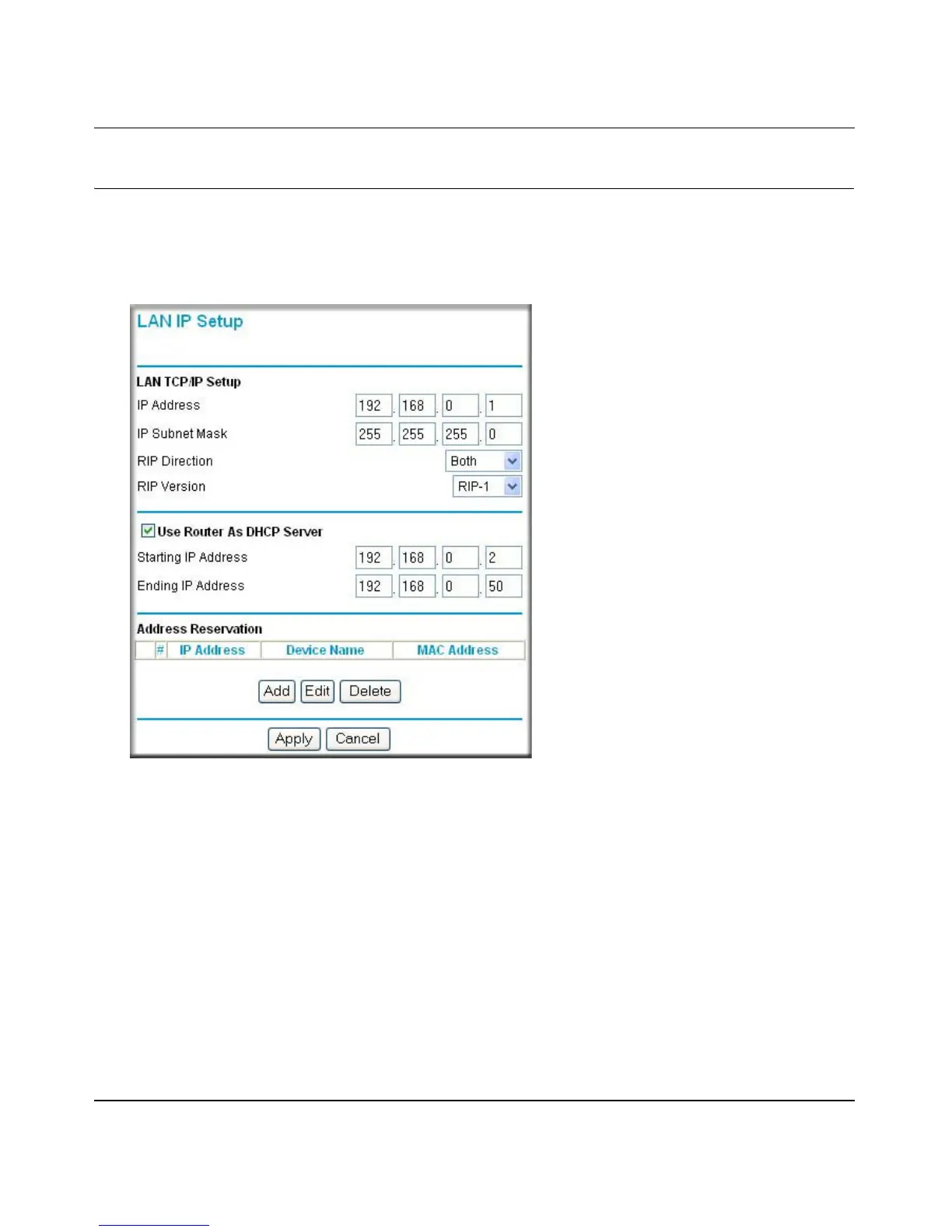

Figure 7-6: LAN IP Setup Menu
Configuring LAN TCP/IP Setup Parameters
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act.as a
DHCP server. The router’s default LAN IP configuration is:
• LAN IP addresses—192.168.0.1
• Subnet mask—255.255.255.0

NETGEAR WGR614 v5 Specifications

General

Brand	NETGEAR
Model	WGR614 v5
Category	Wireless Router
Language	English
