Pump / Drive Assembly Instructions

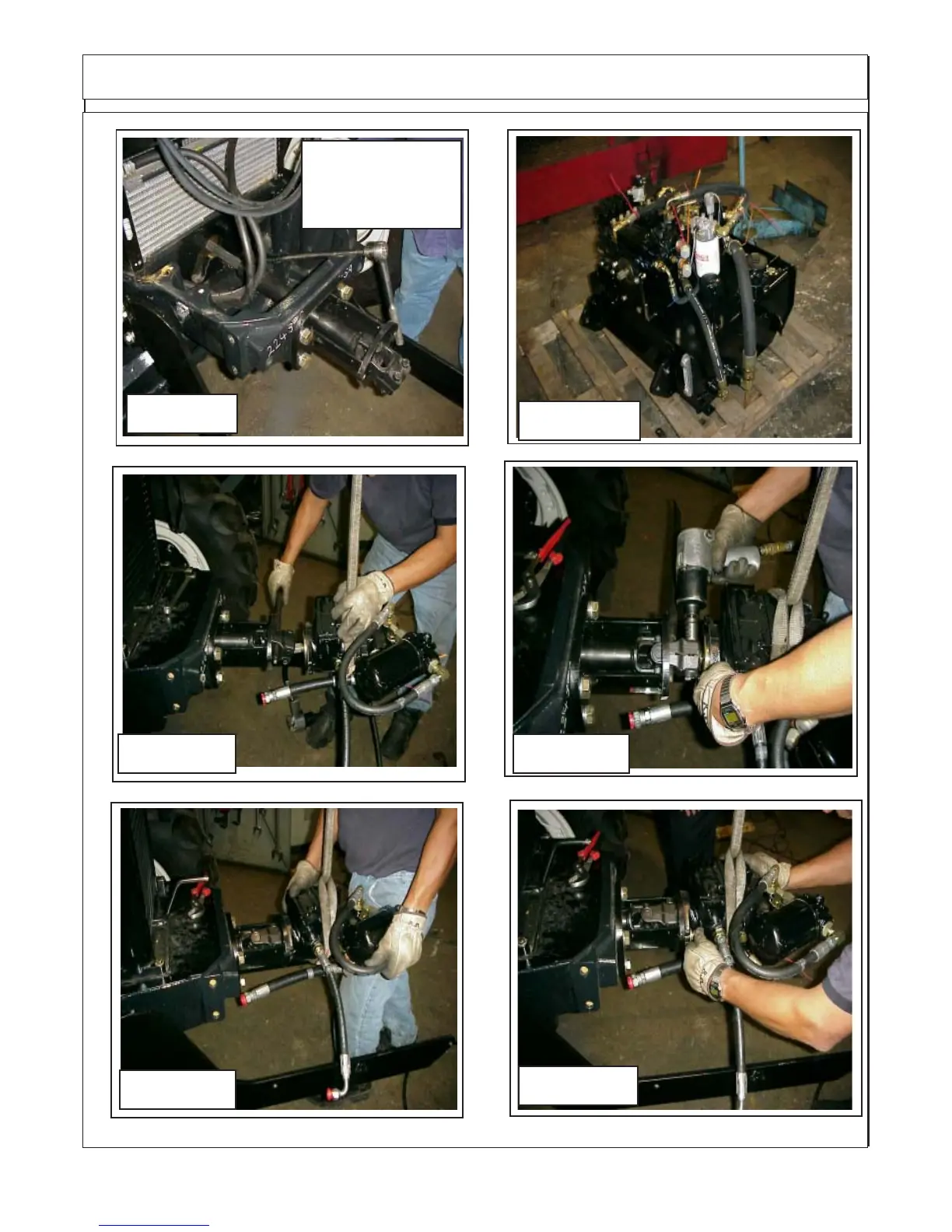

Install Pump
Mounting Bolts
Tighten Clamp Yoke, leave
1/8" to 1/4" gap btween
yoke & pump
Align Splines on Pump Shaft
with Driveshaft clamp yoke.
Push Pump into Pump
Mount until flush
Driveshaft & Pump
Mount Weldment
installed
Figure 11
Figure 13
Figure 14
Figure 15
Figure 16
Pump Shipped w/ Hyd. Tank, Valve
is bolted to Tank
Figure 12

New Holland TS-115A Specifications

General

Engine Power	115 hp
Cylinders	6
Displacement	6.7L
PTO Speed	540/1000 rpm
Hydraulic Flow	18.5 gpm
Rated RPM	2200
Rear tire size	18.4 R34
Fuel	Diesel
Type	Agricultural Tractor
