Nexo PS Series User Manual

PS SERIES HARDWARE SETUP PROCEDURE Page 33/82
7.3.2 PS rigidly mounted on a wall or a ceiling (vertical or horizontal)
Required items
 1 x VNI-UBRK (8 / 10 / 12) (allows all angles to be implemented)
 4 x 12mm diameter screws (not provided)
IMPORTANT
Ensure that the surface – wall or ceiling – is strong enough to hold 4 times PS cabinet
weight and that the screws 12mm diameter and corresponding plugs required to fix the
“U” bracket on the wall or under the ceiling are properly dimensioned.
Procedure
 12mm diameter screws (not provided) are required to secure the “U” Bracket on the wall or
ceiling;
 PS8: remove the two screws on each upper and lower side of PS8;
 PS15R2: remove the four TORX screws holding connector plates on both sides of PS15R2;
 Fill each screw hole with Locktite 243 or equivalent;
 Position the PS inside the “U” Bracket to desired angle; “U” bracket oblong holes must be
properly aligned with panels holes;
 Use the screws and washers from VNI-UBRK kit to connect “U” bracket to cabinet.

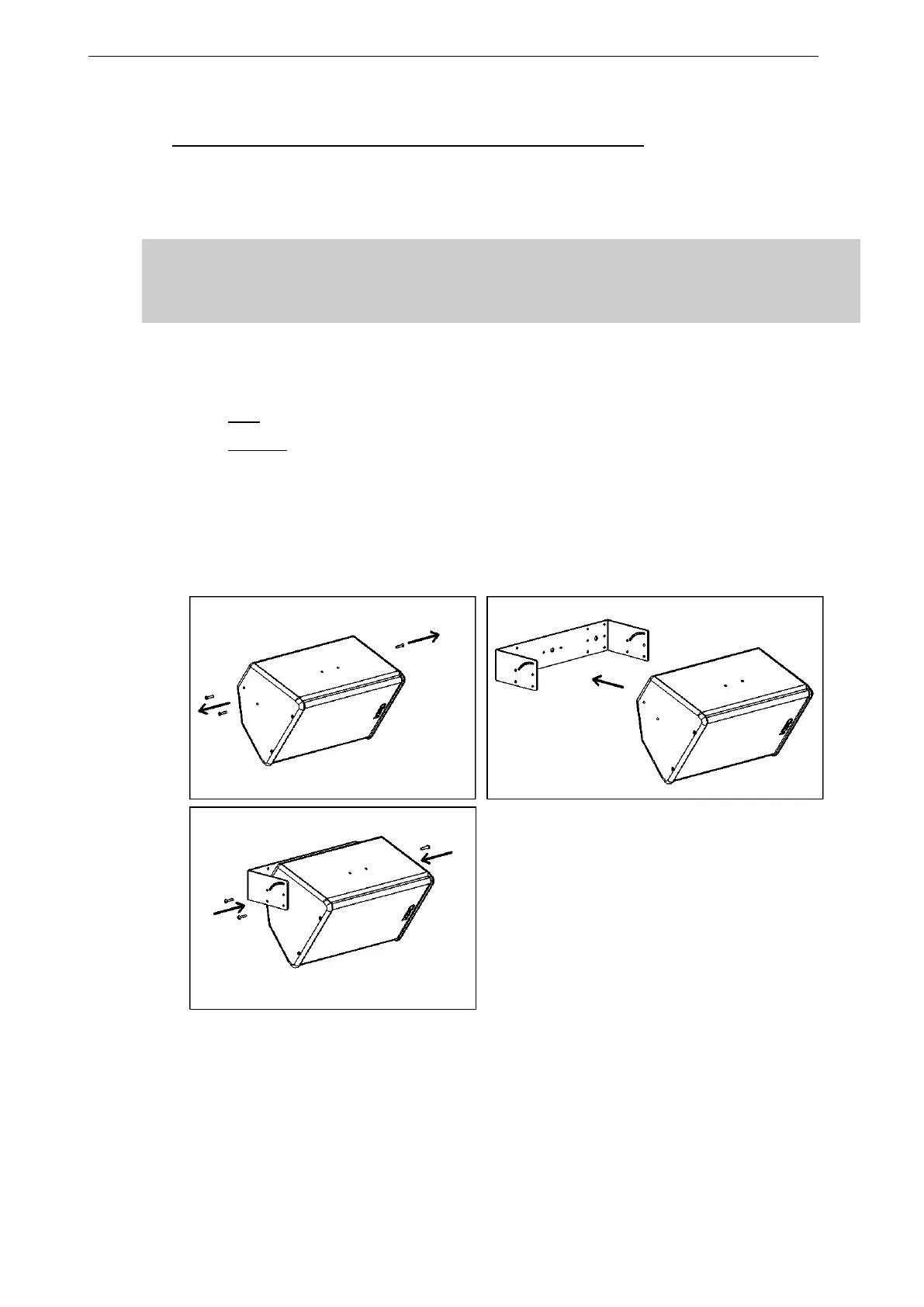

“U” BRACKET MOUNTING PROCEDURE FOR PS8
