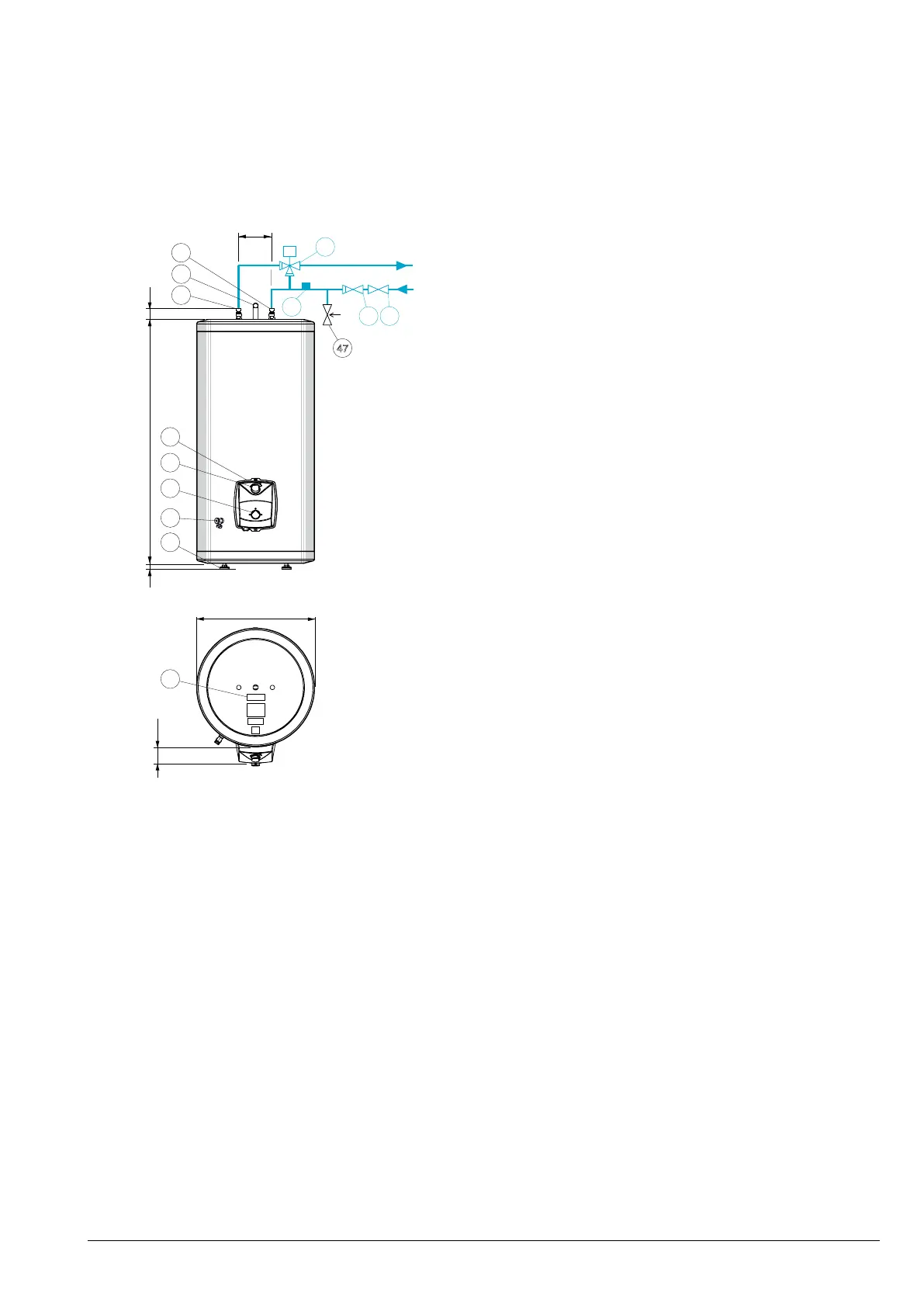

Dimensions and location of components
List of components
8 Drain valve
9 Connector housing containing:
4 Terminal block
5 Combined thermostat and temperature limiter
6 Immersion heater
14 Output selector (only for 6 kW)
10 Lifting eye (only ES 500)
11 Adjustable feet
41 Cold water connection
42 Hot water connection
47 Safety valve Ø 22 mm, 9 bar (supplied)
95 Serial number sign
A Shut-off valve**
B Non-return valve**
C Vacuum valve**
D Mixer valve (if tap water temp exceeds 65 °C)**
** Not supplied
INSTALLATION AND MAINTENANCE INSTRUCTIONS
ES
160, 210, 300, 500
HW
CW
This appliance can be used by children aged from 8 years and above and per-
sons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concer-
ning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Rights to make any design or technical modifications are reserved.
©NIBE 2014.
