Check of number of manoeuvres performed
The number of manoeuvres performed as a percentage of the set limit can be verified by means of the “Maintenance warning” function.
Follow the indications in table 17 for this check.
1. Press and hold [Set] (approx. 3 s)
3s
2. Release [Set] when led L1 starts flashing
L1
3. Press key [▲] or [▼] to move the flashing LED onto the input LED L7 representing the “Maintenance
warning” parameter or L7
4. Press and hold [Set] during steps 5, 6 and 7
5. Wait approx. 3 seconds, after which the LED representing the current level of the parameter
“Maintenance warning” will light up. 3s
6. Press and immediately release the [▲] and [▼] keys.
and
7. The LED that corresponds to the selected level flashes. The number of flashes indicates the percentage
of manoeuvres performed (in multiples of 10%) in relation to the set limit.
For example: with the maintenance warning set on L6 being 10000, 10% is equal to 1000 manoeuvres;
if the LED flashes 4 times, this means that 40% of the manoeuvres have been reached (between 4000
and 4999 manoeuvres).
The LED will not flash if 10% of the manoeuvres has not yet been reached.
8. Release the key [Set]

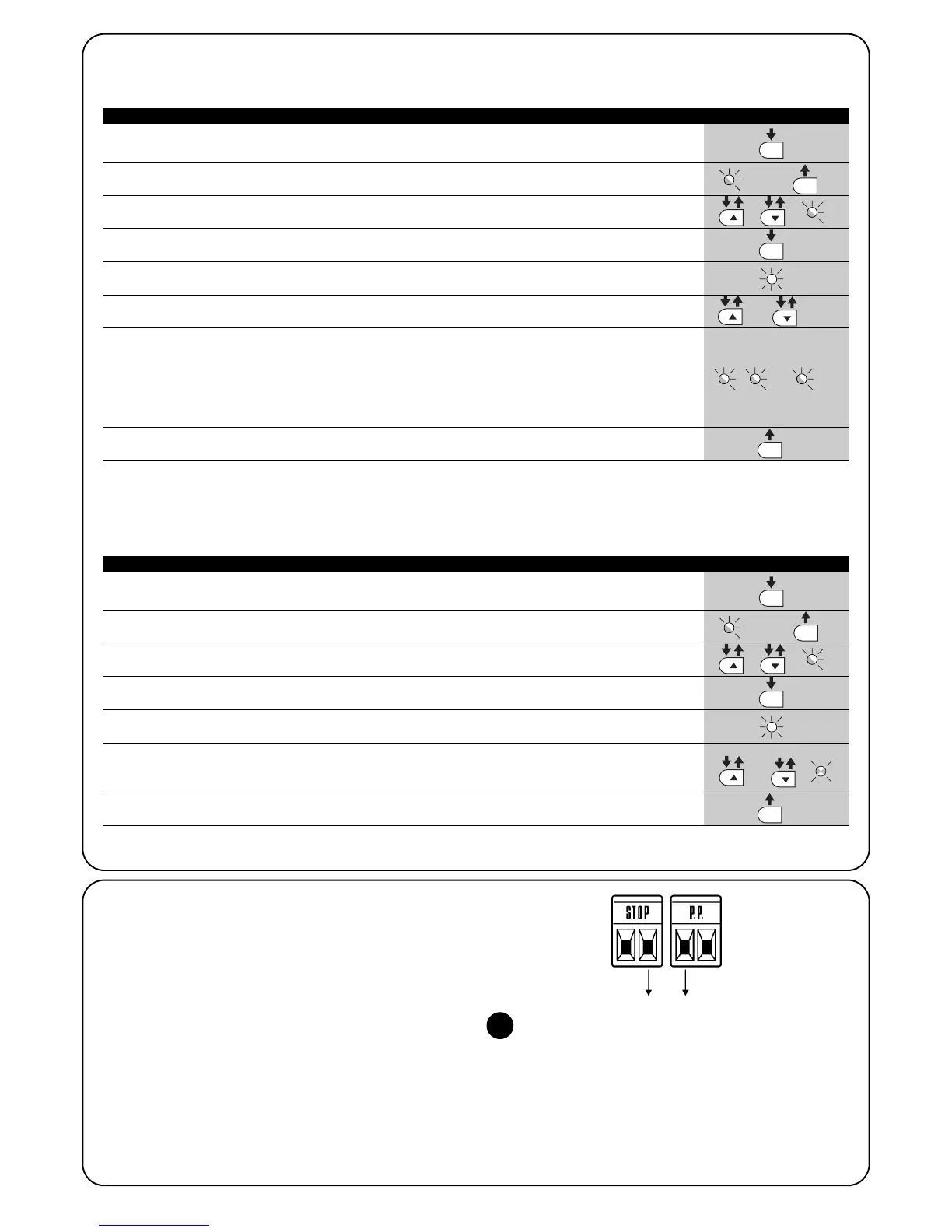

Table 17: check of the number of manoeuvres performed Example
SET
SET
SET
SET
.... n=?
Manoeuvre counter reset
After the maintenance of the system has been performed the manoeuvre counter must be reset.
Proceed as described in table 18.
1. Press and hold [Set] (approx. 3 s)
3s
2. Release [Set] when led L1 starts flashing
L1
3. Press key [▲] or [▼] to move the flashing LED onto the input LED L7 representing the
“Maintenance warning” parameter or L7
4. Press and hold [Set] during steps 5 and 6
5. Wait approx. 3 seconds, after which the LED representing the current level of the parameter
“Maintenance warning” will light up. 3s
6. Press and hold keys [▲] and [▼], for at least 5 seconds and then release.
The LED that corresponds to the selected level flashes rapidly indicating that the manoeuvre
counter has been reset.
and
7. Release the key [Set].
Table 18: manoeuvre counter reset Example
SET
SET
SET
SET
7.5) Connection of Other Devices
If the user needs to feed external devices such as a proximity read-
er for transponder cards or the illumination light of the key-operated
selector switch, it is possible to tap power as shown in Figure 27.
The power supply voltage is 24Vdc -30% - +50% with a maximum
available current of 100mA.
-+
24Vcc
27
