III Names of Parts and Their Functions
1 DS Camera Control Unit DS-L1
- 5 -
III
Names of Parts and Their Functions
1
DS Camera Control Unit DS-L1

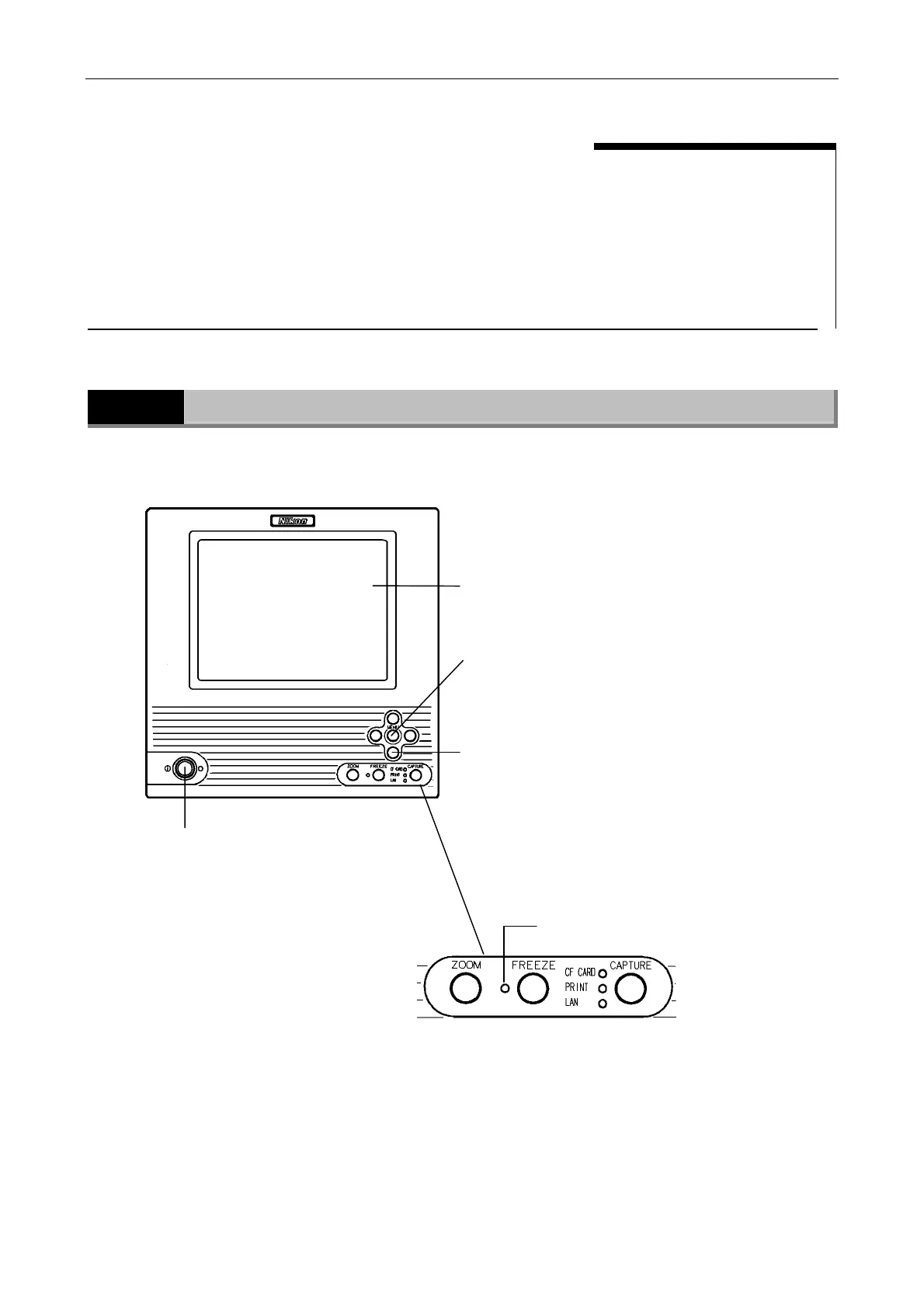

Front of the DS-L1
Internal LCD
1,024 × 768 dots
6.3-inch LCD display
Cursor buttons
Use one of the four cursor buttons to choose an item within
a menu and the MENU button to confirm what you’ve
selected.
MENU button
Press the MENU button to bring up a menu. After a menu is
displayed, the MENU button can be used to confirm a
selected menu command, just like the ENTER button.
POWER switch
This is a push switch.
Press it to turn on the power.
Press again to release it and turn off the
power. When the power is on, the LED
indicator lights and remains on.
ZOOM: Electronic zoom button
FREEZE: Freeze (pause) button
The freeze LED lights when the display is frozen.
CAPTURE: Saves an image to the destination that you selected in
Additional Settings. The destination to which you have saved
or printed is indicated by an LED.
CF CARD / PRINT / LAN
Freeze LED
To Next Page
