Nikon ECLIPSE E800 User Manual

4. Operation of Each Part

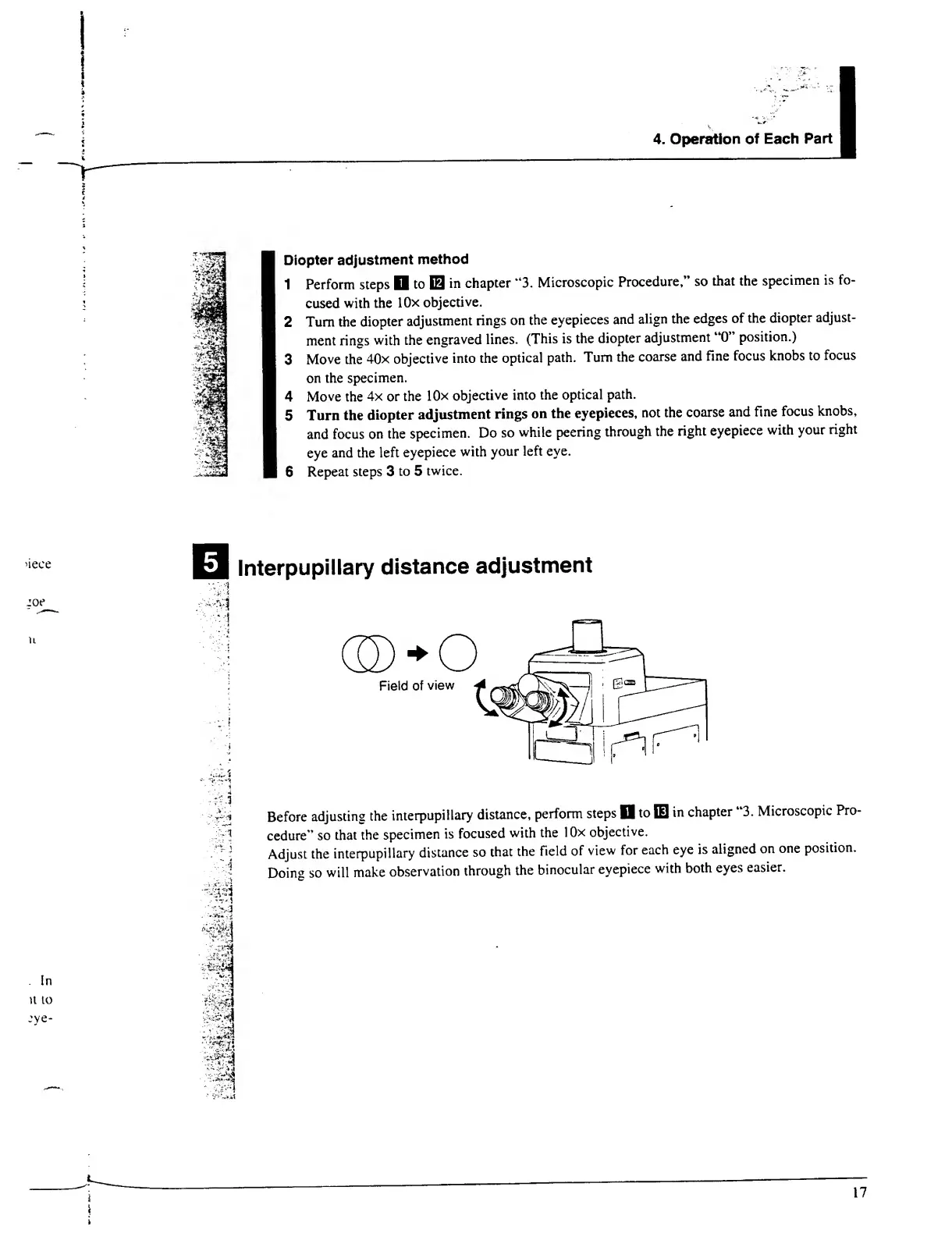

Diopter adjustment method
1 Perform steps H to E in chapter "3. Microscopic Procedure,” so that the specimen is fo¬
cused with the lOx objective.
2 Turn the diopter adjustment rings on the eyepieces and align the edges of the diopter adjust¬
ment rings with the engraved lines. (This is the diopter adjustment 0 position.)
3 Move the 40x objective into the optical path. Turn the coarse and fine focus knobs to focus
on the specimen.
4 Move the 4x or the lOx objective into the optical path.
5 Turn the diopter adjustment rings on the eyepieces, not the coarse and fine focus knobs,
and focus on the specimen. Do so while peering through the right eyepiece with your right
eye and the left eyepiece with your left eye.
6 Repeat steps 3 to 5 twice.
I*] Interpupillary distance adjustment
r--s Before adjusting the interpupillary distance, perform steps D to El in chapter “3. Microscopic Pro-
:1 cedure” so that the specimen is focused with the lOx objective.
■ Adjust the interpupillary distance so that the field of view for each eye is aligned on one position.
Doin° so will make observation through the binocular eyepiece with both eyes easier.
