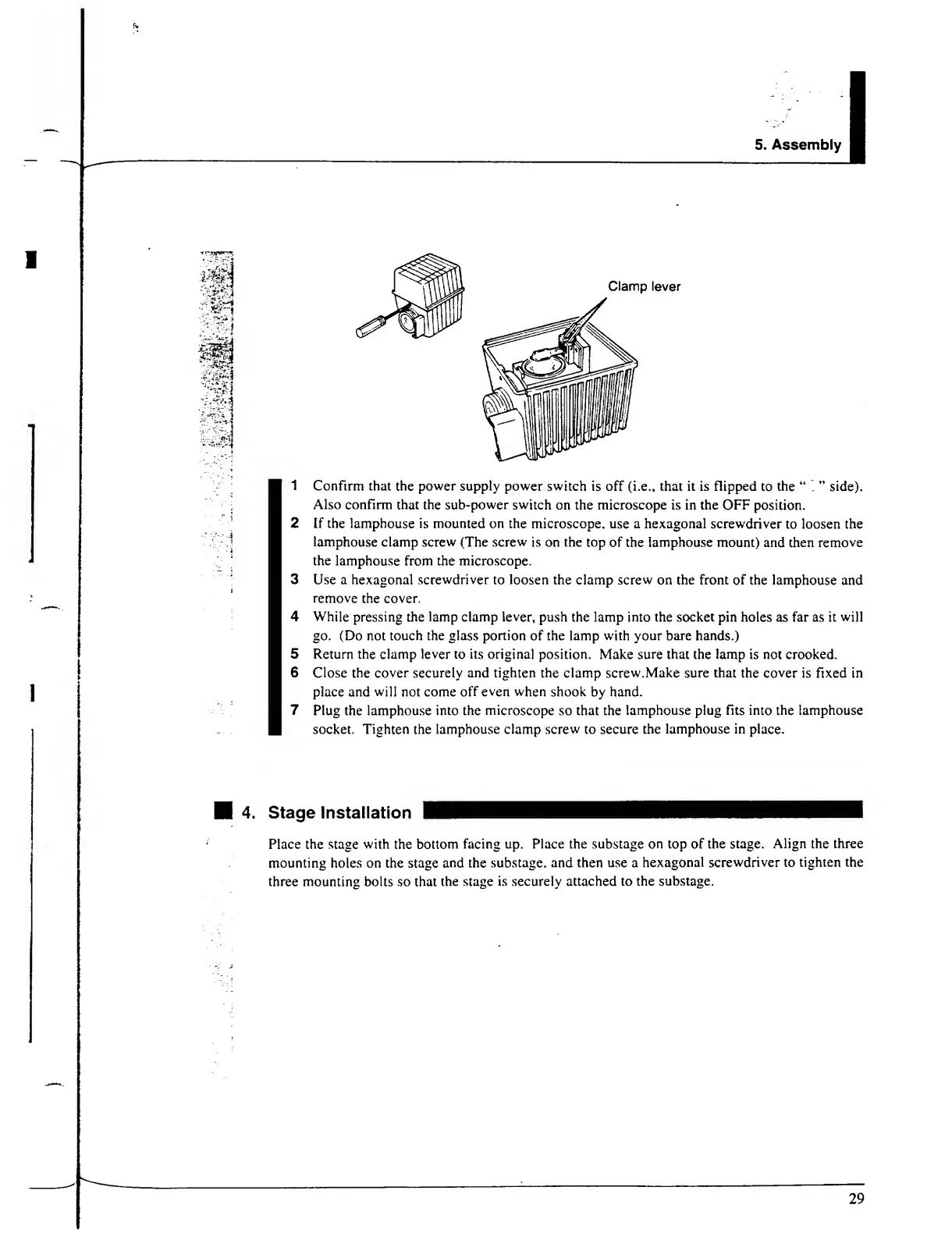

5. Assembly
1 Confirm that the power supply power switch is off (i.e., that it is flipped to the “ ' ” side).
Also confirm that the sub-power switch on the microscope is in the OFF position.
2 If the lamphouse is mounted on the microscope, use a hexagonal screwdriver to loosen the
lamphouse clamp screw (The screw is on the top of the lamphouse mount) and then remove
the lamphouse from the microscope.
3 Use a hexagonal screwdriver to loosen the clamp screw on the front of the lamphouse and
remove the cover.
4 While pressing the lamp clamp lever, push the lamp into the socket pin holes as far as it will
go. (Do not touch the glass portion of the lamp with your bare hands.)
5 Return the clamp lever to its original position. Make sure that the lamp is not crooked.
6 Close the cover securely and tighten the clamp screw.Make sure that the cover is fixed in
place and will not come off even when shook by hand.
7 Plug the lamphouse into the microscope so that the lamphouse plug fits into the lamphouse
socket. Tighten the lamphouse clamp screw to secure the lamphouse in place.
■ 4. Stage Installation
Place the stage with the bottom facing up. Place the substage on top of the stage. Align the three
mounting holes on the stage and the substage, and then use a hexagonal screwdriver to tighten the
three mounting bolts so that the stage is securely attached to the substage.
29
