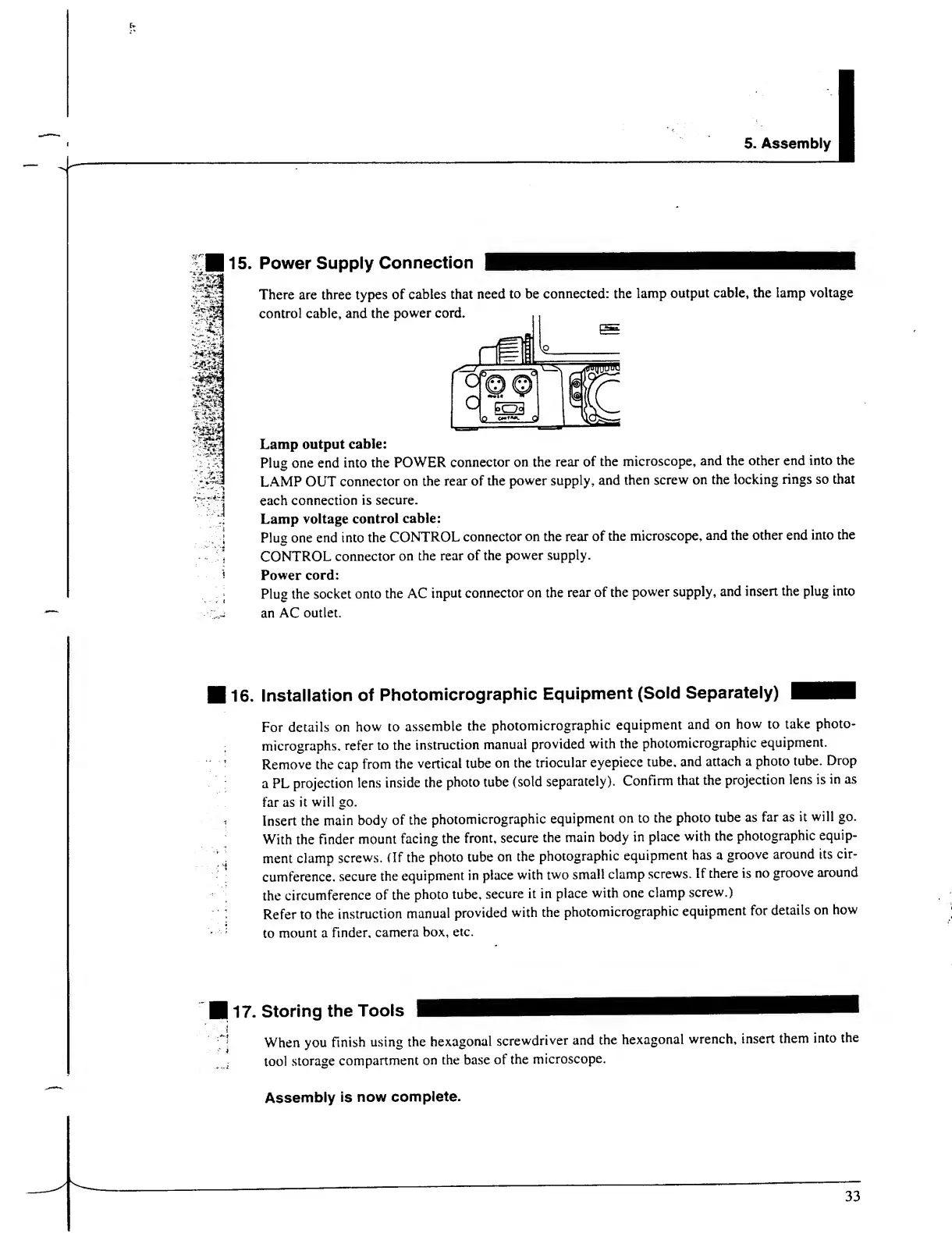

5.
Assembly
Power
Supply
Connection
There
are
three
types
of
cables
that
need
to
be
connected:
the
lamp
output
cable*
the
lamp
voltage
Lamp
output
cable:
Plug
one
end
into
the
POWER
connector
on
the
rear
of
the
microscope,
and
the
other
end
into
the
LAMP
OUT
connector
on
the
rear
of
the
power
supply,
and
then
screw
on
the
locking
rings
so
that
each
connection
is
secure.
Lamp
voltage
control
cable:
Plug
one
end
into
the
CONTROL
connector
on
the
rear
of
the
microscope,
and
the
other
end
into
the
CONTROL
connector
on
the
rear
of
the
power
supply.
Power
cord:
Plug
the
socket
onto
the
AC
input
connector
on
the
rear
of
the
power
supply,
and
insert
the
plug
into
an
AC
outlet.
■
16.
Installation
of
Photomicrographic
Equipment
(Sold
Separately)
For
details
on
how
to
assemble
the
photomicrographic
equipment
and
on
how
to
take
photo¬
micrographs.
refer
to
the
instruction
manual
provided
with
the
photomicrographic
equipment.
Remove
the
cap
from
the
vertical
tube
on
the
triocular
eyepiece
tube,
and
attach
a
tube.
Drop
a
PL
projection
lens
inside
the
tube
(sold
separately).
Confirm
that
the
projection
lens
is
in
as
far
as
it
will
go.
t
Insert
the
main
body
of
the
photomicrographic
equipment
on
to
the
tube
as
far
as
it
will
go.
With
the
finder
mount
facing
the
front,
secure
the
main
body
in
place
with
the
photographic
equip¬
ment
clamp
screws.
(If
the
tube
on
the
photographic
equipment
has
a
groove
around
its
cir¬
cumference.
secure
the
equipment
in
place
with
two
small
clamp
screws.
If
there
is
no
groove
around
the
circumference
of
the
tube,
secure
it
in
place
with
one
clamp
screw.)
Refer
to
the
instruction
manual
provided
with
the
photomicrographic
equipment
for
details
on
how
to
mount
a
finder,
camera
box,
etc.
H17.
Storing
the
Tools
H
When
you
finish
using
the
hexagonal
screwdriver
and
the
hexagonal
wrench,
insert
them
into
the
tool
storage
compartment
on
the
base
of
the
microscope.
Assembly
is
now
complete.
33
