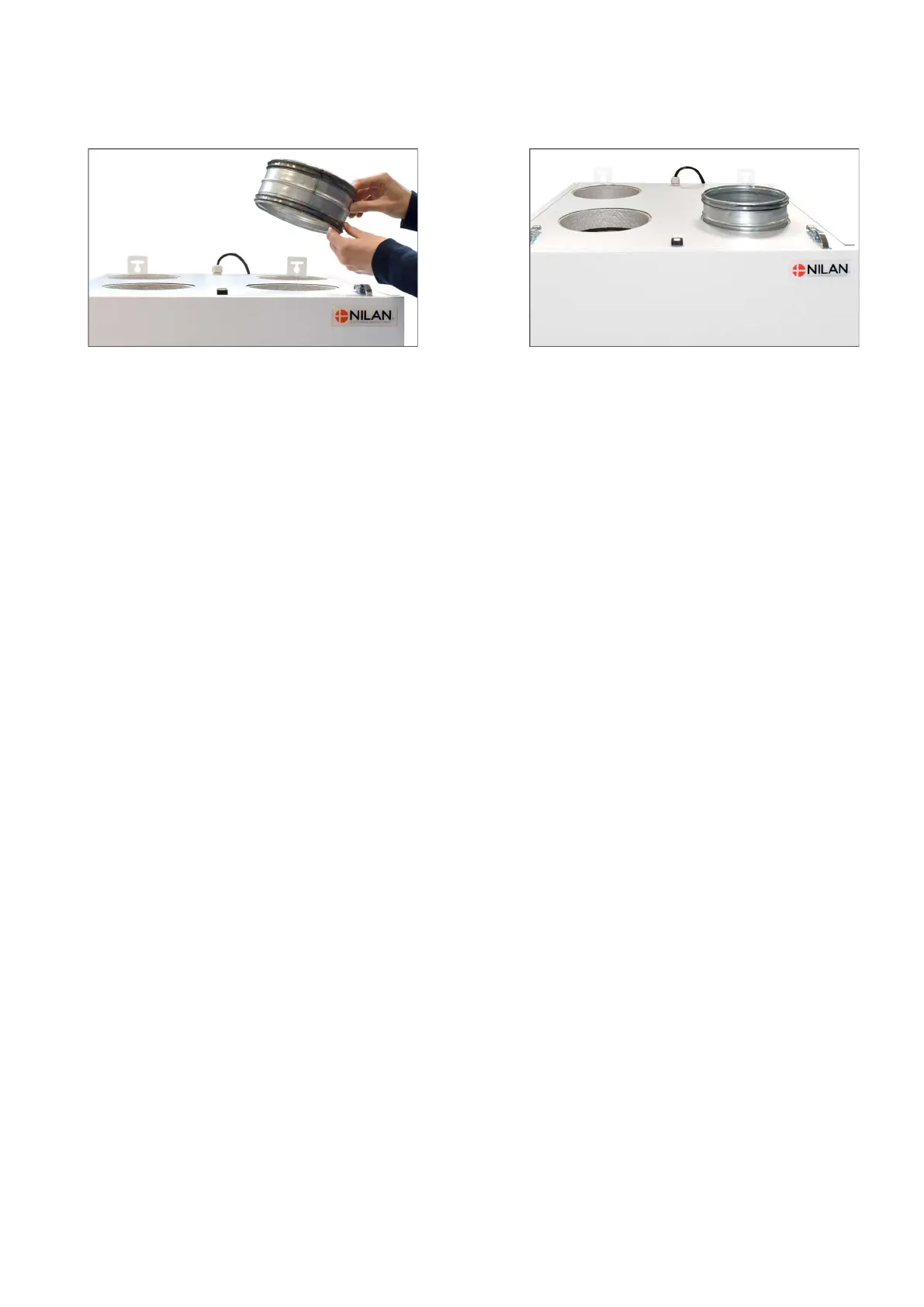

Duct connections

An inlet ring needs to be fitted (not supplied by Nilan).

1. Use size Ø160mm inlet ring. 2. Press the inlet rings firmly into the ventilation nozzles.

Table of Contents2
General Information4
Safety4
Power Supply4
Introduction4
Documentation4
Unit Type5
Product Description5
Dimensional Drawing Comfort 350 Top6
Dimensional Drawing Comfort 350 Top Polar7
Functional Block Diagram8
Accessories9
Electrical Pre-Heating Element for Frost Protection of the Unit9
Electrical After-Heating Element for Duct Installation9
Water After-Heating Element Incl. Control System for Duct Installation9
EM-Box9
DTBU Damper9
Expansion PCB10
CTS602 Connection Box10
Fire Connection Box10
Connection Box for User Selection and EM-Box Together with Fire Automation System10
Heating Cable10
Vibration Absorbers10
Flexible Sound Damper11
Pollen Filter11
Cooker Hood Filter Box11
Extension Cable HMI Control Panel11
Functional Cable11
Gateway with App Option11
Set-Up12
Mounting12
Positioning of the Ventilation Unit12
Top Unit12
Mounting the Ventilation Unit12
Duct Connections13
Electrical Installation14
Electrical Connections14
Safety14
Connections Overview14
Electrical Connection Unit14
Power Supply14
Control Panel15
HMI User Panel15
Wall Bracket15
Electrical Connection Accessories16
CTS602 Connection Box16
Functional Cable16
User Selections 1 and 2 (Cooker Hood)17
Modbus18
Fire Thermostat / External Fire Automation System19
EM-Box (Damper Solution)20
DTBU (Damper Option)21
External Pre-Heating Element22
Installation of Expansion PCB on CTS602 Light Circuit Board23
Electrical after Heating Element24
Water after Heating Element25
Joint Alarm26
Plumbing Installation27
Connection of Water Trap27
Water After-Heating Element - Duct Installation28
Fire Automation System29
General Information29
Safety29
Usage29
Electrical Connection Fire Automation System30
Connection of Fire Damper30
Connecting Two Fire Dampers31
Connection Box for User Selection and EM-Box/Dtbu Simultaneous with Fire Automation System31
Alarm Code32
Start-Up and Annual Testing32
Schedule for Functional Testing33
Ventilation Installation34
Duct System34
Legislation34
Ducts34
Ventilation Unit34
Extract Air35
Supply Air35
Roof Terminals35
Installation Example35
Balancing36
Important Information36
