Alarm code

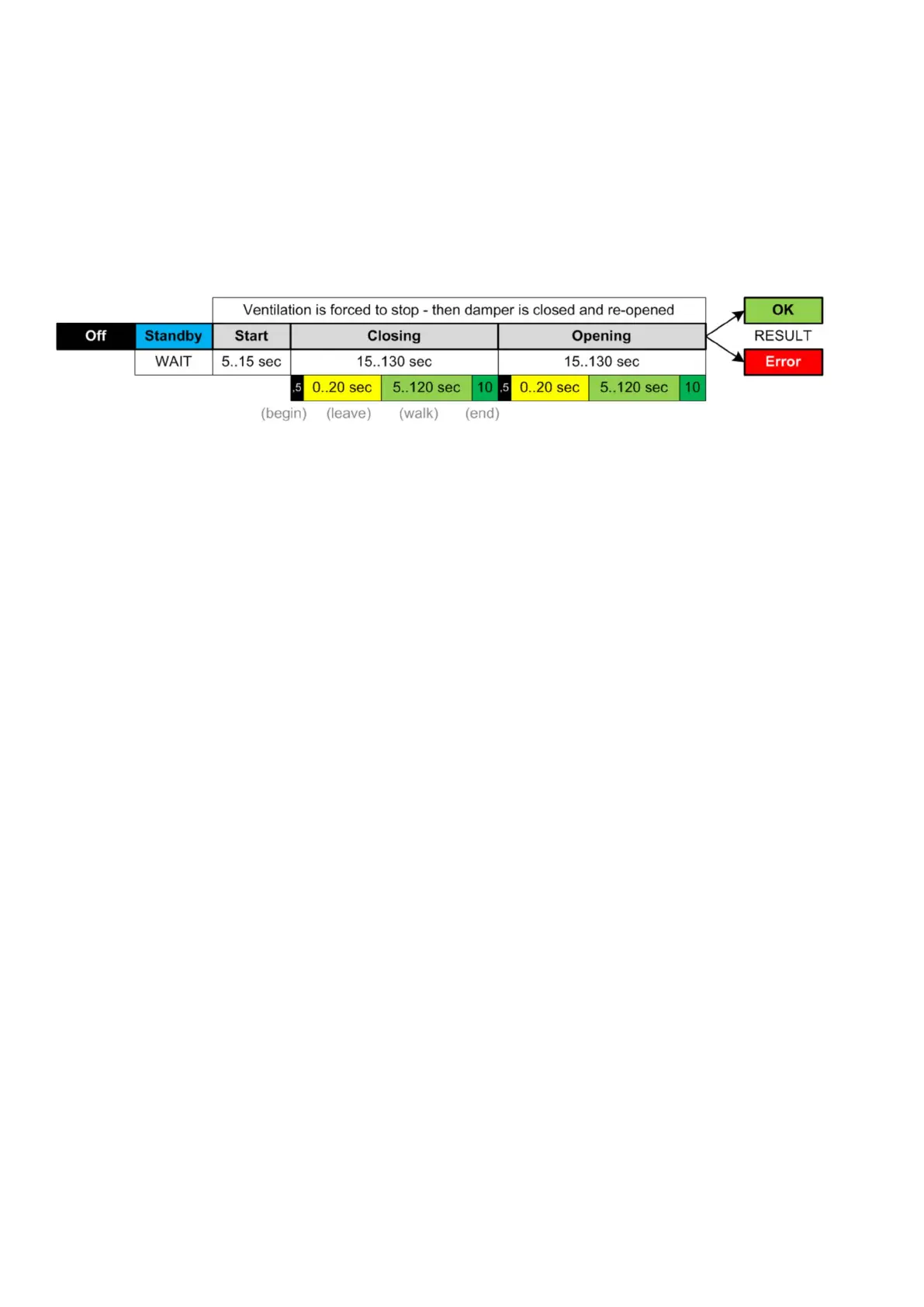

Set an alarm 96 - "Damper test" if a position (open / closed) has not been fulfilled within the maximum moving time of
120 seconds.
The test will fail if:
• Current starting position (open) is incorrect
• Current position (open and closed) has not altered within the first 12 seconds of moving in each direction
• The measured moving time does not range between 15 and 130 seconds
Automatic test sequence
Start-up and annual testing
It is necessary to carry out a complete test of functions after installation of the fire protection automation system. If everything has
been installed in accordance with the guidelines and regulations, and the test reveals no errors, the display will show "OK".
If the test fails, the display will show "ERROR". The fault must then be rectified. The ventilation unit will shut down as in case of fire. The
test must be performed again until "OK" is displayed in the menu.
For the overall system, all requirements in DS 428 must be met before a delivery can be made.
Manual test of fire and smoke dampers
You should checked that all dampers change position physically. See the supplier's instructions.
Connect the fire damper switches for, respectively, open and closed position to two digital inputs on the circuit board (see wiring
diagram).
Fire thermostat
Temperature sensor is warmed up with fan heater. See the supplier's instructions.
Release-signal to ventilation unit
During a fire the ventilation unit will shut down and the fire and smoke dampers will close. Following that, the alarm can only be can-
celled manually on the control panel. You will then be able to restart the unit.
Operating signal from ventilation unit
An active signal should cause all dampers to activate (open) if there are no alarms. If there is no signal, the unit will act as in case of fire
and all dampers will close.
