LUBRICATING THE MACHINE
Once a month, pump a small amount of grease into each grease tting on the machine until grease seeps out around the bearings. See Figure 4-2.
Grease tting locations (or apply grease to) (AA):
• Squeegee Caster Wheel Axle and Pivot
• Steering Chain
• Squeegee mount angle adjustment knob threads
Once a month, apply light machine oil or synthetic lubricant spray to lubricate (AB):
• Side Blade Down Stop Adjustment Threads
ELECTROMAGNETIC BRAKE
CAUTION!
To avoid uncontrolled machine movement, block the
wheels and ensure machine is on a level surface
before disengaging the electromagnetic brake.
See Figure 4-3. The Drive Wheel Assembly (4) has a built in
electromagnetic brake that is engaged whenever the machine
power is OFF or the Drive Pedal (3) is not being pressed. This
brake can be manually overridden if necessary by inserting a
medium to large screwdriver behind the Yoke (AC) as shown.
This should only be done in the event you need to push or pull the
unit a short distance.

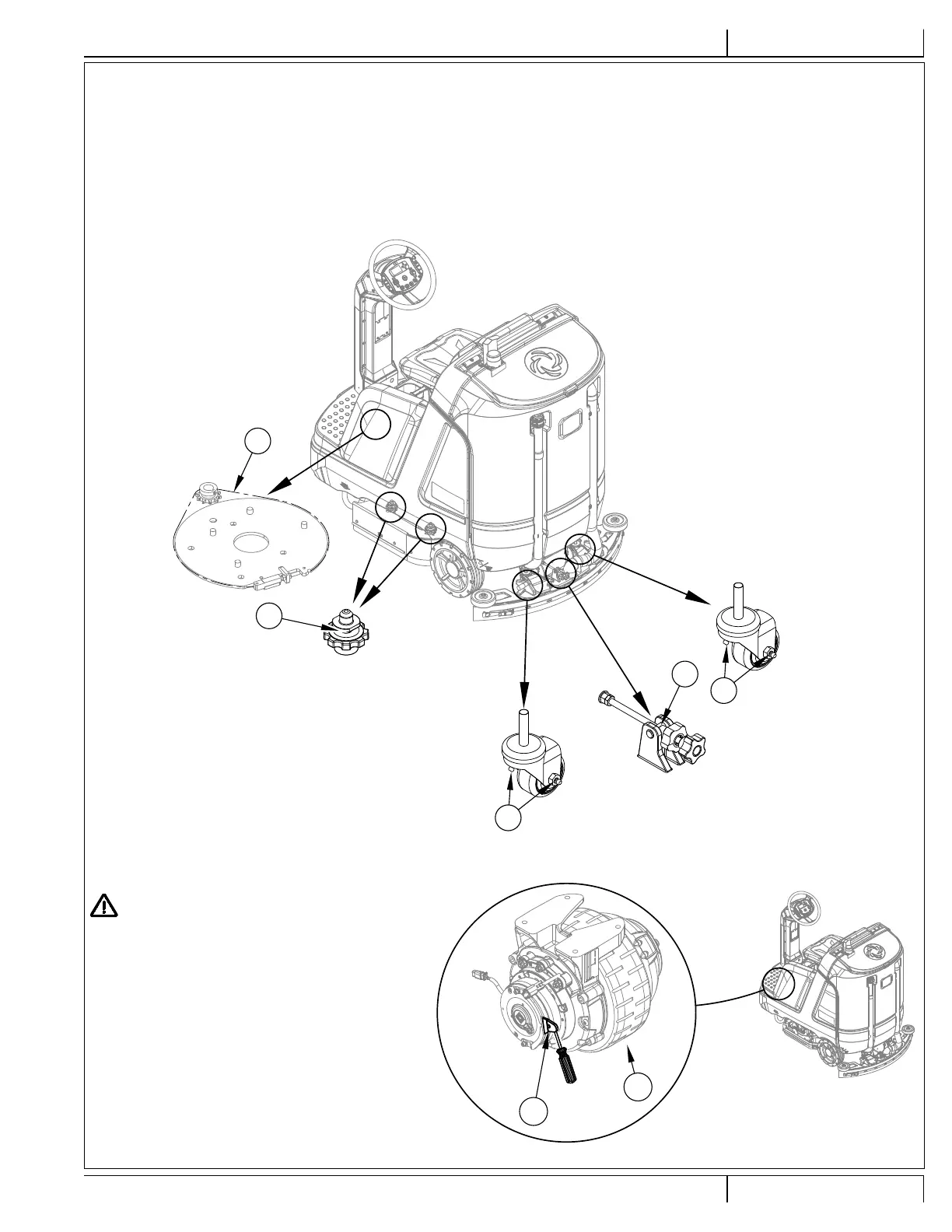

FIGURE 4-2
FIGURE 4-3
AC
4
AA
AA
AA
AA
AB
