FAULT CODE HISTORY

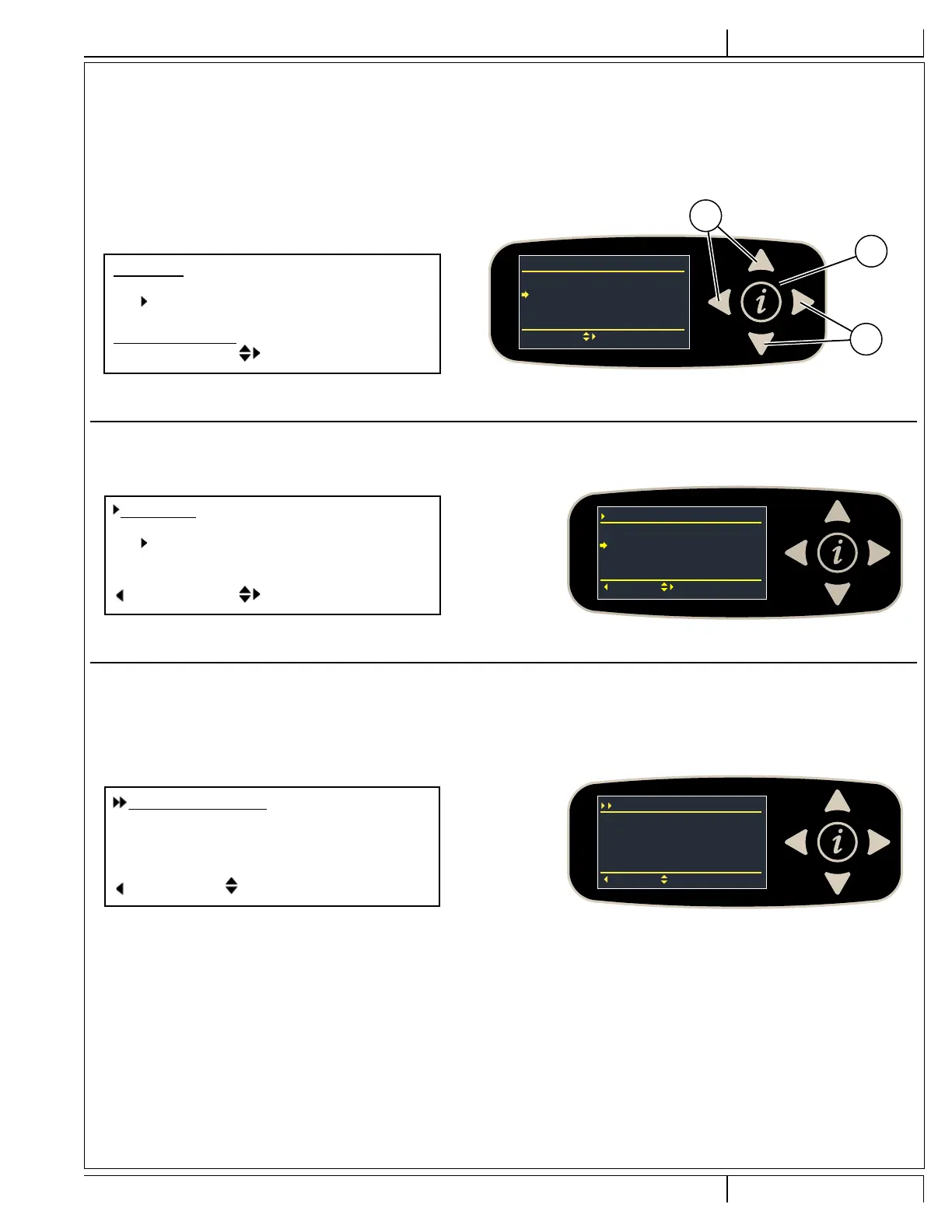

Every fault code that occurs is recorded by the machine and kept in a history log. See Figures 5-2 - 5-4. To view the fault history press the
Information Switch (B) to bring up the information menu. Use the four Navigation Arrows (B1) (up, down, left & right) to move through the menu
and the information switch to exit the menu.
Scroll down to Faults, right arrow to select.
Menu [Menu] ________________________________
Hours [Hours]
Faults [Faults]
Keys [Keys]
Options [Options] _______________________
Exit [i Exit]
Select [Select]
Scroll down to Fault History, right arrow to select.
Faults [Faults] ______________________________
Active Faults [Active Faults]
Fault History [Fault History]
___________________________________________
Back [Back] Select [Select]
Each fault is displayed along with; (Nx) where “N” is the number of times
the fault has occurred, the timestamp shows the most recent occurrence
and description. Use the up and down arrows to scroll through the list of
faults.
Fault History [Fault History] __________________
Fault Code (Nx) Drive Hours
Fault Code Description
___________________________________________
Back [Back] Scroll [Scroll]
B
Menu
Hours
Faults
Keys
Options
i Exit
Select
B1
B1
Fault History
1) 1-003 (3x) 0007.7
Back
Scroll
(1/4)
K1 Contact Weld
2) 1-011 (2x) 0090.9
CAN Bus 1
Faults
Active Faults 0
Fault History 5
Back
Select
FIGURE 5-2
FIGURE 5-3
FIGURE 5-4
