A - 8 Advance SC5000 - 56091219 1/2021
INSTRUCTIONS FOR USEA - ENGLISH

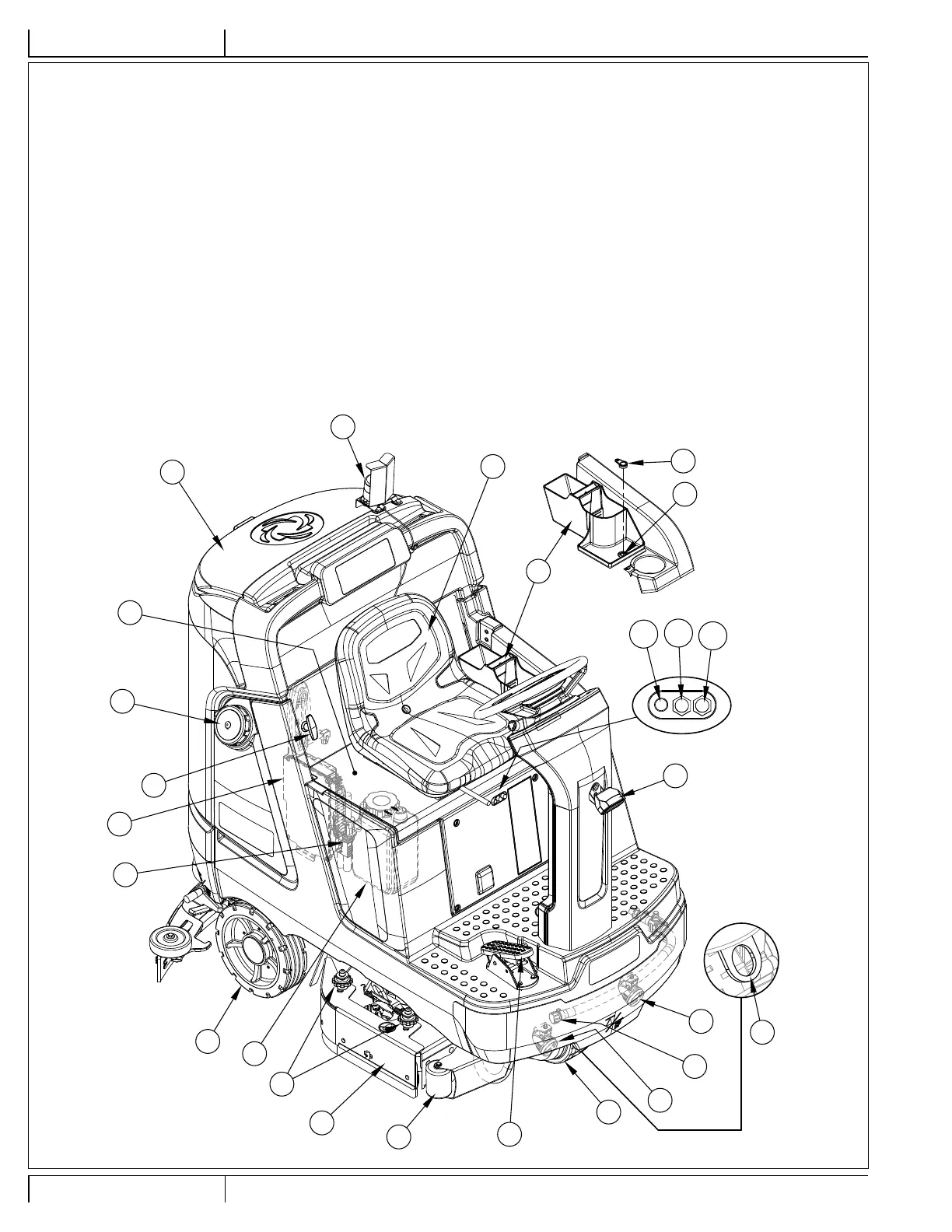

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item
shown on these pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in the
text.
1 Recovery Tank Cover
2 Operator’s Seat
3 Drive Pedal
4 Drive Wheel
5 Rear Wheel
6 Battery Compartment (under seat)
7 Warning Beacon
8 Detergent Cartridge (EcoFlex models only)
9 Storage Box
10 Circuit Breakers
10a Drive Controller 70 Amp (CB2)
10b Control Board 5 Amp (CB1)
10c Control Board 5 Amp (CB3)
11 Headlights (optional)
12 Blue Light (optional)
13 Solution Tank Drain Hose
14 Front Roller Bumper
15 Scrub Deck
16 Side Blade Assembly Removal Knobs
17 Solution Tank Fill
18 Onboard Battery Charger (optional)
19 Machine Battery Connector
20 Battery Compartment Latch
21 Tie-Down Location (1 front)
22 SmartKey™ Reader
39 Magnetic SmartKey™
19
20
39
1
2
3
4
5
8
15
10a
10c
10b
12
11
16
11
13
6
7
17
18
14
21
22
9
To Next Page
