LUBRICATING THE MACHINE

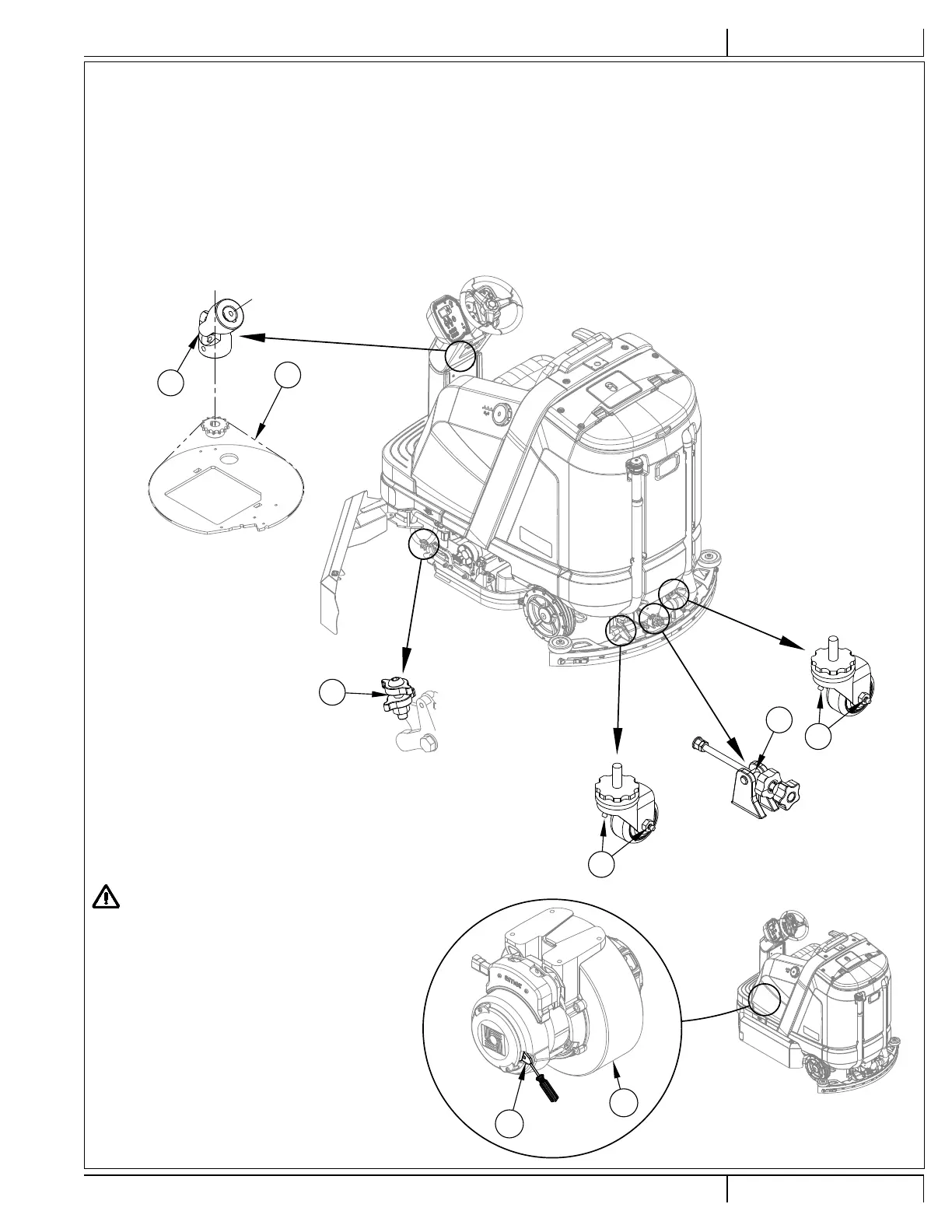

Once a month, pump a small amount of grease into each grease fi tting on the machine until grease seeps out around the bearings. See Figure 10.
ELECTROMAGNETIC BRAKE
CAUTION!
To avoid uncontrolled machine movement, block
the wheels and ensure machine is on a level
surface before disengaging the electromagnetic
brake.
See Figure 11. The Drive Wheel Assembly (4) has a built
in electromagnetic brake that is engaged whenever the
machine power is OFF or the Drive Pedal (3) is not being
pressed, machine in neutral. This brake can be manually
overridden if necessary by inserting a medium to large
screwdriver behind the Yoke (AC) as shown. This should
only be done in the event you need to push or pull the unit.
Grease fi tting locations (or apply grease to) (AA):
• Squeegee Caster Wheel Axle and Pivot
• Steering Wheel Shaft Universal joint
• Steering Chain
• Squeegee mount angle adjustment knob threads
Once a month, apply light machine oil or synthetic
lubricant spray to lubricate (AB):
• Side Blade Down Stop Adjustment Threads
AC
4
FIGURE 11
AA
AA
AA
AB
AA
AA
FIGURE 10
4/2016 A - 23 56091168 - SC6000
ENGLISH - AINSTRUCTIONS FOR USE
