G ENERAL MACHINE TROUBLESHOOTING
FAULT CODE DISPLAY
Any fault codes detected by the controllers will
be displayed on the control panel display as they
occur. If more than one error exists, the display will
sequence through the error codes at one-second
intervals. The error will display as a mechanical
wrench symbol
followed by a four-digit code.
Fault codes are displayed as X-YYY, where
X = system number (1: main board, 2: power
module, 3: drive controller)
YYY = fault code number
For example,
1-101 would be solution
solenoid valve – short.

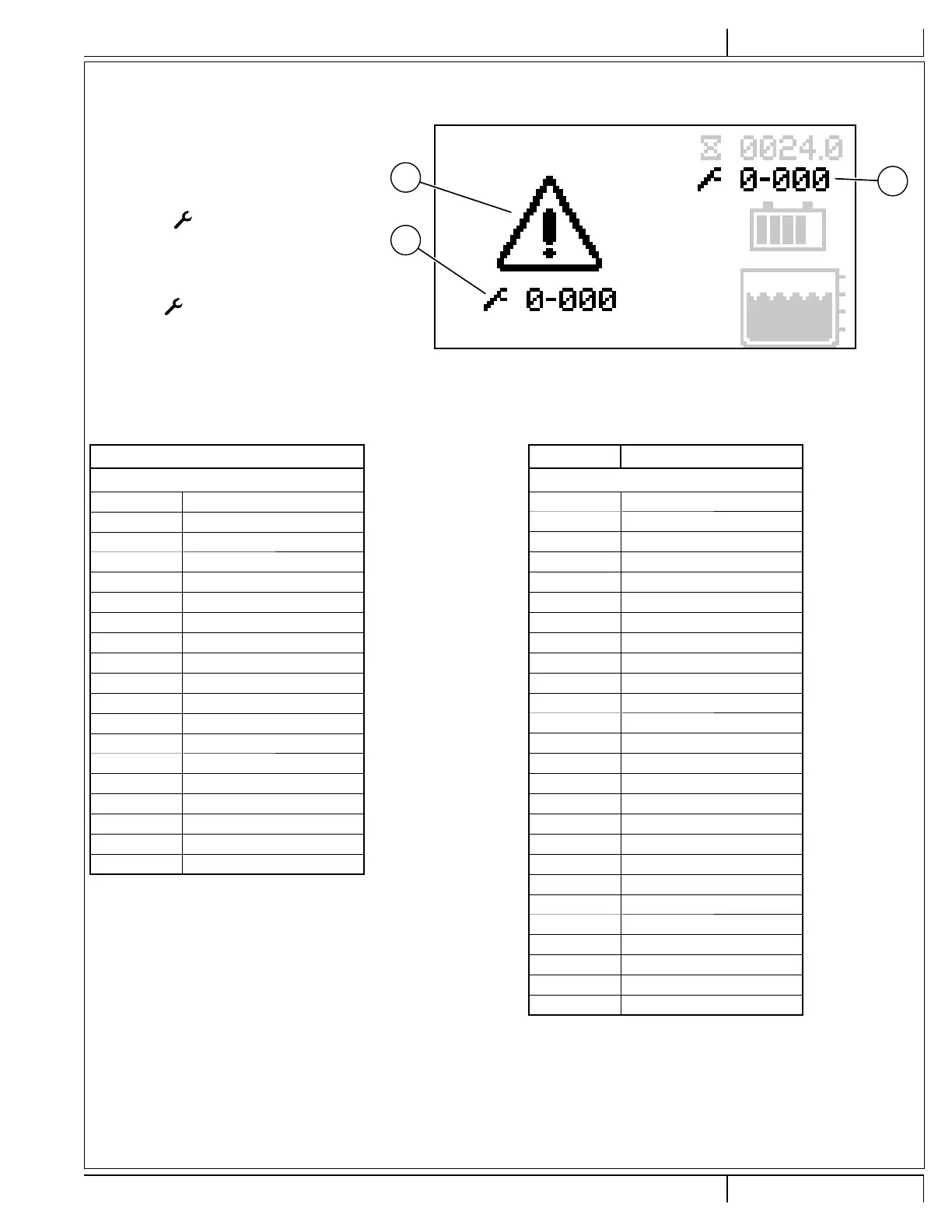

C2 Active Fault Code
C24 Critical Fault Indicator
C25 Fault Code (Critical)
Fault Code Description
E2 Main Controller Faults
1-001 K1 Coil Open
1-002 K1 Coil Short
1-003 K1 Contact Weld
1-010 CAN Bus 0
1-011 CAN Bus 1
1-101 L1 Short
1-102 L2 Short
1-103 H2 Short
1-104 LP1,2 Short
1-105 H1 Short
1-106 M8 Short
1-107 M9 Short
1-201 Level Sensor
1-560 EEPROM Confi guration
1-561 EEPROM Options
1-562 EEPROM Sys Values
1-563 EEPROM Fault Log
1-564 EEPROM User Key List
1-565 EEPROM Impact Log
Fault Code Description
E3 Power Module Faults
2-001 E3 Timeout
2-011 Precharge Fail
2-012 K2 Overload
2-013 K2 Contact Weld
2-014 K2 Contact Open
2-017 OverVolt Cutoff
2-018 UnderVolt Cutoff
2-021 M1 Open
2-022 M2 Open
2-023 M3 Open
2-024 M4 Open
2-025 M5 Open
2-026 M6 Open
2-027 M7 Open
2-028 M10 Open
2-031 M1 Overload
2-032 M2 Overload
2-033 M3 Overload
2-034 M4 Overload
2-035 M5 Overload
2-036 M6 Overload
2-037 M7 Overload
2-038 M10 Overload
2-041 M1 Overcurrent
2-042 M2 Overcurrent
2-043 M3 Overcurrent
C2
C25
C24
4/2016 A - 31 56091168 - SC6000
ENGLISH - AINSTRUCTIONS FOR USE
