Measurement data
If a special low-pass filter designed for measuring digital amplifiers is unavailable, the measurement must be performed with a
current probe and the input signal frequency must be 2kHz.

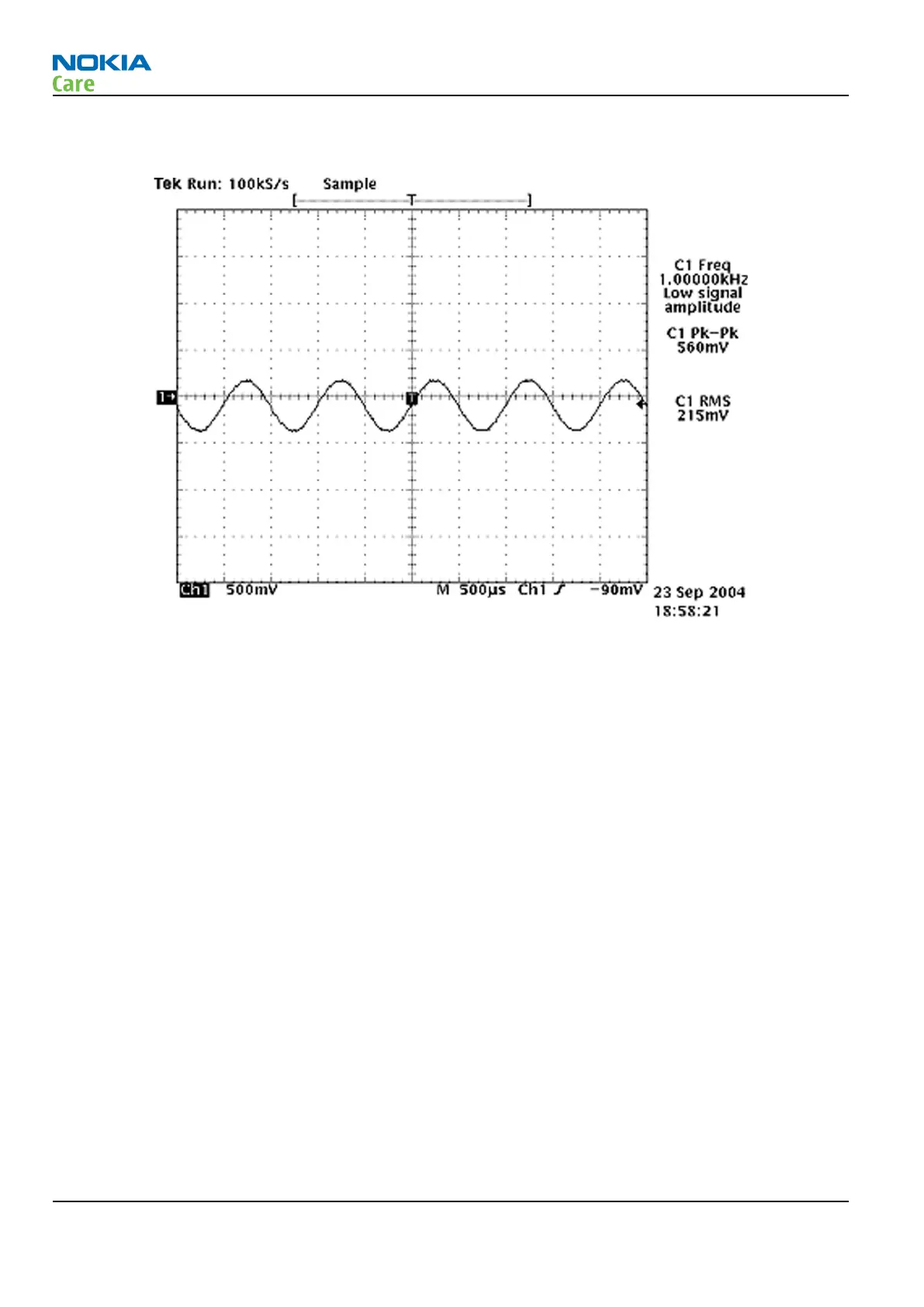

Figure 7 Differential output waveform of the Ext_in_IHF_out out loop measurement when speaker is connected.
RM-781
BB Troubleshooting and Manual Tuning Guide
Page 3 – 40 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
