Notifier AM2020 User Manual

1-16
Installation 15088:K 3/21/01

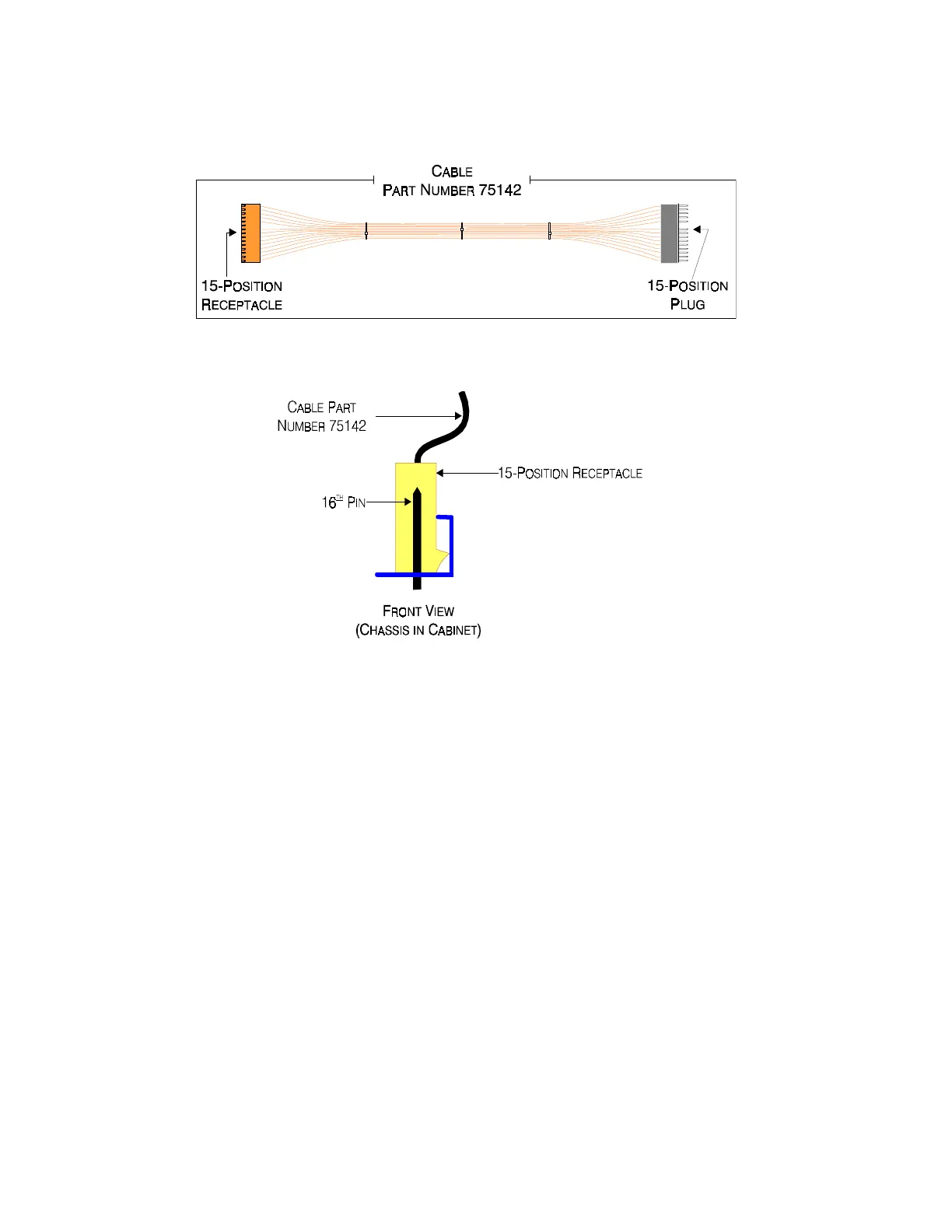

Figure 2.3-6 Cable Part Number 75142
Although cable part number 75142 consists of a 15-pin plug and a 15-position receptacle (Figure 2.3-6) it can
still be mated on the 16-pin plug ICA-4L, only pins one through 15 will engage. The 16th pin will remain on the
outside of the board receptacle (Figure 2.3-7).
Figure 2.3-7 Cable Part Number 75142 Connected to the ICA-4L
Figure 2.3-8 illustrates the installation of a LIB-200, LIB-200A, and/or LIB-400 module in the back right position
of an Interconnect Chassis Assembly (behind the CPU, which is installed later). Installation of boards in the
remaining ICA-4L positions involve a similar procedure.
36 in. (91.44 cm) - expands to fit
up to a CAB-D3 size cabinet
