4.10.2 Outputs - User Option
The Outputs option allows the user to disable or enable
all sounders, the extinguishant system (if fitted), and relay
and control outputs.
To Disable/Enable these outputs, proceed as follows:
1 Using the numeric keypad, press the ‘
2
’ pushbutton
to display the Disable/Enable Outputs menu:
2 Press the appropriate numbered button on the
numeric keypad to display one of the following:
a. Press the ‘
1
’ button to disable/enable all
sounders.
b. Press the ‘
2
’ button to disable/enable all
transmission device outputs.
c. Press the ‘
2
’ button to disable/enable all
Extinguishant System outputs.
d. Press the ‘
3
’ button to disable/enable all Fault
relay outputs.
e. Press the ‘
5
’ button to disable/enable ‘other’
(relays and control) outputs.
3 Press the ‘
5
’ button to confirm the selected
operation. The LCD automatically returns to the
Disable/Enable menu.
When outputs are disabled, the general DISABLEMENT
LED and, if applicable, the FIRE CONTROL O/P: FAULT/
DISABLED, FIRE OUTPUT: FAULT/DISABLED and/or
SOUNDERS: FAULT/DISABLED LEDs illuminate. If the
Extinguishant System is disabled, only the
DISABLEMENT LED will illuminate.

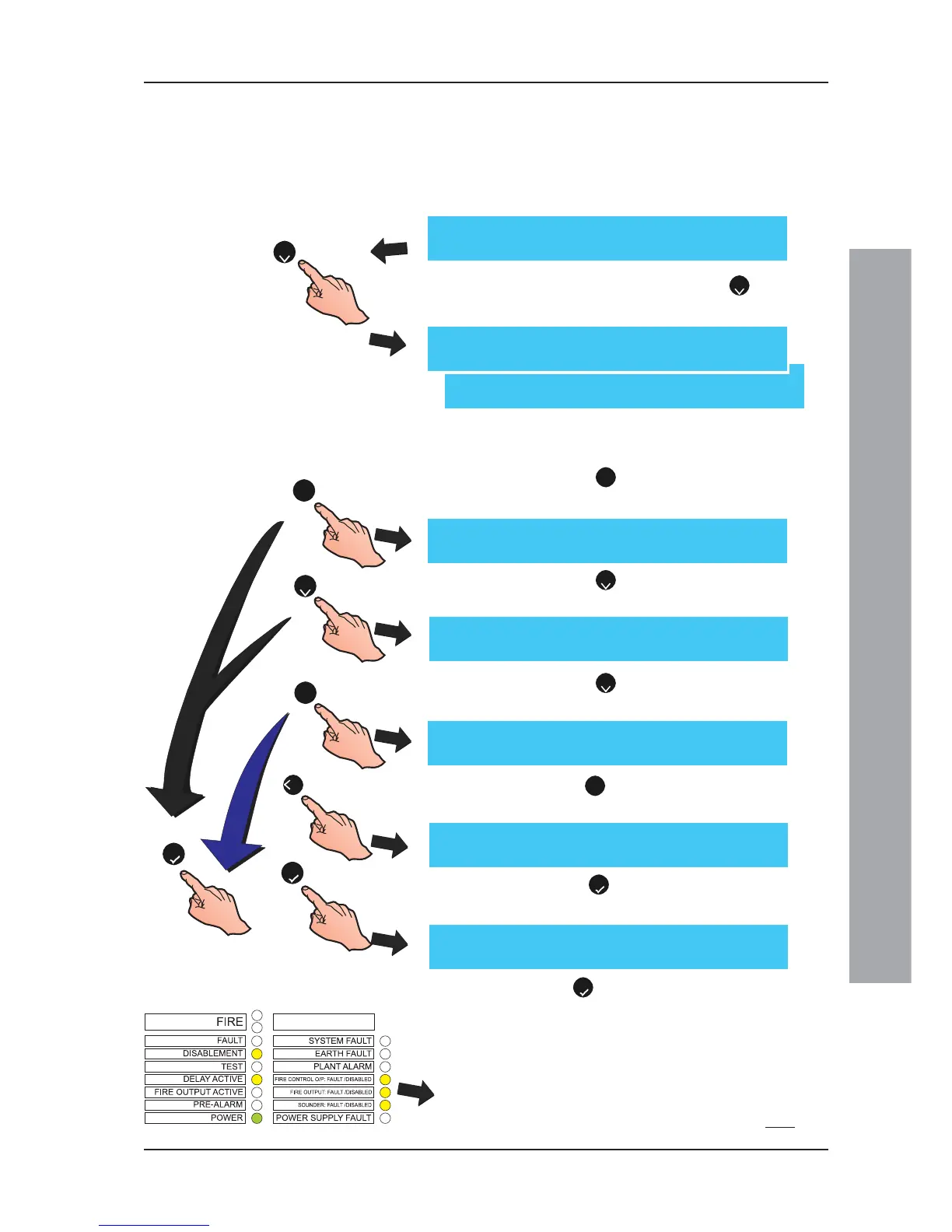

[U0 Disable/Enable] 1:Zone 2:Outputs
3:Day Mode 4:Delays
Disable ALL Sounder Outputs
Press ✓ to confirm <:Cancel
Disable ALL Extinguishant System Outputs
Press ✓ to confirm <:Cancel
1
5
3
2
2
[U0 Disable/Enable] 3:Ext. Systems
4:Fault Relays 5:Others ↕ :More
[U0 Disable/Enable] 1:Sounders
2:Transmission Device Outputs ↕ :More
Disable ALL Transmission Device Outputs
Press ✓ to confirm <:Cancel
4
5
Disable ALL Relay and CTL Outputs
Press ✓ to confirm <:Cancel
Disable ALL Fault Relay Outputs
Press ✓ to confirm <:Cancel
