INA 15092:I 05/30/01
11
SECTION 2 INA MOUNTING CONNECTIONS
2.1 INA CONTROL/DISPLAY PANEL
The INA consists of a board which is factory-mounted to the back of the INA Control/Display Panel (refer to Figure 2.1-
1) using six screws. The ribbon cable from the display is connected to J6 on the INA board. The entire assembly must then
be mounted in an enclosure.

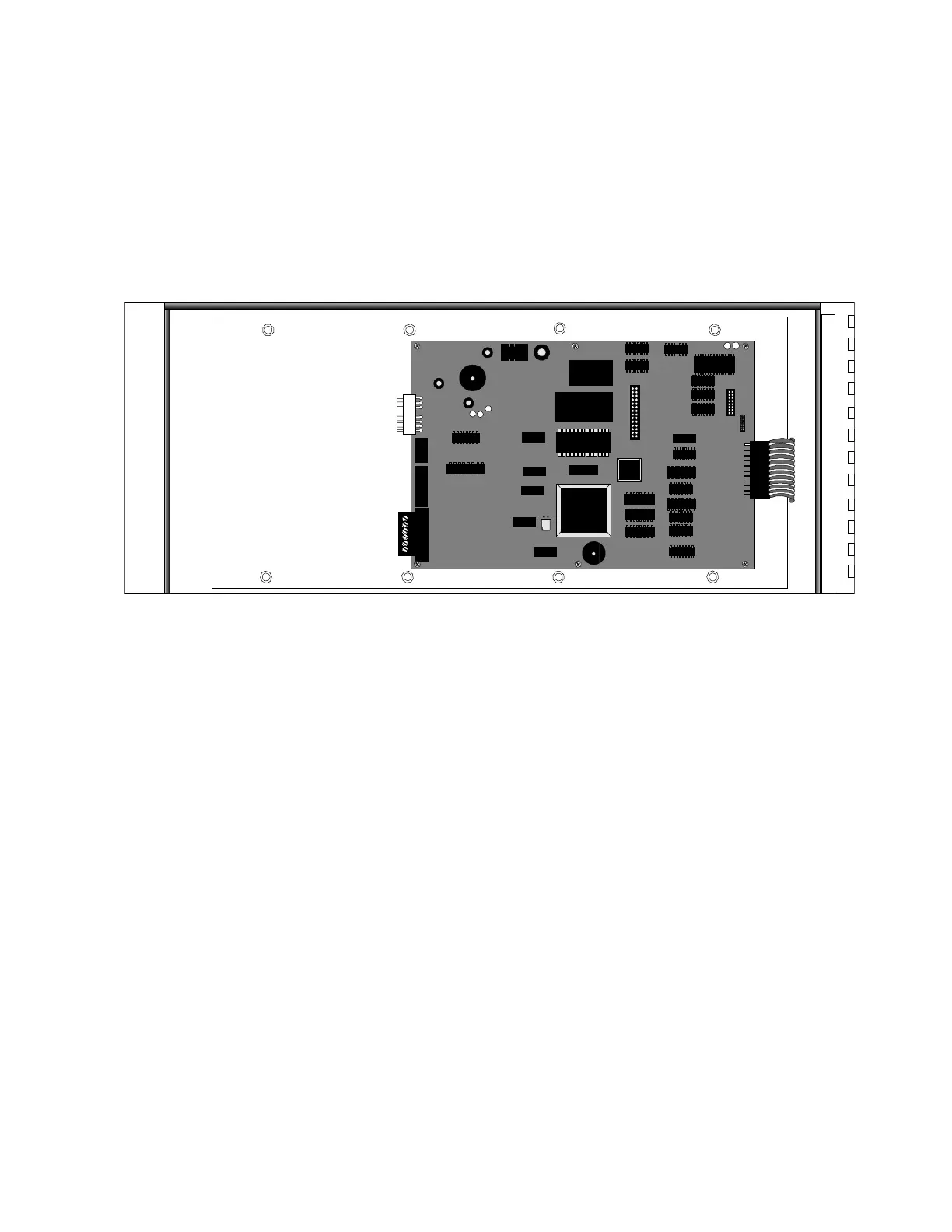

Figure 2.1-1 INA Control/Display Panel
2.2 INA MOUNTING
The enclosures required to mount the INA are listed below and detailed in the following paragraphs.
Cabinet (ABS-4D or ABS-4DR)
Trim Ring (TRABS-4D or TRABS-4DR)
Cabinet (ABF-4)
Cabinet (CAB-3)
19 inch(48.26 cm) Rack Mount - The INA can be mounted to a listed, 19-inch rack. When used with the ADP-4RM rack
mount dress plate, the INA may be connected to a 19-inch (48.26 cm) rack mount cabinet, such as the NOTIFIER RACK-
51 or RACK-67.
Note: Effective September 2000, rack-mounting options have been discontinued.
2.2.1 ABS-4D Cabinet
This cabinet (refer to Figure 2.2.1-1) is available in two colors; the ABS-4D is gray and the ABS-4DR is red. Color is the
only difference, everything else is identical. The cabinet has a hinged door with a key lock (to diminish unauthorized use)
and a transparent LEXAN® window (LEXAN is a registered trademark of GE Plastics, a subsidiary of General Electric
Company). The mounting panel and door are both hinged at the bottom for easy access. Power must be supplied externally
if the cabinet is surface mounted. Knockouts are provided for use with a 1/2-inch (12.7mm) conduit. The height of the
cabinet is 12 inches (30.48 cm), the width is 19-7/8 inches (50.483 cm), and the depth is 3-1/2 inches (8.9 mm). If the cabinet
is a surface mount, the door adds an additional 1-1/4 inches (31.75) to the depth. A trim ring will be required if the cabinet
is a semi-flush mount. The trim ring is available in red (TRABS-4DR) and gray (TRABS-4D) to coordinate with the cabinets.
