III. Installation
1.Heat pump installation
(1) Installation location

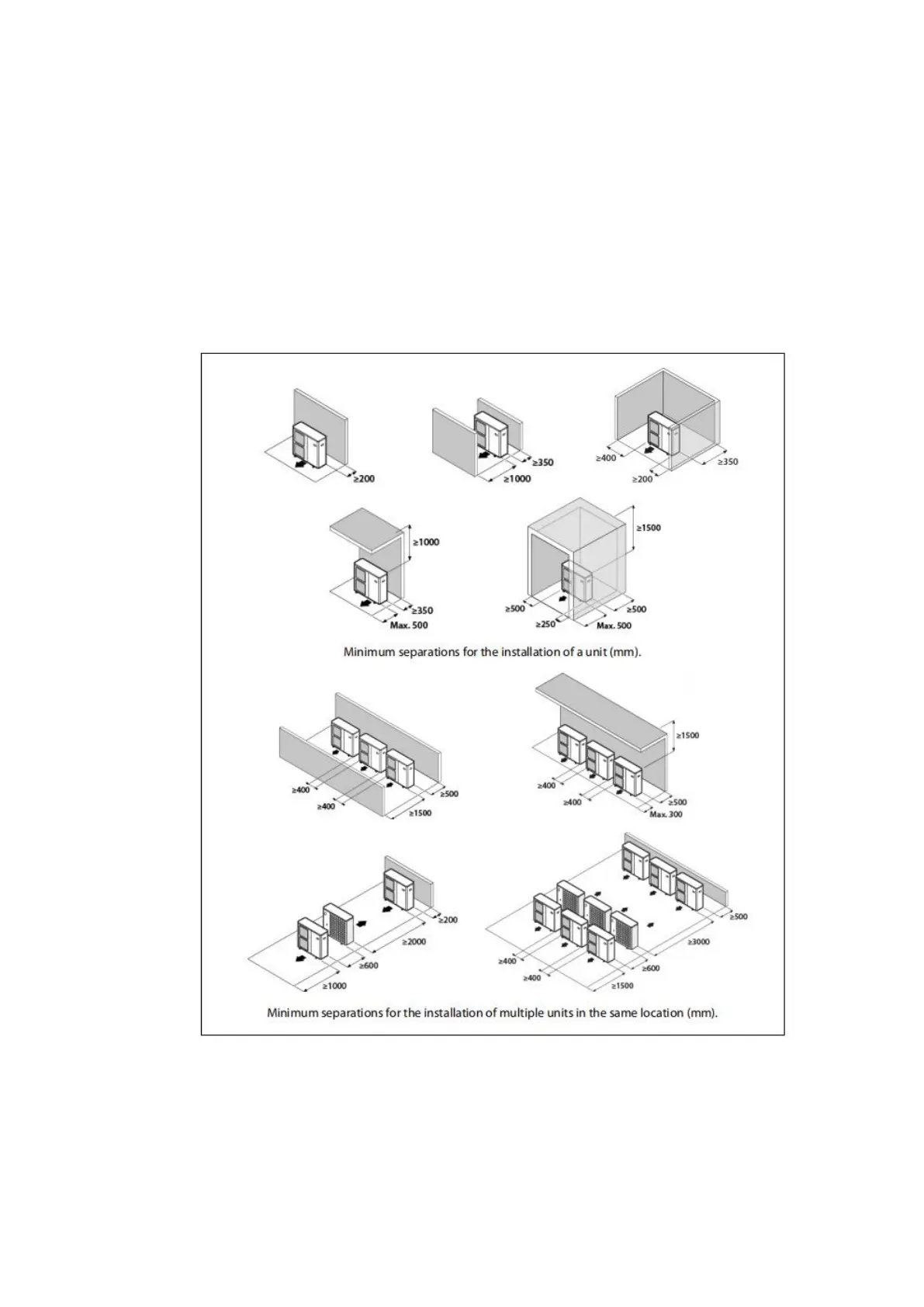

◆The heat pump must be installed exclusively outside the home and, where possible, in a completely
clear area. If a protection is needed around the appliance, it should have wide openings on the 4 sides
and the installation separations indicated in the following figure must be respected. No obstacle should
prevent the circulation of air through the evaporator and the fan outlet.
◆Consult with the user before choosing the location of the device. It should not be placed next to
sensitive walls,such as on the wall next to a bedroom. Make sure that the location of the heat pump is not
disruptive to neighbor (sound level, air currents generated, low temperature of the air blown with risk of
freezing plants in the path, etc.).
