Replacing consumable items > 41
I
MAGE
DRUM
REPLACEMENT
.
The printer contains four image drums: cyan, magenta, yellow and black.
1. Press the cover release and open the printer’s top cover fully.
2. Note the positions of the four cartridges.
3. Holding it by its top centre, lift the image drum, complete with its toner cartridge, up
and out of the printer.
CAUTION!
Static sensitive devices, handle with care.
WARNING!
If the printer has been powered on, the fuser will be hot. This area is
clearly labelled. Do not touch.

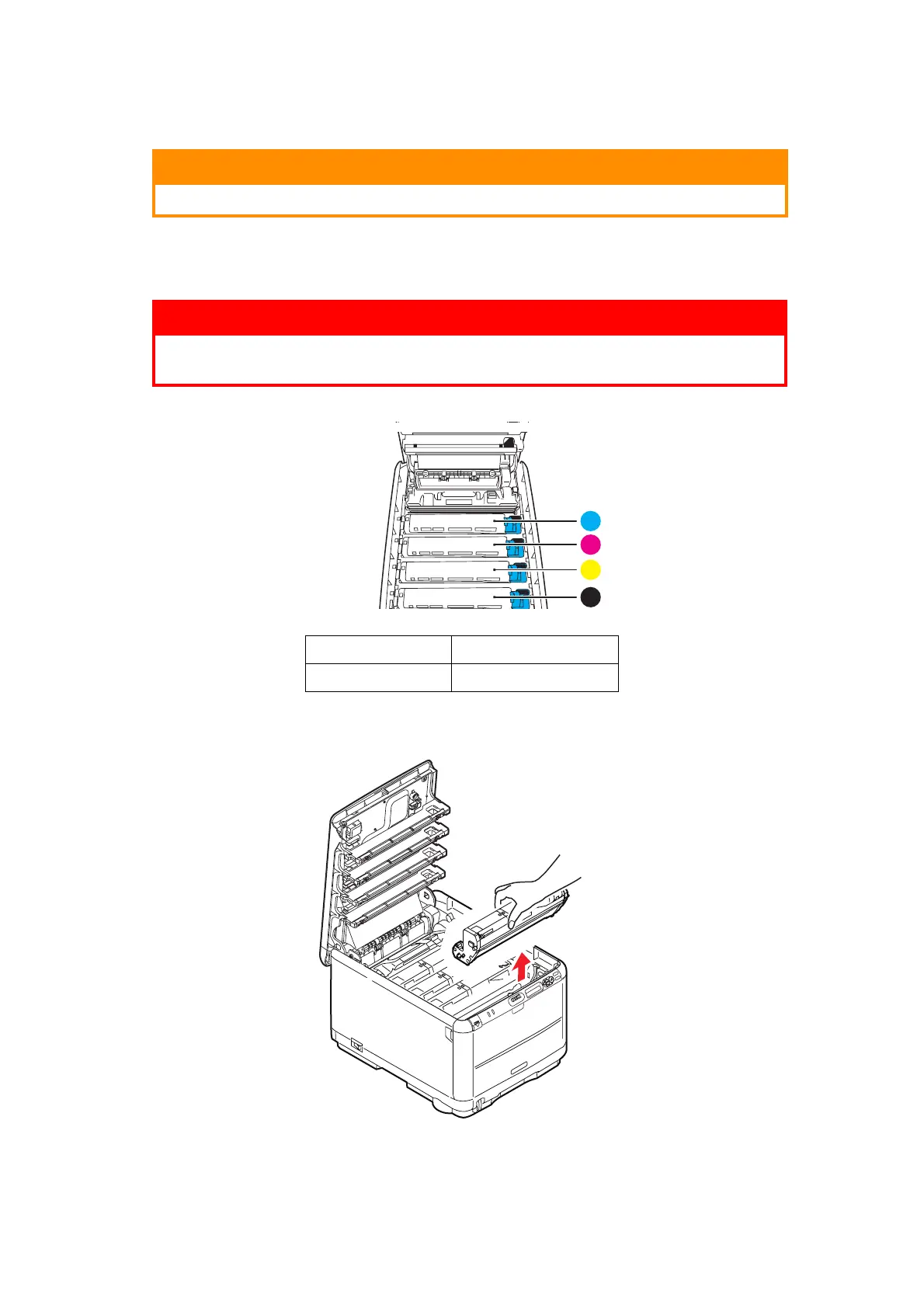

1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
1
2
3
4
