MB280
- 11 -
2 - Installation
Terminal description

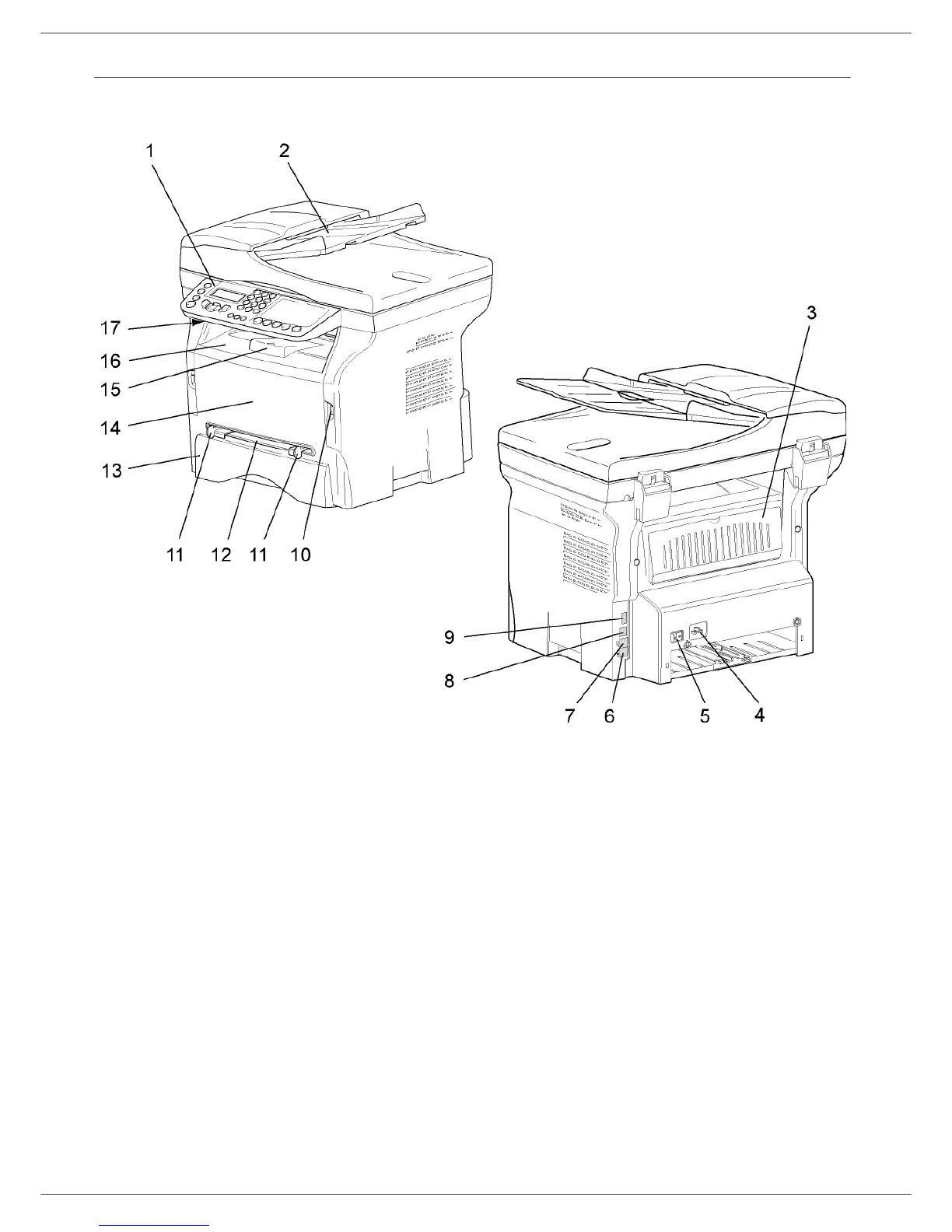

Front and Back sides
1. Control panel
2. Document feeder
3. Paper jam cover
4. Power supply cord connection
5. On/Off switch
6. LINE socket - telephone cable connection
7. EXT. socket - connection for external telephone devices
8. Slave USB connection (for PC)
9. Master USB connection (USB key)
10. Master USB connection (USB key)
11. Manual paper feed setup guides
12. Manual input tray
13. Paper tray
14. Cartridge access cover
15. Fold-down stopper for paper delivery
16. Paper output
17. Smart card insertion point
